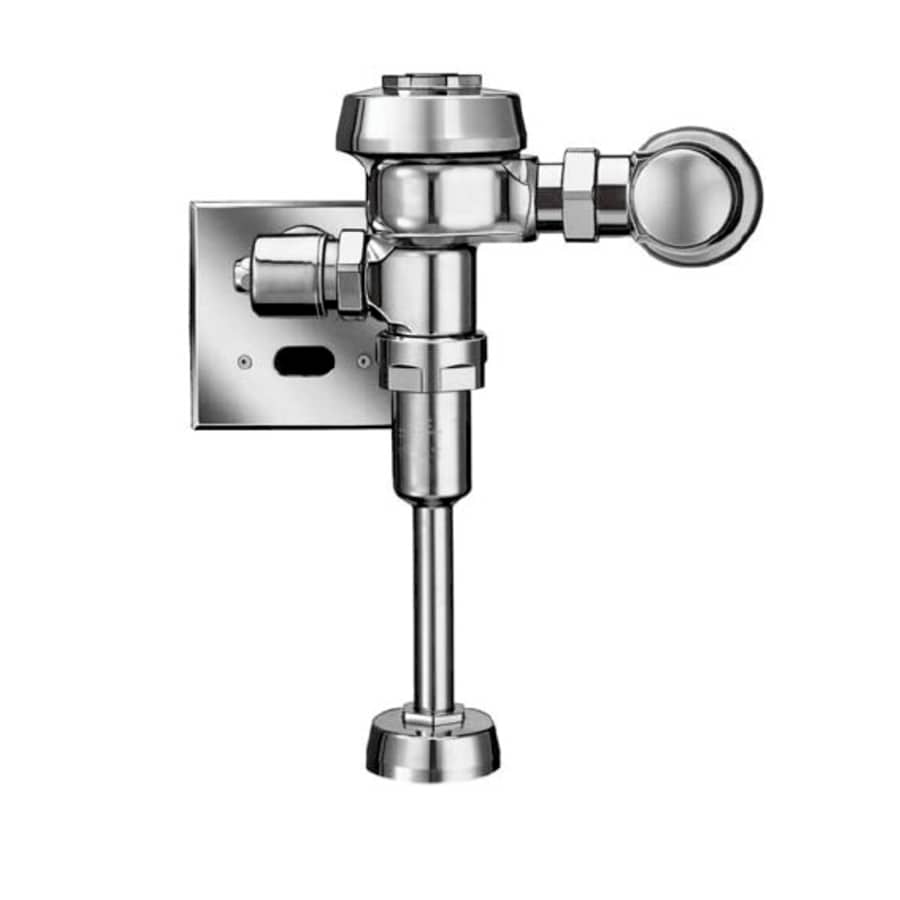

Sloan Exposed, Water Saver (1.5 gpf/5.7 Lpf), Sensor Operated Royal® Model Urinal Flushometer, for 3/4″ top spud urinals.

Exposed, Water Saver (1.5 gpf/5.7 Lpf), Sensor Operated Royal(R) Model Urinal Flushometer, for 3/4″ top spud urinals.

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer for either left or right hand supply.

Features:

Water Saver (1.5 gpf/5.7 Lpf)
PERMEX(tm) Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
OPTIMA(R) EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
Non-Hold-Open Integral Solenoid Operator
Chrome Plated Wall Cover Plate (for 2-gang Electrical Box) with Vandal Resistant Screws
3/4″ I.P.S. Screwdriver Bak-Chek(tm) Angle Stop
Free Spinning Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-Piece Bottom Hex Coupling Nut, Spud Coupling and Flange for 3/4″ Top Spud
Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID(tm) Technology
Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX(tm) Rubber Compound for Chloramine Resistance

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037, ANSI/ASME A112.19.6 and Military Specification V-29193. Installation conforms to ADA requirements.

Automatic:
Sloan OPTIMA(R) equipped Flushometers provide the ultimate in sanitary protection and automatic operation. There are no handles to trip or buttons to push. The Flushometer operates by means of an infrared sensor that adapts to its surrounding. Once the user enters the sensor’s effective range and then steps away, the Flushometer Solenoid initiates the flushing cycle to flush the fixture.
Hygienic:
User makes no physical contact with the Flushometer surface. Helps control the spread of infectious diseases. Twenty-four Hour Sentinel Flush keeps fixture fresh during periods of nonuse.
Economical:
Automatic operation provides water usage savings over other flushing devices. Reduces maintenance and operation costs.
Practical:
Solid state electronic circuitry assures years of dependable, trouble-free operation. The operational components of the Flushometer are identical to a handle operated Regal(R) Flushometer.
Warranty:
3 year (limited)
Made in the U.S.A.

Electrical Specifications:

Control Circuit:
Solid State
24 VAC Input
24 VAC Output
8 Second Arming Delay
24 Hour Sentinel Flush
OPTIMA Sensor Range:
Nominal 15″ – 30″ (381 mm – 762 mm)
Self-adaptive Window: ± 8″ (203 mm)
Solenoid Operator:
24 VAC, 50/60 Hz
Transformer:
Sloan Part #EL-154
120 VAC, 50/60 Hz Primary
24 VAC, 50/60 Hz Secondary
Class II, UL Listed, 50 VA.

Sloan Part #EL-342
240 VAC, 50/60 Hz Primary
24 VAC, 50/60 Hz Secondary
Class II, UL Listed, 50 VA.
