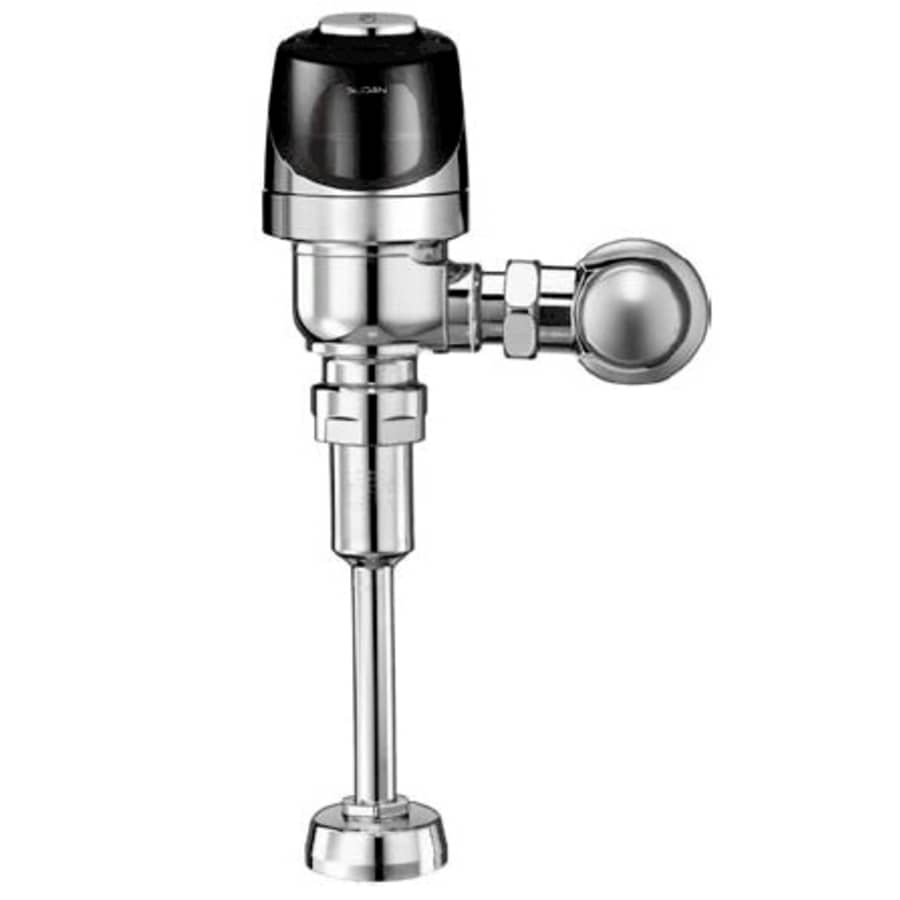

Sloan Exposed, Battery Powered, Low Consumption (1.0 gpf/3.8 Lpf), Sensor Operated G2® Model Urinal Flushometer for 1″ Top Spud Urinals

Exposed, Battery Powered, Low Consumption (1.0 gpf/3.8 Lpf), Sensor Operated G2(R) Model Urinal Flushometer for 1″ top spud urinals

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer for either left or right hand supply.

Low Consumption: 1.0 GPF
PERMEX(tm) Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Flex Tube Diaphragm designed for improved life and reduced maintenance
ADA Compliant OPTIMA Plus(R) Battery Powered Infrared Sensor for automatic “No Hands” operation
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Latching Solenoid Operator
Engineered Metal Cover with replaceable Lens Window
Courtesy Flush(tm) Override Button
Four (4) Size AA Batteries factory installed
“Low Battery” Flashing LED
Infrared Sensor Range Adjustment Screw
Initial Set-up Range Indicator Light (first 10 minutes)
Chrome Plated Metal Handle Cap
1″ I.P.S. Screwdriver Bak-Chek(R) Angle Stop
Free Spinning, Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for 1″ Top Spud
Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID(tm) Technology
Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX(tm) Rubber Compound for Chloramine resistance

Valve Body, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037, ANSI/ASME A112.19.2 and Military Specification V-29193. Installation conforms to ADA requirements.

Electrical Specifications:

Control Circuit:
Solid State
6 VDC Input
8 Second Arming Delay
24 Hour Sentinel Flush
OPTIMA Sensor Type:
Active Infrared
OPTIMA Sensor Range:
Nominal 15″ – 30″ (381 mm – 762mm), Adjustable ± 8″ (203 mm)
Battery Type:
(4) AA Alkaline
Battery Life:
3 Years @ 4,000 Flushes/Month
Indicator Lights:
Range Adjustment/Low Battery
Operating Pressure:
15 – 100 psi (104 – 689 kPa)
Sentinel Flush:
Once Every 24 Hours After the Last Flush

Automatic:
Sloan G2 Optima Plus(R) Flushometers activate via multilobular sensor detection to provide the ultimate in sanitary protection and automatic operation. A battery powered infrared sensor sets the flushing mechanism after the user is detected and completes the flush when the user steps away.
Functional & Hygienic:
Touchless, sensor operation eliminates the need for user contact to help control the spread of infectious
diseases. The G2 Optima Plus Flushometer is provided with an Override Button to allow a “courtesy flush” for individual user comfort.
Economical:
Sloan installed batteries speed installation and provide years of metered flushing to control the use of water and energy. Batteries can be changed without turning off the water.
Warranty:
3 year (limited)
