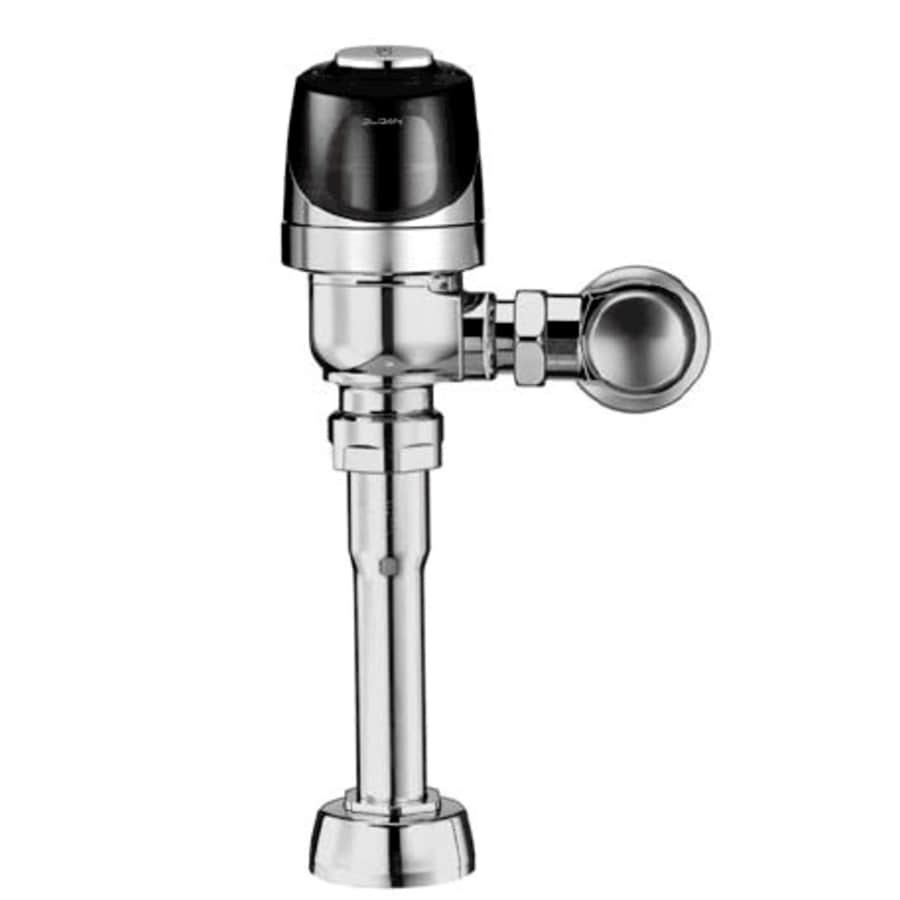

Exposed, Battery Powered, Sensor Operated G2(R) Model Urinal Flushometer.
Low Consumption: 1.0 GPF
High Chloramine Resistant PERMEX(tm) Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action(tm)
ADA Compliant OPTIMA Plus(R) Battery Powered Infrared Sensor for automatic “No Hands” operation
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Latching Solenoid Operator
Engineered Plastic Cover with replaceable Lens Window
Courtesy Flush(tm) Override Button
Four (4) Size AA Batteries factory installed
“Low Battery” Flashing LED
Infrared Sensor Range Adjustment Screw
Initial Set-up Range Indicator Light (first 10 minutes)
Chrome Plated Metal Handle Cap
1″ I.P.S. Screwdriver Bak-Chek(R) Angle Stop
Vandal Resistant Stop Cap
Adjustable Tailpiece
Vacuum Breaker with Flush Connection
Spud Coupling and Spud Flange for 1 1/4″ Top Spud
Sweat Solder Adapter with Cover Tube and Cast Wall Flange
High Copper, Low Zinc Brass Castings for Dezincification Resistance
No External Volume Adjustment to Ensure Water Conservation
Low Consumption Flush Accuracy
Stop Seat and Vacuum Breaker Molded from PERMEX(tm) Rubber Compound for Chloramine Resistance
100% of the energy used in manufacturing is offset with Renewable Energy Sources – Wind Energy
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan G2 Collection
Specifications
| Configuration | Exposed |
| Material | Brass |
| Insulation Type | Urinal |
| Water Efficient | Yes |
| Control Type | Electronic |
| Spud Placement | Top |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| CA Drought Compliant | No |
| Eco Friendly | Yes |
| TX Drought Compliant | No |
| Gallons Per Flush | 1 |
| Spud Size | 1.25 in. |
| Color | Chrome |
| Color Tone | Silver Tones |
