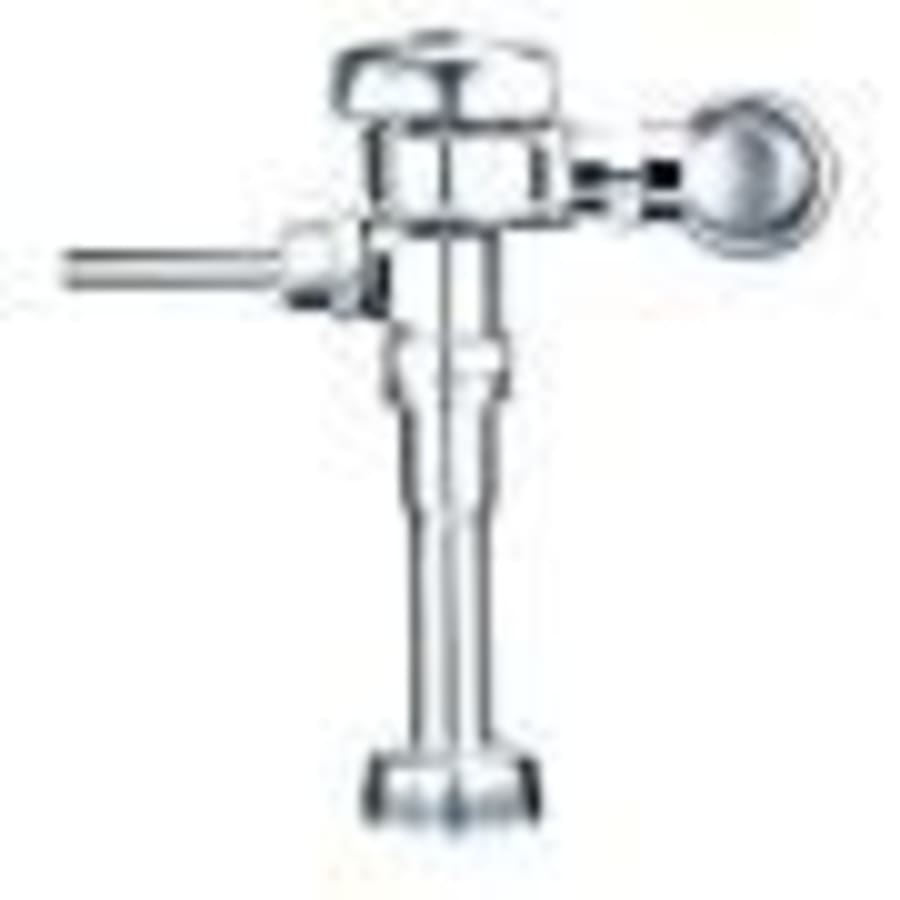

Sloan Exposed, Water Saver (1.5 gpf/5.7 Lpf), Continental® Model Urinal Flushometer for 1-1/4″ top spud urinals.

Exposed, Water Saver (1.5 gpf/5.7 Lpf), Continental(R) Model Urinal Flushometer for 1-1/4″ top spud urinals.

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer

Features:

PERMEX(tm) Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
Elegant Continental style Cover
1″ I.P.S. Screwdriver Bak-Chek(tm) Angle Stop
Free Spinning Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for 1¼” Top Spud
Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID(tm) Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX(tm) Rubber Compound for Chloramine Resistance

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military
Specification V-29193

Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Continental Collection

Specifications
