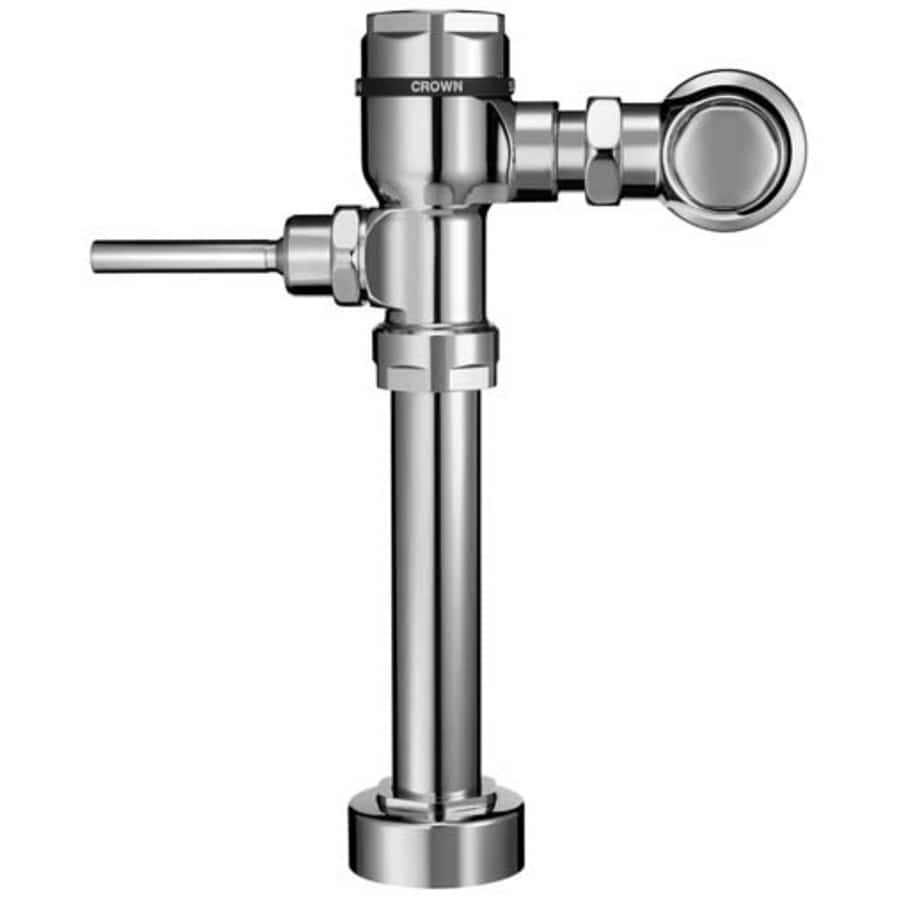

Sloan High Efficiency (1.28 gpf) Exposed, Water Closet Flushometer for floor mounted or wall hung 1-1/2″ top spud bowls. Valve cannot be converted to exceed a low consumption flush (1.6 gpf/6.0 Lpf maximum with piston change)

High Efficiency (1.28 gpf) Exposed, Water Closet Flushometer for floor mounted or wall hung 1-1/2″ top spud bowls. Valve cannot be converted to exceed a low consumption flush (1.6 gpf/6.0 Lpf maximum with piston change)

For floor mounted or wall hung top spud bowls. Valve cannot be converted to exceed a low consumption flush (1 gpf/6.0 Lpf maximum with piston change). Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1.7, ANSI/ASME 1.16, and Military Specification V-291.

Fixed Volume Piston with Filtered O-ring Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
1″ I.P.S. Screwdriver Bak-Chek Angle Stop
Locking Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for 1-1/2″ Top Spud
Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Valve designed to accept Low and Ultra-Low Consumption Pistons only to ensure Water Conservation
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Handle Packing, Main Seat, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
100% of the energy used in manufacturing is offset with Renewable Energy Sources – Wind Energy
