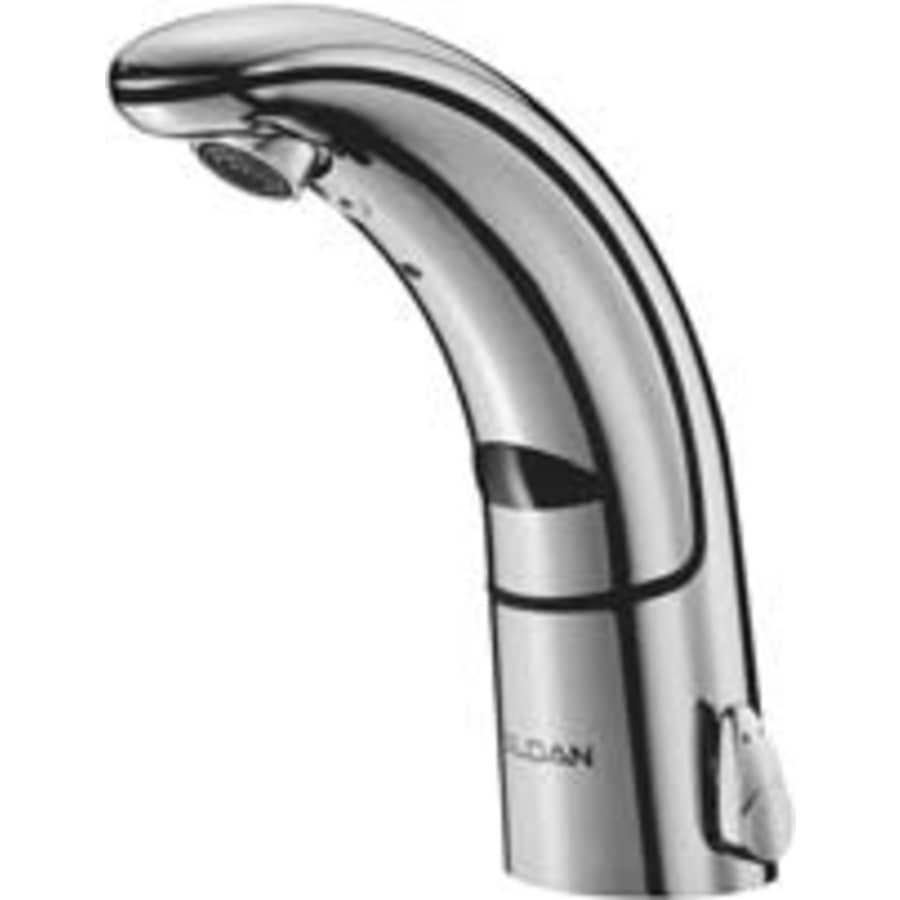

Sensor Activated Electronic Hand Washing Faucet
For pre-tempered or hot and cold water operation. Sloan’s Optima i.q. EAF-100 Series electronic hand washing faucets operate by means of a dual infrared sensor and microprocessor based logic that utilize self-adapting technology to ensure superior performance. The modular design incorporates all of the operating components of the faucet, including the sensor, solenoid and circuitry above the sink within a die-cast metal spout. ISM models feature an integral temperature control lever which allows the user to adjust the water temperature. This adjustment can also be converted to a fixed setting. EAF faucets ordered without the ISM variation must be connected to a single, pretempered water supply. The i.q.-Click feature allows the user to place the faucet into optional function modes, including “continuous run” and “temporary off” simply by pressing a button on the spout. The use of the i.q.-Click feature is recommended only in installations where users have a regular familiarity with the faucet (i.e., executive and non-public rest rooms). Models furnished with the i.q.-Click feature are also available with a Pop Up Drain. Optima EAF-1″ series faucets are powered by a 6 VDC plug-in transformer.
Modular One-piece Construction with all Concealed Components above deck
Double Infrared Sensors with Automatic Setup and Indicator Light
Automatic Self-adapting Sensor Technology
Magnetic Solenoid Valve
Water Supply Connection with Flexible High-pressure Hose and Strainer
6 Volt DC Plug-in Transformer Included
Appropriate Mounting Hardware included
Optional 24 Hour Sentinel Activation
Plug-in Transformer
Integral Spout Mixer
IQ-Click Control allows users to select between “continuous run” and “temporary off” simply by pressing a button on the spout
Optima I.Q. Variations:
EAF-100-P-ISM CP – hot/cold supply – No IQ Feature
EAF100-P CP (IQ) – pre-tempered water (single supply line) w/ IQ feature
EAF100-P-ISM-IC CP (IQ) – hot/cold supply w/ IQ feature
EAF100-P-ISM-DPU-IC CP (IQ) – hot/cold supply w/ IQ feature and pop-up drain
Optional Accessories:
ETF-607-A – Trim plate for 3-hole, 4″ centers (centerset) installations
ETF-608-A – Trim plate for 3-hole, 8″ centers (widespread) installations
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Optima Plus Collection
Specifications
| Height | 6.88 in. |
| Width | 2.38 in. |
| Length | 5.56 in. |
| Product Weight | 5 lbs. |
| Faucet Centers | 0 in. |
| Flow Rate (GPM) | 1.5 |
| Max Deck Thickness | 1.5 in. |
| Spout Height | 6, 6.875 in. |
| Spout Reach | 5.56, 5.563 in. |
| Overflow Height | 6.875 in. |
| Thermostat | Transitional |
| Material | Metal |
| Faucet Holes | 1 |
| Mounting Type | Single Hole |
| Electronic | Yes |
| Number Of Handles | 1 |
| Valve Type | Solenoid |
| Faucet Type | Bathroom Sink Faucet |
| Spout Style | High Arc |
| Sensor Type | IR |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| CA Drought Compliant | No |
| Low Lead Compliant | Yes |
| WaterSense Certified | No |
| Drain Assembly Included | No |
| Escutcheon Included | No |
| Handshower Included | Yes |
| Valve Included | Yes |
| Mixing Valve | Yes |
| Public Temperature Control | Yes |
| Power Source | Plug-In |
| Transformer Type | Plug-In |
| Color | Chrome |
| Color Tone | Silver Tones |
