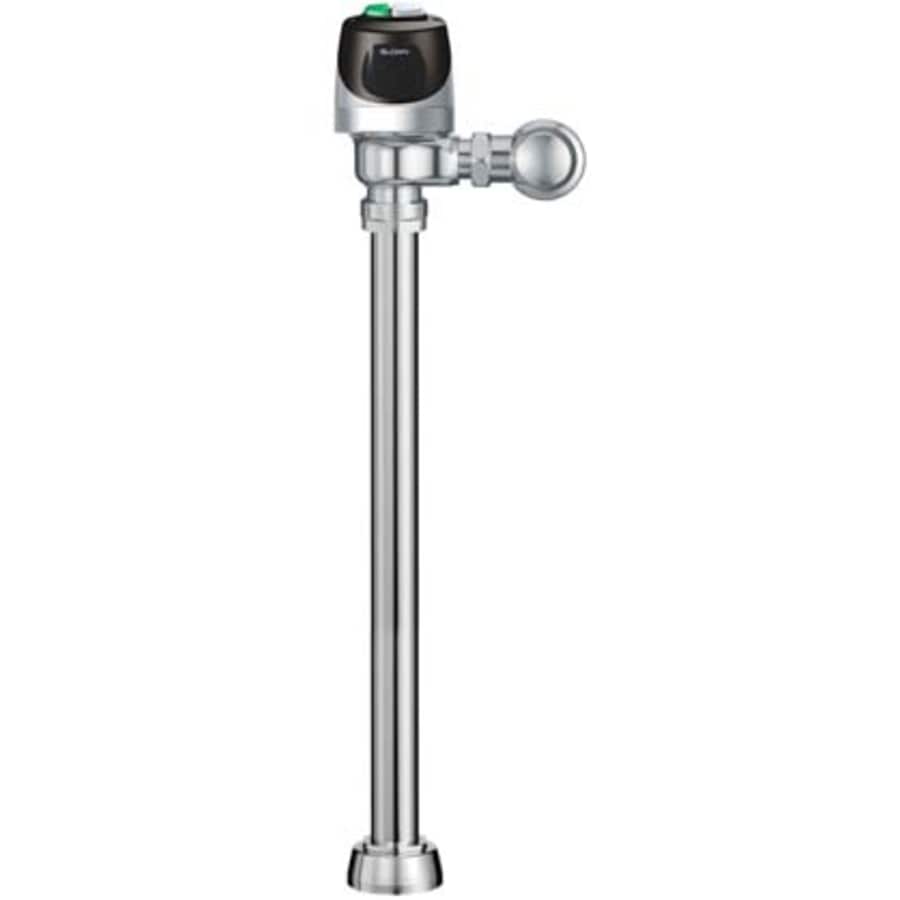

Sloan Exposed, Battery Powered, Sensor Activated Sloan ECOS™ Electronic Dual Flush Model Water Closet Flushometer for floor mounted or wall hung top spud bowls. Full Flush Large Button 1.6 GPF

Sensor Activated Sloan ECOS Electronic Dual Flush Model Water Closet Flushometer
If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1-1/gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1″ gallon of water
If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full flush initiates (1 gpf/6.0 Lpf) eliminating solid waste and paper
Reduces water volume by up to 30% when a reduced flush occurs
PERMEX Synthetic Rubber Diaphragm with twin linear filtered bypass and vortex cleansing action
Flex Tube Diaphragm designed for improved life and reduced maintenance
ADA Compliant Sloan ECOS Electronic Dual Flush Battery Powered Infrared Sensor for automatic “No Hands” operation
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Latching Solenoid Operator
Engineered Metal Cover with replaceable Lens Window
User friendly three (3) second Flush Delay
Courtesy Flush Override Button
Four (4) Size AA Batteries factory installed
“Low Battery” Flashing LED
Infrared Sensor Range Adjustment Screw
Initial Set-up Range Indicator Light (first 1″minutes)
Chrome Plated Metal Handle Cap
1″ I.P.S. Screwdriver Bak-Chek Angle Stop
Free Spinning, Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-piece
Bottom Hex Coupling Nut
Spud Coupling and Flange for 1″ Top Spud
Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set Screw
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID Technology
Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX
Water Conserving 1.6gpf
