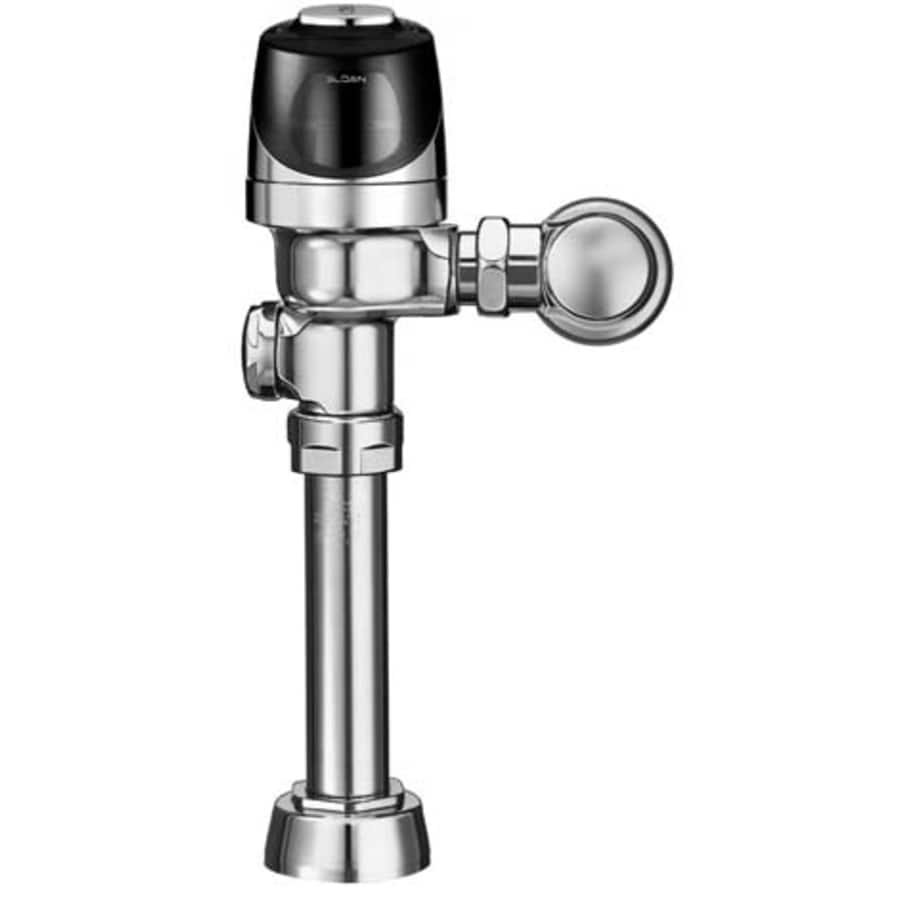

Sloan High Efficiency (1.28 gpf) Exposed, Battery Powered, Sensor Operated G2® Model Water Closet Flushometer for floor mounted or wall hung 1-1/2″ top spud bowls.

High Efficiency (1.28 gpf) Exposed, Battery Powered, Sensor Operated G2(R) Model Water Closet Flushometer for floor mounted or wall hung 1-1/2″ top spud bowls.
PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Flex Tube Diaphragm designed for improved life and reduced maintenance
ADA Compliant OPTIMA Plus Battery Powered Infrared Sensor for automatic “No Hands” operation
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Latching Solenoid Operator
Engineered Metal Cover with replaceable Lens Window
User friendly three (3) second Flush Delay
Courtesy Flush Override Button
Four (4) Size AA Batteries factory installed
“Low Battery” Flashing LED
Infrared Sensor Range Adjustment Screw
Initial Set-up Range Indicator Light (first 1″minutes)
Chrome Plated Metal Handle Cap
1″ I.P.S. Screwdriver Bak-Chek Angle Stop
Free Spinning, Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for 1″ Top Spud
Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID Technology
Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX
Rubber Compound for Chloramine resistance
100% of the energy used in manufacturing is offset with Renewable
Energy Sources – Wind Energy

Note: Valve may not function with all bowls. Be sure to verify flow requirements with bowl manufacturer.
