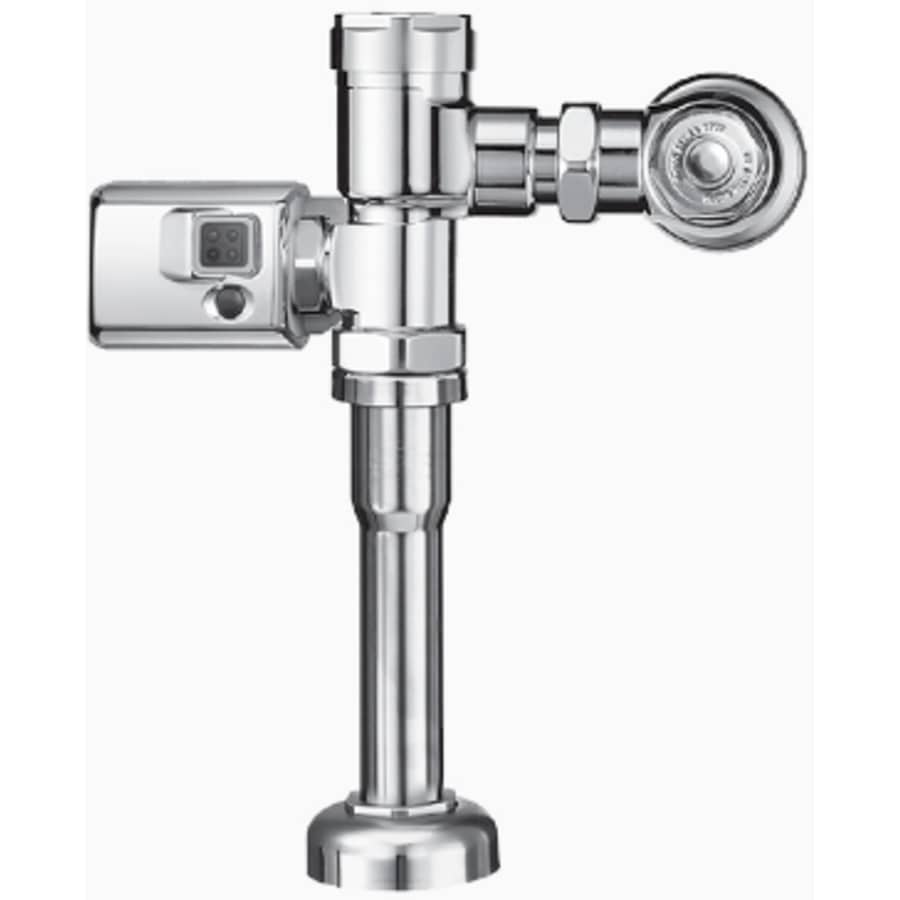

Sloan 3.5 GPF Exposed, Battery Powered, Sensor Activated Optima® Flushometer for Floor Mounted or Wall Hung 1-1/4″ Top Spud Urinals

GEM-2 180 XL SMO Features:

1-1/4″ top spud placement
Constructed of semi-red brass, ensuring durability
Vacuum breaker flush connection
Chrome plated infrared sensor housing
Diaphragm, stop seat and vacuum breaker molded from PERMEX® rubber compound for Chloramine resistance
ADA compliant – complies with the standards set forth by the Americans with Disabilities Act
Battery Life: 3 years (4,000 flushes per month)

GEM-2 180 XL SMO Technologies/Benefits

Automatic Operation: Sloan OPTIMA SMO equipped Flushometers provide the ultimate in sanitary protection and automatic operation. There is no need for AC hookups or wall alterations. The Flushometer operates by means of a battery powered infrared sensor. Once the user enters the sensor’s effective range and then steps away, the Side Mount Unit initiates the flushing cycle to flush the fixture.

Economical: Automatic operation provides water usage savings over other flushing devices. Reduces maintenance and operation costs. Installation does not require turning off water to the valve.

Hygenic: User makes no physical contact with the Flushometer surface except to initiate the Override Button when required. Helps control the spread of infectious diseases.

GEM-2 180 XL SMO Electrical Specifications:

Flow Rate: 3.5 gallons-per-flush
Operating Input Voltage: 6
Operating Pressure: 15-100 psi (104 – 689 kPa)
Spud Placement: Top
Spud Connection Size: 1-1/4
Battery Life: 3 years (4,000 flushes per month)
Battery Type: 4 C Alkaline
