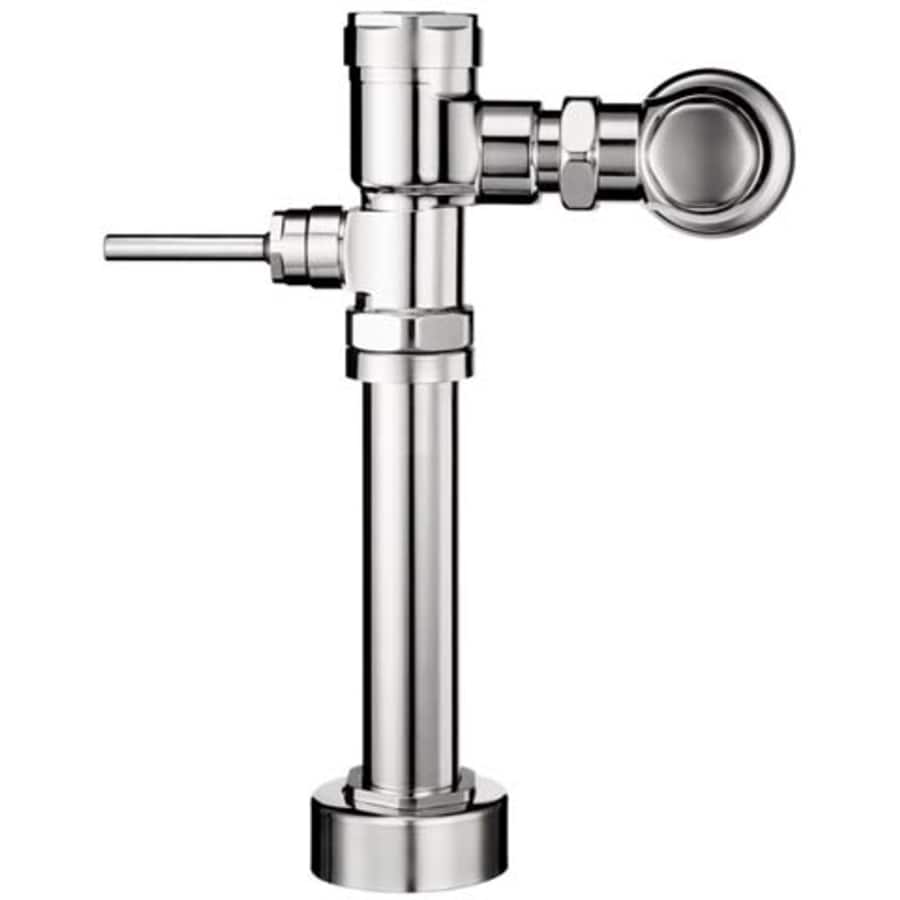

Exposed Water Closet Flushometer
For floor mounted or wall hung top spud bowls. Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1.7, ANSI/ASME A1½”, and Military Specification V-291.
Fixed Volume Piston with Filtered O-ring Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle
1″ I.P.S. Screwdriver Bak-Chek Angle Stop
Locking Vandal Resistant Stop Cap
Adjustable Tailpiece
Vacuum Breaker Flush Connection
Spud Coupling, Wall and Spud Flanges for 1″ Top Spud
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
Handle Packing, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine Resistance
Sweat Solder Adapter & Cast Wall Flange with Set Screw
Bumper on Angle Stop
Sweat Adapter, Cast Set Screw Wall Flange & Casing Tube
Angle Stop Bumper
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Gem-2 Collection
Specifications
| Insulation Type | Toilet |
| Configuration | Exposed |
| Control Type | Manual |
| Spud Placement | Top |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| CA Drought Compliant | No |
| Eco Friendly | No |
| TX Drought Compliant | No |
| Product Weight | 5.7 lbs. |
| Gallons Per Flush | 1.6 |
| Spud Size | 1.5 in. |
| Color | Chrome |
| Color Tone | Silver Tones |
