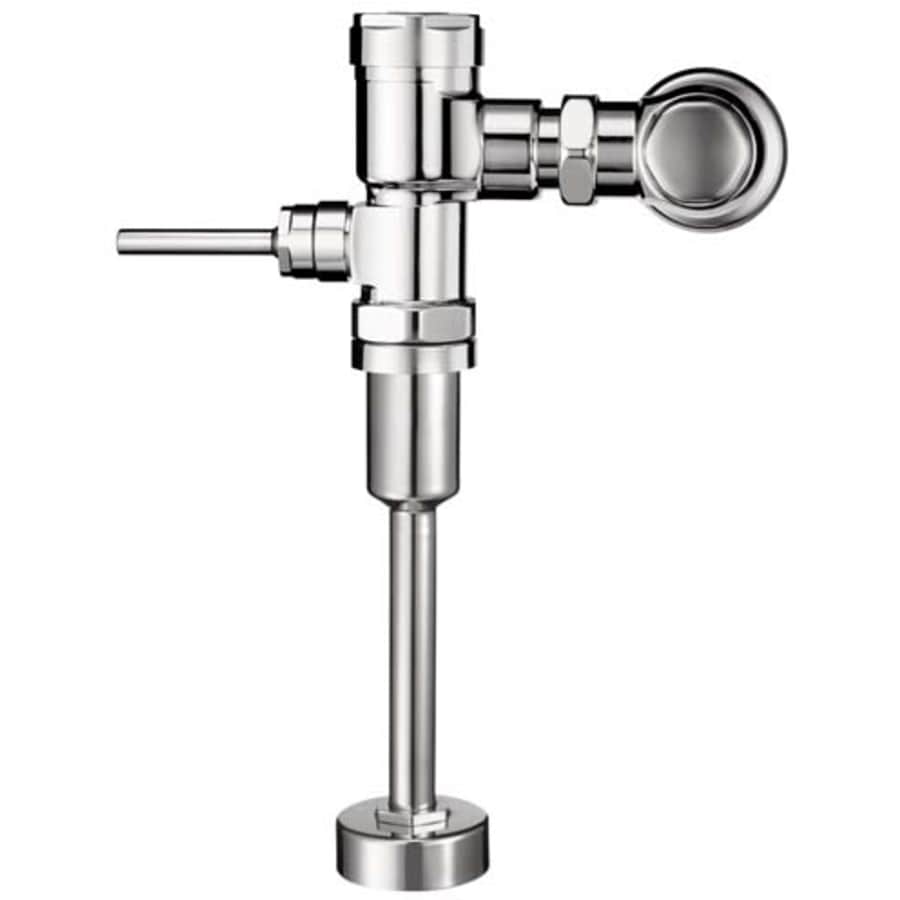

Exposed, Water Saver (1.5 gpf/5.7 lpf) Urinal Flushometer for 3/4″ top spud urinals with Sweat Solder Adapter Kit & Cast Wall Flange with Set Screw
For 3/4″ top spud urinals. Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1.7, ANSI/ASME A1½”, and Military Specification V-291.
Fixed Volume Piston with Filtered O-ring Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle
3/4″ I.P.S. Screwdriver Bak-Chek Angle Stop
Locking Vandal Resistant Stop Cap
Adjustable Tailpiece
Vacuum Breaker Flush Connection
Spud Coupling, Wall and Spud Flanges for 3/4″ Top Spud
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
Handle Packing, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine Resistance
Sweat Solder Adapter Kit & Cast Wall Flange with Set Screw
Sweat Adapter, Stamped Wall Flange & Casing Tube
Cast Set Screw Wall Flange for iron pipe
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Gem-2 Collection
Specifications
| Product Weight | 5.7 lbs. |
| Gallons Per Flush | 3.5 |
| Spud Size | .75, 1.5 in. |
| Insulation Type | Urinal |
| Configuration | Exposed |
| Control Type | Manual |
| Spud Placement | Top |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| CA Drought Compliant | No |
| Eco Friendly | No |
| TX Drought Compliant | No |
| Color | Chrome |
| Color Tone | Silver Tones |
