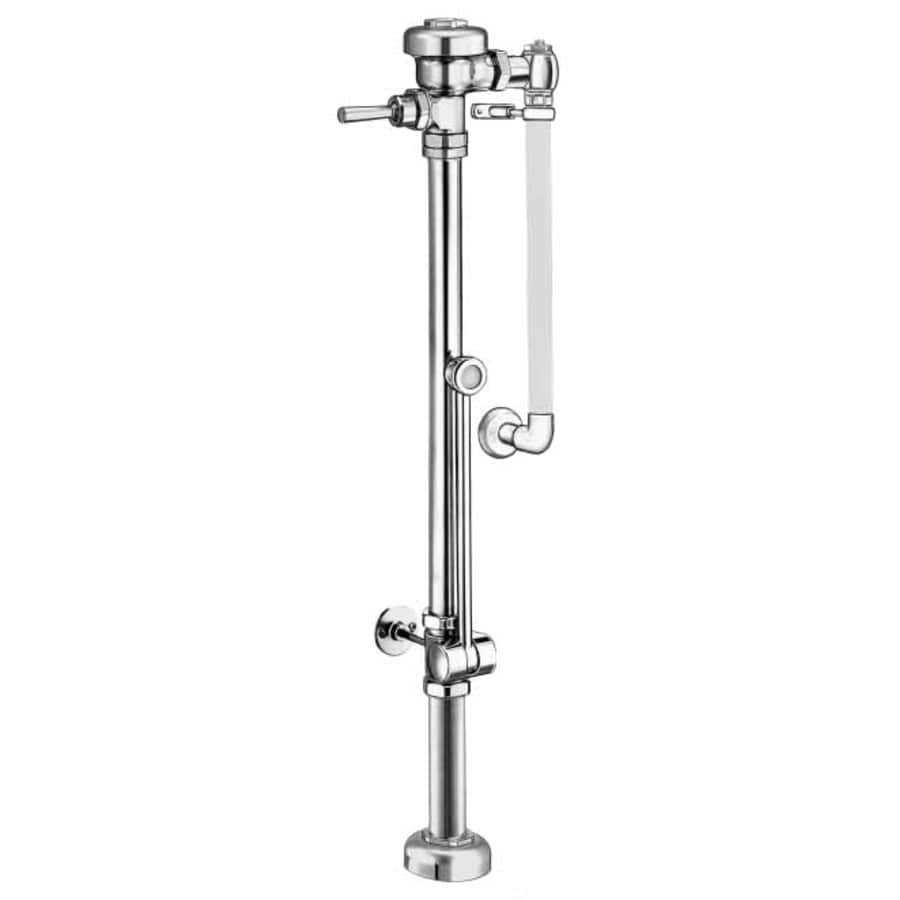

Slimline Bedpan Washer Regal Water Closet Flushometer
For floor mounted or wall hung top spud bowls. Includes Elbow and Pipe Support for installation when replacing an existing Flushometer with a lower water supply rough-in height (pipe between Elbow and Angle Stop supplied by others). Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1.7, ANSI/ASME 1.16, and Military Specification V-291.
Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX rubber compound for Chloramine resistance
Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
1″ I.P.S. Screwdriver Bak-ChekAngle Stop
1″ I.P.S. Chrome Plated Elbow and Solid Ring Pipe Support
Adjustable Tailpiece
Vandal Resistant Stop Cap
Spud Coupling and Flange for 1″ Top Spud
Vacuum Breaker Flush Connection
Low Consumption flush accuracy controlled by Para-Flo Inside Parts Kit
Solid One-piece Body Construction
Solid Brass Spray Arm
Counter Balanced Pivot Assembly
Diverter Valve Wall Support
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Regal Collection
Specifications
| Approved for Commercial Use | Yes |
| ADA | Yes |
| CA Drought Compliant | No |
| Eco Friendly | No |
| TX Drought Compliant | No |
| Insulation Type | Toilet |
| Configuration | Exposed |
| Control Type | Manual |
| Spud Placement | Top |
| Product Weight | 14.4 lbs. |
| Gallons Per Flush | 3.5 |
| Spud Size | 1.5 in. |
| Bedpan Attachment | Yes |
| Color | Chrome |
| Color Tone | Silver Tones |
