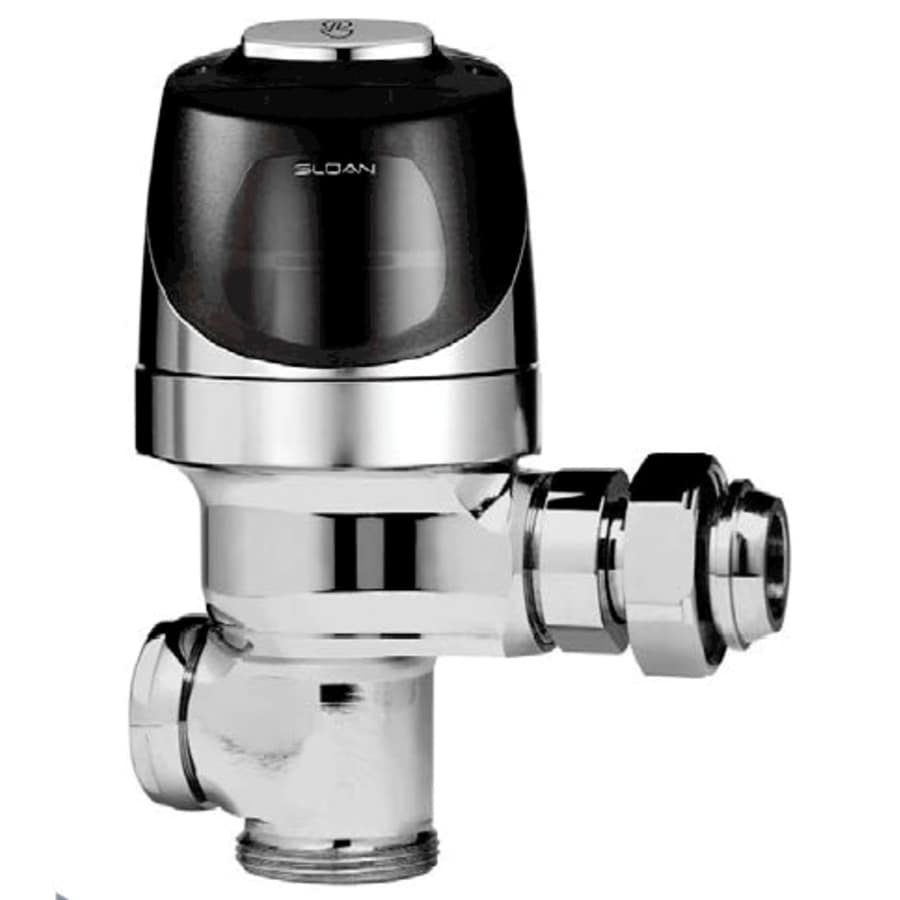

Sloan Battery Powered, Sensor Operated Sloan G2 Model Retrofit Conversion Kit for Exposed Closet Flushometers

Quiet, Exposed, OPTIMA Plus(R), Battery Powered, Sensor Activated Closet Flushometer Retrofit Conversion Kit for Adjustable Ground Joint Tailpiece Connection

Battery Powered, Sensor Activated, Sloan(R) Optima(R) Plus Model Retrofit Conversion Kit for Exposed Closet Flushometers that includes a Valve Body with an Adjustable Ground Joint Tailpiece Connection. Designed to replace Coyne and Delany valves without replacing supply stop and vacuum breaker.

Features:

High Chloramine Resistant PERMEX(tm) Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action(tm)
ADA Compliant OPTIMA Plus(R) Battery Powered Infrared Sensor for automatic “No Hands” operation
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Latching Solenoid Operator
Engineered Plastic Cover with replaceable Lens Window
User friendly three (3) second Flush Delay
Courtesy Flush(tm) Override Button
Four (4) Size AA Batteries factory installed
“Low Battery” Flashing LED
Infrared Sensor Range Adjustment Screw
Initial Set-up Range Indicator Light (first 10 minutes)
Valve Body with a Ground Joint Tailpiece
High Copper, Low Zinc Brass Castings for Dezincification Resistance
No External Volume Adjustment to Ensure Water Conservation
Low Consumption Flush Accuracy
Chrome Plated Metal Handle Cap
Installation Tools Provided
100% of the energy used in manufacturing is offset with Renewable Energy Sources – Wind Energy

Valve Body, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037, ANSI/ASME A112.19.2 and Military Specification V-29193. Installation conforms to ADA requirements.

ADA Compliant
Automatic
Sloan OPTIMA Plus(R) equipped Flushometers provide the ultimate in sanitary protection and automatic operation. There is no need for AC hookups or wall alterations. The Flushometer operates by means of a battery powered infrared sensor. Once the user enters the sensor’s effective range and then steps away, the Flushometer Solenoid initiates the flushing cycle to flush the fixture.
Hygienic
User makes no physical contact with the Flushometer surface except to initiate the Override Button when
required. Helps control the spread of infectious diseases.
Economical
Automatic operation provides water usage savings over other flushing devices. Reduces maintenance and operation costs.
Warranty
3 year (limited)

Electronic Specifications:

Control Circuit
Solid State
6 VDC Input
8 second Arming Delay
3 second Flush Delay
OPTIMA Sensor Type
Active Infrared
OPTIMA Sensor Range
Nominal 22″-42″ (559 mm-1067 mm), adjustable ± 8″ (203 mm)
Battery Type
Four (4) AA Alkaline
Battery Life
3 years @ 4,000 flushes/month
Indicator Lights
Range Adjustment/Low Battery
Operating Pressure
15-100 psi (104-689 kPa)
Sentinel Flush
Once Every 24
