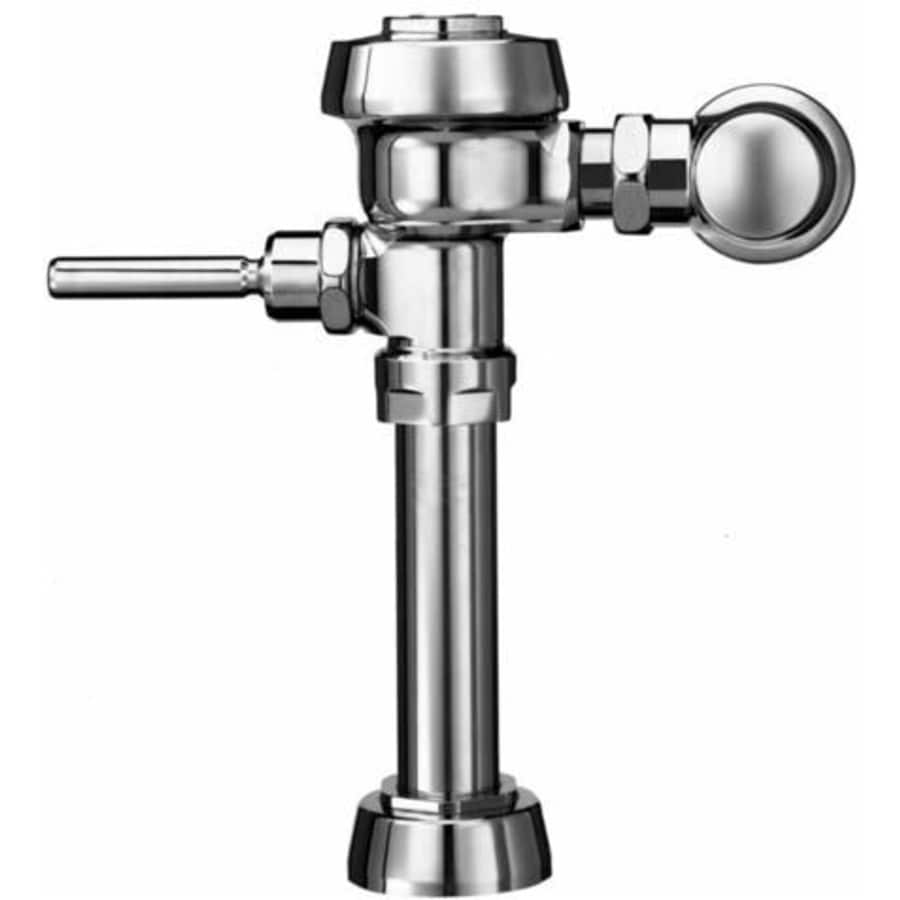

Sloan Exposed Water Closet Flushometer, for floor mounted or wall hung top spud bowls. Water Saver 3.5 GPF with 3″ Metal Oscillating Push Button on Front of Valve and a Bumper on Angle Stop (for open front seat without cover)

Exposed Water Closet Flushometer

For floor mounted or wall hung top spud bowls. Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer. Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1.7 and ANSI/ASME A1½”.

PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
3″ Metal Oscillating Push Button on front of Valve (does not meet ADA requirements)
1″ I.P.S. Screwdriver Bak-Chek Angle Stop
Free Spinning Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for 1″ Top Spud
Sweat Solder Adapter w/Cover Tube & Cast Wall Flange w/Set Screw
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
1″% of the energy used in manufacturing is offset with Renewable Energy Sources – Wind Energy
3″ Metal Oscillating Push Button on front of valve
Angle Stop Bumper
