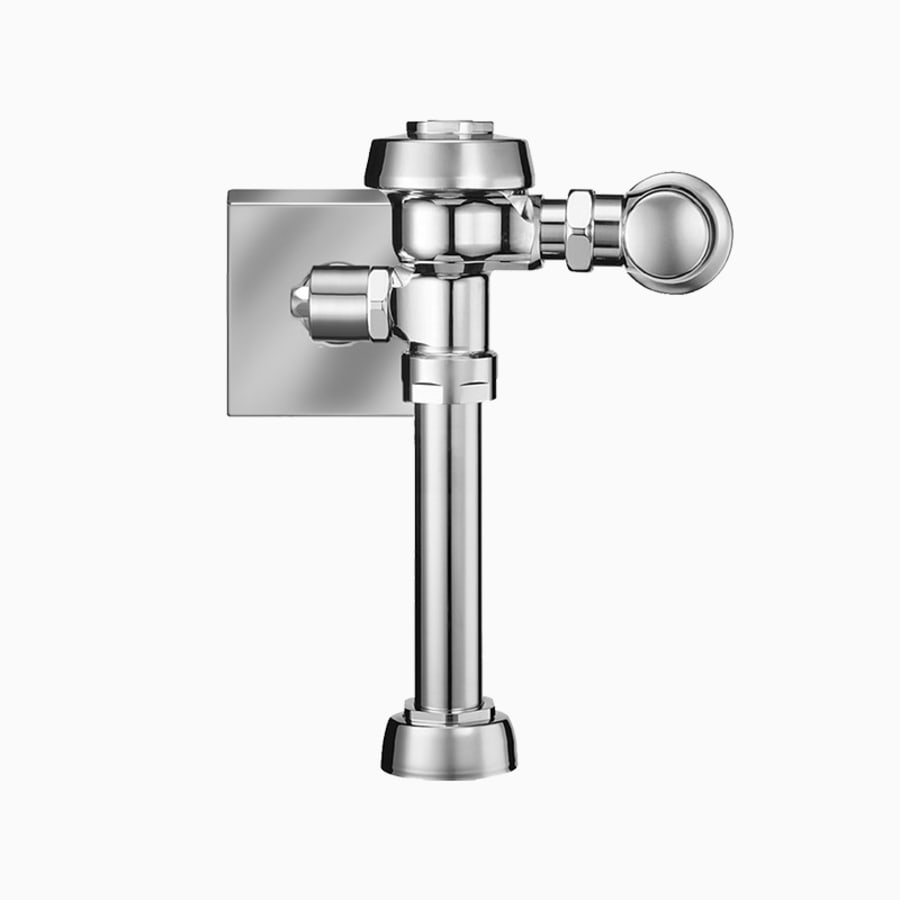

Sloan Royal 111 ES 1.6 GPF Flushometer Valve for Wall Hung or Top Spud Bowls – Less Electronic Push Button

Royal 111 ES 120V Features:

Constructed from high copper, low zinc brass castings for dezincification resistance
Three (3) second flush delay for ease of use
ADA compliant – complies with the standards set forth by the Americans with Disabilities Act
Flex tube dual filtered bypass designed for improved life and reduced maintenance
1″ I.P.S. screwdriver Bak-Chek® angle stop
Free spinning vandal resistant stop cap
Adjustable tailpiece
High back pressure vacuum breaker flush connection with one-piece bottom hex coupling nut
Spud coupling and flange for 1-1/2″ top spud
Sweat solder adapter with cover tube and cast wall flange with set screw
Non-hold-open integral solenoid, fixed metering bypass and no external volume adjustment to ensure water conservation
Flush accuracy controlled by CID® technology
Diaphragm, stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
Solenoid wall flange (for 2-gang electrical box)
Flushometer is activated remotely by any 120 volt momentary push button (not included)
Covered under manufacturer’s 3 year limited warranty
Manufactured proudly in the USA

Royal 111 ES 120V Specifications:

Flow Rate: 1.6 gallons-per-flush
Operating Input Voltage: 120
Spud Placement: Top
Hardwired: Yes
Spud Connection Size: 1-1/2″
I.P.S. Measurement: 1″
