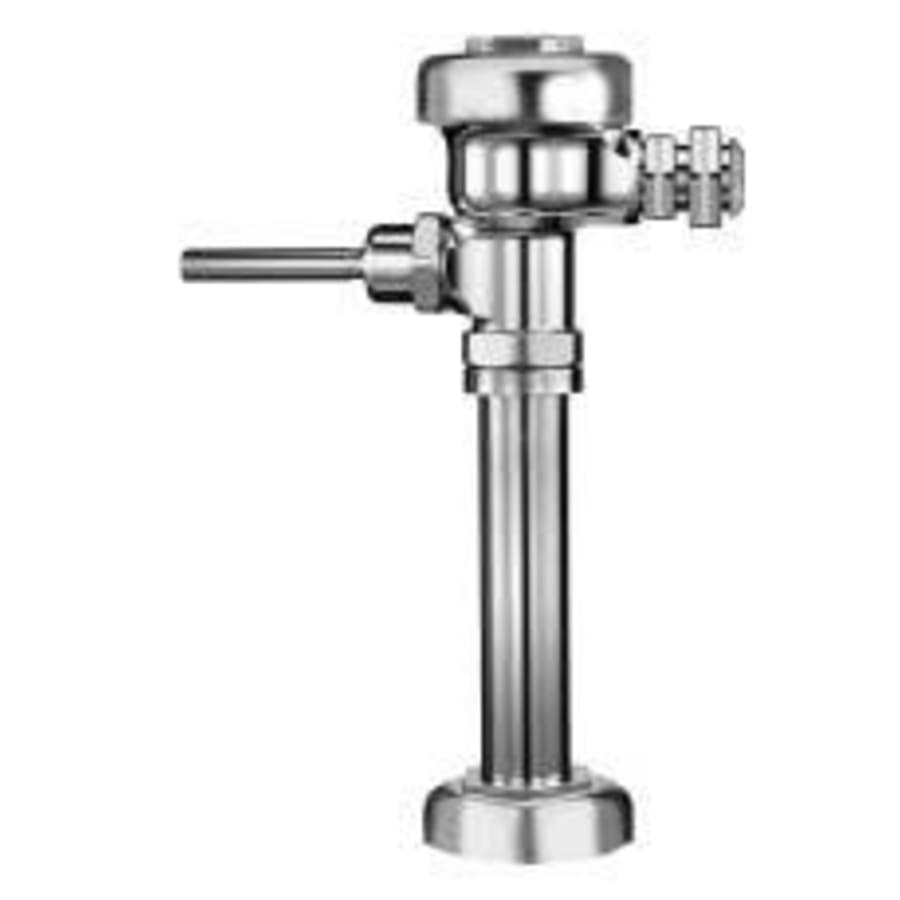

Sloan Low consumption (1.6 gpf) Exposed Water Closet Flushometer with Adjustable Ground Joint Tailpiece, for floor mounted or wall hung 1-1/2″ top spud bowls.

Low Consumption (1.6 gpf) Exposed Water Closet Flushometer with Adjustable Ground Joint Tailpiece, for floor mounted or wall hung 1-1/2″ top spud bowls.

The Flushometer replaces existing valves that incorporate Ground Joint Tailpiece connections without having to replace the supply Control Stop. Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer.

Features:

PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
Adjustable Ground Joint Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for 1-1/2″ Top Spud
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX? Rubber Compound for Chloramine Resistance

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance
with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in
compliance to the applicable sections of ASSE 1037, ANSI/ASME
112.19.6, and Military Specification V-29193.
