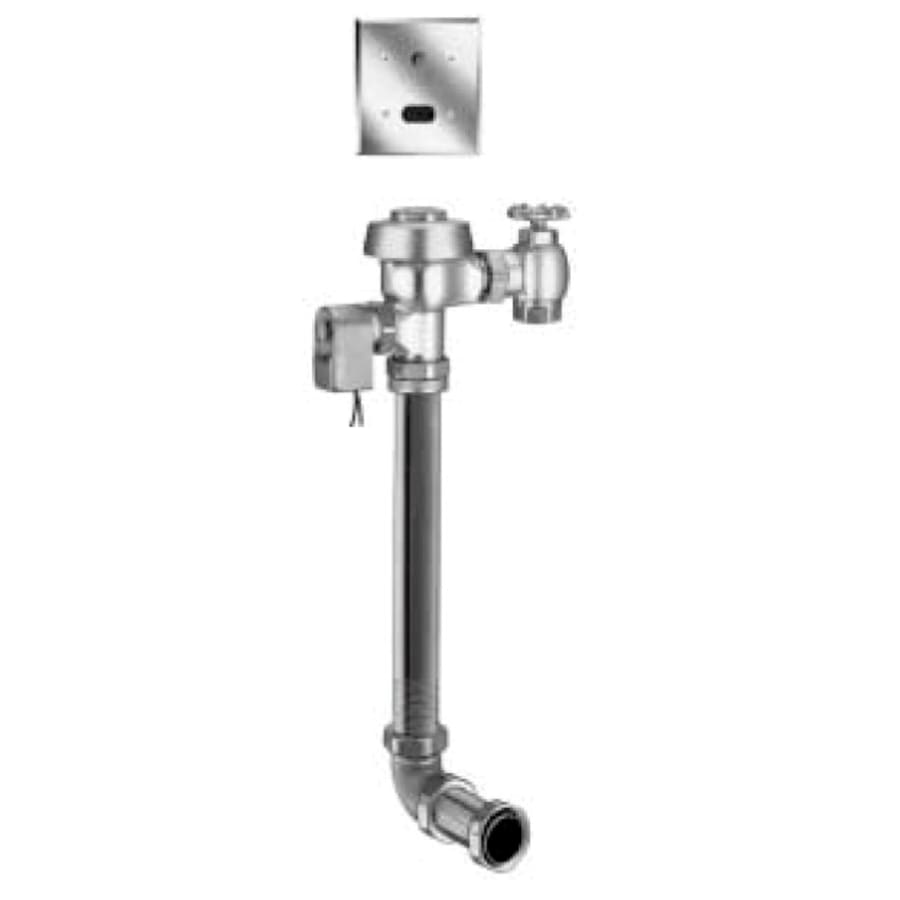

Sloan Concealed, Low Consumption (1.6 gpf/6.0 Lpf), Sensor Operated Royal® Model Water Closet Flushometer, for floor mounted back 1-1/2″ spud bowls with exposed back spud.

Concealed, Low Consumption (1.6 gpf/6.0 Lpf), Sensor Operated Royal(R) Model Water Closet Flushometer, for floor mounted back 1-1/2″ spud bowls with exposed back spud.

Quiet, Concealed, Diaphragm Type, Rough Brass Closet Flushometer

Features:

Low Consumption: 1.6 GPF
PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
OPTIMA(R) EL-1500-L Self-Adaptive Infrared Sensor with Indicator Light
User friendly three (3) second Flush Delay
Courtesy Flush. Override Button
Non-Hold-Open Integral Solenoid Operator
Chrome Plated Wall Cover Plate (for 2-gang Electrical Box) with Vandal Resistant Screws
1. I.P.S. Wheel Handle Bak-Chek. Angle Stop
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection and Spud Coupling for 1½. Concealed Back Spud
Sweat Solder Adapter
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID. Technology
Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance

Automatic:
Sloan OPTIMA(R) equipped Flushometers provide the ultimate in sanitary protection and automatic operation. There are no handles to trip or buttons to push. The Flushometer operates by means of an infrared sensor that adapts to its surrounding. Once the user enters the sensor’s effective range and then steps away, the Flushometer Solenoid initiates the flushing cycle to flush the fixture.
Hygienic:
User makes no physical contact with the Flushometer surface except to initiate the Override Button when
required. Helps control the spread of infectious diseases. 24-Hour Sentinel Flush keeps fixture fresh during periods of nonuse.
Economical:
Automatic operation provides water usage savings over other flushing devices. Reduces maintenance and operation costs.
Practical:
Solid state electronic circuitry assures years of dependable, trouble-free operation. The operational components of the Flushometer are identical to a handle activated Royal(R) Flushometer, proven by 90 years of experience.
Warranty:
3 year (limited)
Made in the U.S.A.

Electrical Specifications:

Control Circuit:
Solid State
24 VAC Input
24 VAC Output
8 Second Arming Delay
3 Second Flush Delay
24-Hour Sentinel Flush
OPTIMA Sensor Range:
Nominal 22″ – 42″ (559 mm – 1067 mm)
Self-adaptive Window ± 10″ (254 mm)
Solenoid Operator:
24 VAC, 50/60 Hz
Transformer:
Sloan Part #EL-154
120 VAC, 50/60 Hz Primary
24 VAC, 50/60 Hz Secondary
Class II, UL Listed, 50 VA.
