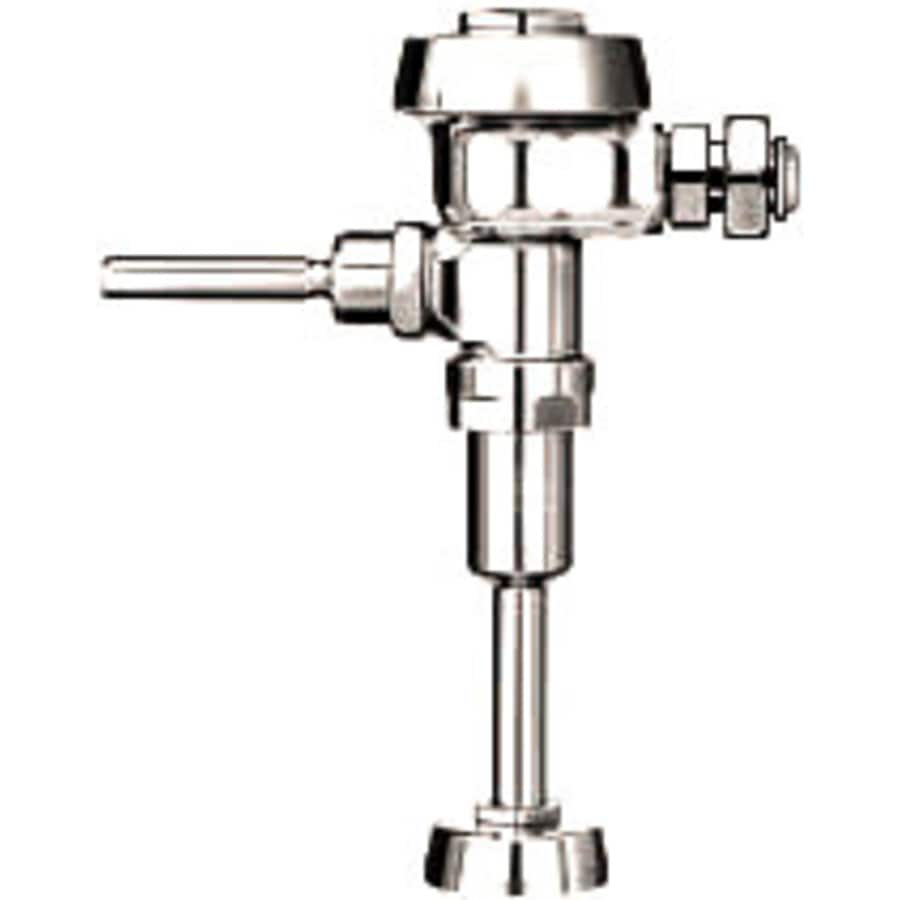

Water Saver (1.5 gpf) Exposed Urinal Flushometer with Adjustable Ground Joint Tailpiece, for 3/4″ top spud urinals.
Model 188 XD Water Saver (1.5 gpf/5.7 Lpf)
PERMEX(tm) Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
Adjustable Ground Joint Tailpiece (control stop not included)
High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for ¾” Top Spud
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID(tm) Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX(tm) Rubber Compound for Chloramine Resistance
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Royal Collection
Specifications
| Approved for Commercial Use | Yes |
| CA Drought Compliant | No |
| Eco Friendly | No |
| TX Drought Compliant | No |
| Insulation Type | Urinal |
| Control Type | Manual |
| Spud Placement | Top |
| Gallons Per Flush | 3.5 |
| Color | Chrome |
| Color Tone | Silver Tones |
