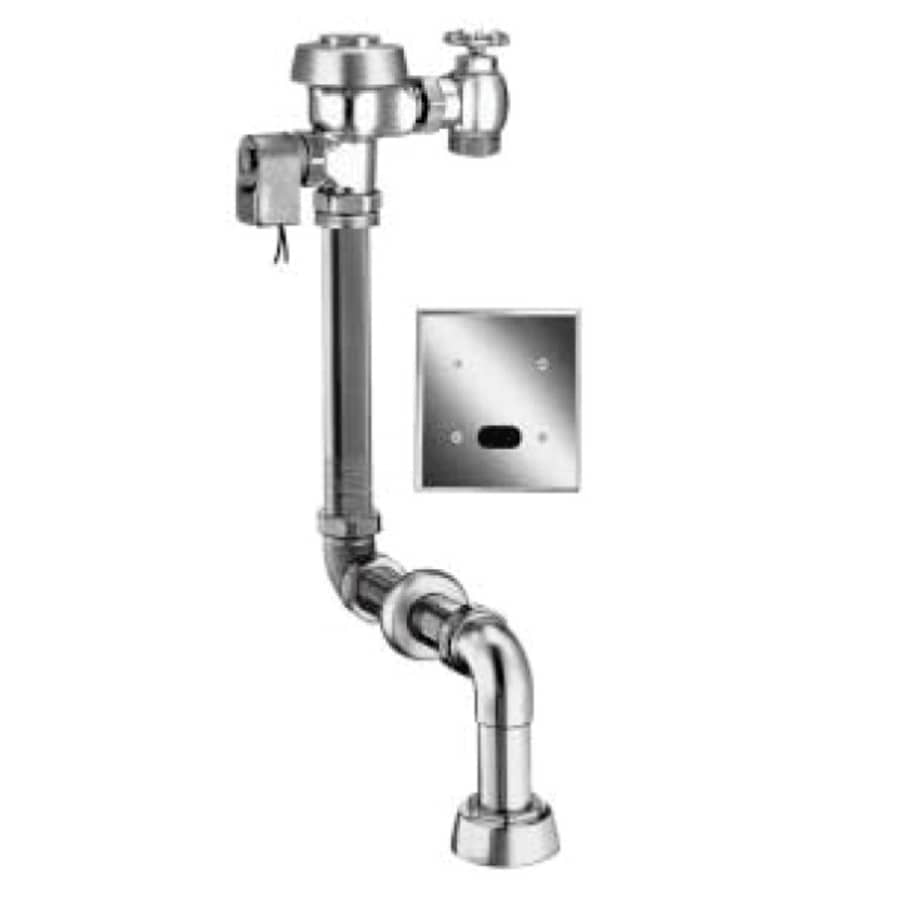

Conventional (3.5 gpf) Concealed, Sensor Operated Royal(R) Model Urinal Flushometer, for 1-1/4” top spud urinals.
Conventional 3.5 GPF
OPTIMA(R) EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
Non-Hold-Open Integral Solenoid Operator
Chrome Plated Wall Cover Plate (for 2-gang Electrical Box) with Vandal Resistant Screws
1″ I.P.S. Wheel Handle Bak-Chek. Angle Stop
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection, Spud Coupling and Flanges for 1¼. Exposed Top Spud
Sweat Solder Adapter
Chrome Plated Exposed Flushometer Parts
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID. Technology
Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Royal Collection
Specifications
| Approved for Commercial Use | Yes |
| CA Drought Compliant | No |
| Eco Friendly | No |
| TX Drought Compliant | No |
| Configuration | Concealed |
| Insulation Type | Urinal |
| Control Type | Electronic |
| Spud Placement | Top |
| Gallons Per Flush | 3.5 |
| Spud Size | 1.25 in. |
| Color | 11 to 12-3/4 LDIM, 2 to 10-3/4 LDIM |
| Color Tone | Multi-Colored |
