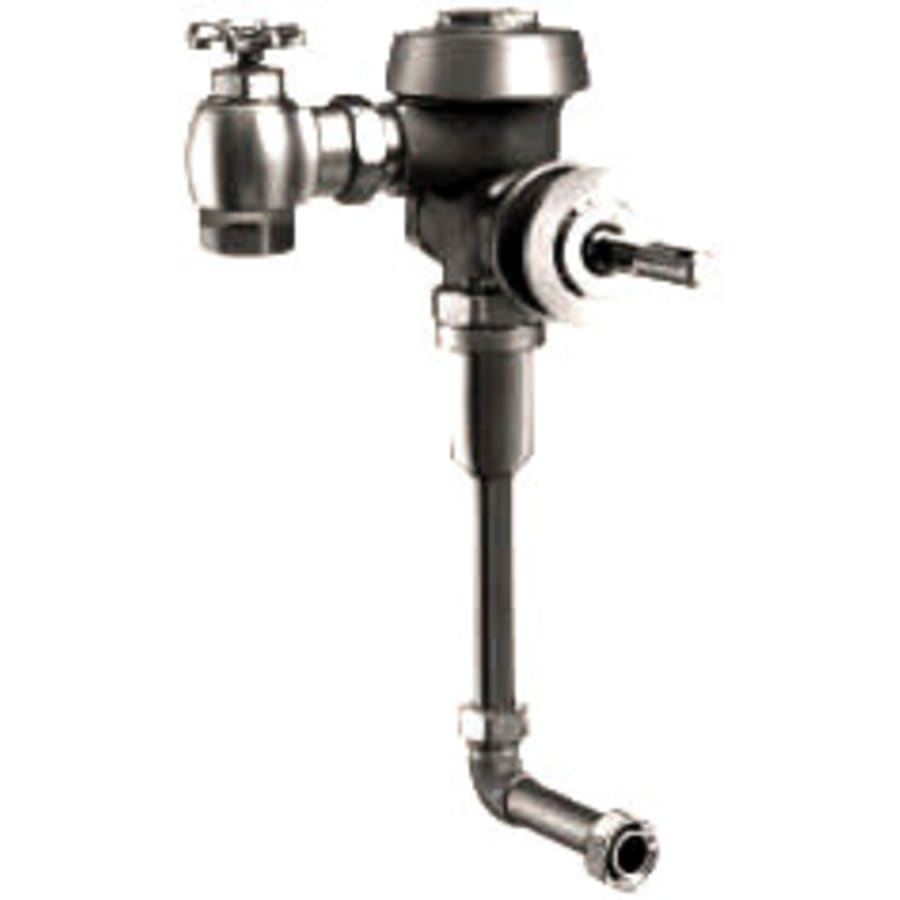

Concealed, Low Consumption (1.0 gpf/3.8 Lpf), Urinal Flushometer, for 3/4″ back spud urinals.
Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply.
Features:
Model 195-1.0 Low Consumption (1.0 gpf/3.8 Lpf)
PERMEX(tm) Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
3/4″ I.P.S. Wheel Handle Bak-Chek(tm) Angle Stop
Adjustable Tailpiece
High Back Pressure Vacuum Breaker
Spud Coupling for 3/4″ Concealed Back Spud Urinals
Sweat Solder Adapter
Elbow Flush Connection
Exposed parts Chrome Plated
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID(tm) Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX(tm) Rubber Compound for Chloramine Resistance
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Royal Collection
Specifications
| Approved for Commercial Use | Yes |
| CA Drought Compliant | No |
| Eco Friendly | No |
| TX Drought Compliant | No |
| Configuration | Concealed |
| Insulation Type | Urinal |
| Water Efficient | Yes |
| Control Type | Manual |
| Spud Placement | Rear |
| Gallons Per Flush | 1 |
| Spud Size | .75 in. |
| Color | 10-3/4 LDIM, 10-3/4 LDIM L, 10-3/4 LDIM L3, 11-3/4 LDIM, 11-3/4 LDIM L, 12-3/4 LDIM, 16-3/4 LDIM, 2-3/4 LDIM, 3-3/4 LDIM, 3-3/4 LDIM L, 3-3/4 LDIM L3, 3-3/4 LDIM WB, 4-3/4 LDIM, 4-3/4 LDIM L, 4-3/4 LDIM L3, 4-3/4 LDIM WB, 5-3/4 LDIM, 5-3/4 LDIM L, 6-3/4 LDIM, 6-3/4 LDIM L, 6-3/4 LDIM L3, 6-3/4 LDIM WB, 7-3/4 LDIM, 7-3/4 LDIM L, 7-3/4 LDIM L WB, 8-3/4 LDIM, 8-3/4 LDIM L3 WB, 9-3/4 LDIM, 9-3/4 LDIM L3, 9-3/4 LDIM L3 WB |
| Color Tone | Multi-Colored |
