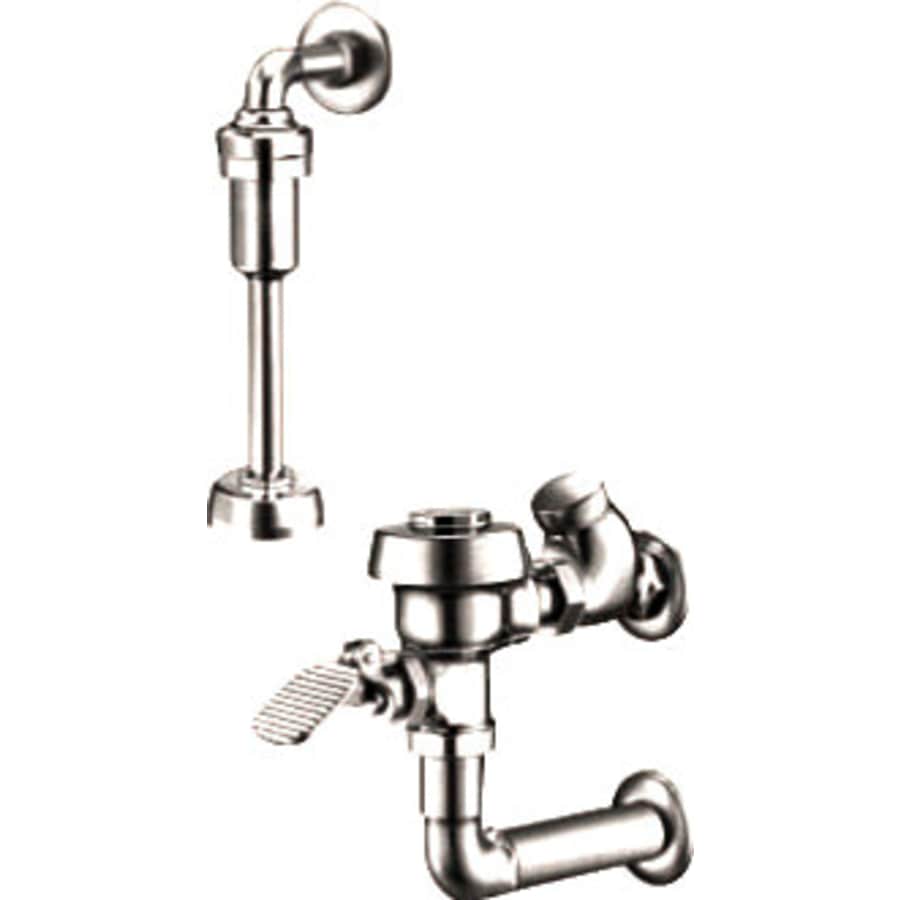

Sloan Exposed Urinal Foot Pedal Flushometer, for 3/4″ top spud urinals.

Exposed Urinal Foot Pedal Flushometer, for ¾” top spud urinals.

Model 320 Water Saver (1.5 gpf/5.7 Lpf)
PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Metal Non-Hold-Open Foot Pedal with Triple Seal Handle Packing
1″ I.P.S. Screwdriver Bak-Chek™ Straight Stop
Free Spinning Vandal Resistant Stop Cap
Ground Joint Tailpiece
1″ Female I.P.S. Union Outlet
1″ I.P.S. Street Elbow, Casing and Wall Flange to cover 1″ pipe
¾” Elbow Flush Connection, Spud Coupling, and Flanges from finished wall to ¾” Exposed Top Spud
High Back Pressure Vacuum Breaker with One-piece Bottom Hex Coupling Nut
Sweat Solder Adapter and Cast Set Screw Wall Flange
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Foot Pedal, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID™ Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX™ Rubber Compound for Chloramine Resistance
