Product Features:
Made in the United States of America
Flushometer is fully covered under manufacturer’s warranty for up to 3-years
Specialty finishes – covered under warranty for a year

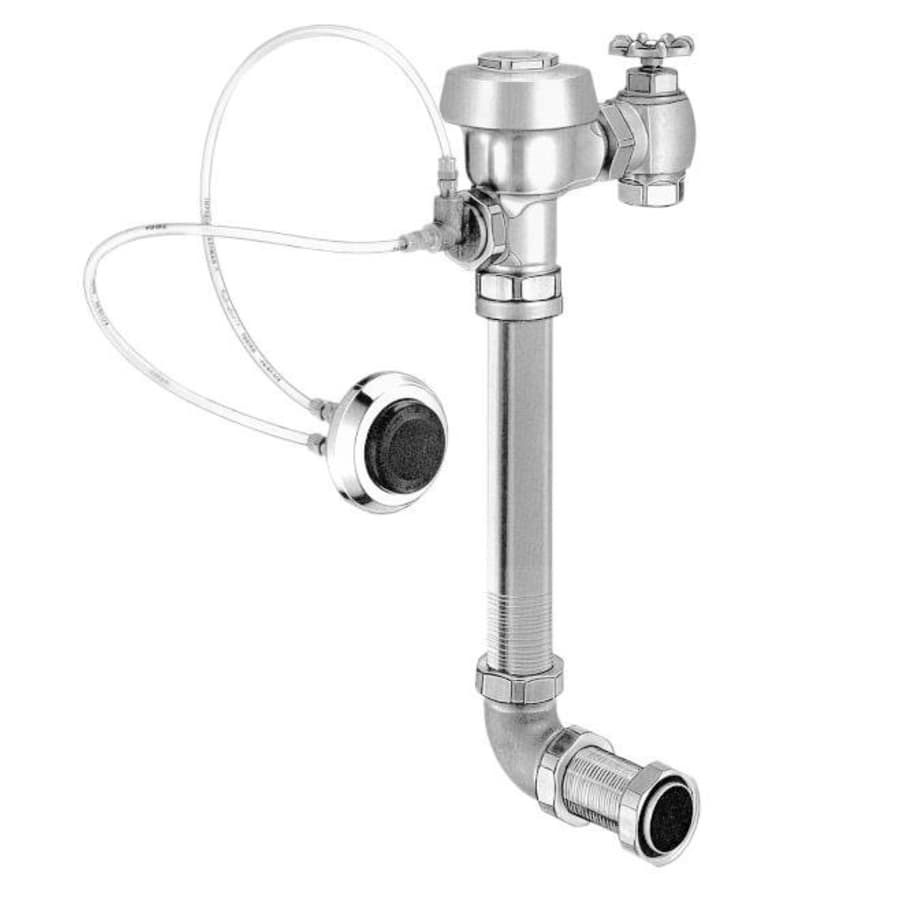

Concealed flushometer
For back spud installations
Hydraulically operated
Hydraulic actuator push button required for installation
ADA compliant
1″ I.P.S. wheel handle Bak-Chek™ angle stop
Features an adjustable tailpiece
Vacuum breaker included
Double slip elbow flush connection and spud coupling for 1-1/4″ connection
Sweat solder adapter
Diaphragm, stop seat and vacuum breaker molded from Permex™ rubber compound for chloramine resistance
Product Specifications:
Height: 13″ (Height from toilet to water inlet)
Depth: 2-1/4″ (Minimum distance flushometer extends from wall)
Width: 4-3/4″ (Distance between wall installation holes)
Flow Rate: 3.5 GPF (gallons-per-flush)
Rated Operating Pressure: 10-100 PSI
Codes and Compliance:
ASSE 1037
ANSI/ASME 112.19.6
Military Specification V-29193
CSA certified
UPC certified
Listed by I.A.P.M.O
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Royal Collection
Specifications
| Height | 13 in. |
| Product Weight | 8.99 lbs. |
| Depth | 2.25 in. |
| Width | 4.75 in. |
| Gallons Per Flush | 3.5 |
| Spud Size | 1.25 in. |
| Water Pressure (Max) | 100 PSI |
| Water Pressure (Min) | 10 PSI |
| Material | Metal |
| Insulation Type | Urinal |
| Configuration | Hydraulic |
| Control Type | Manual |
| Spud Placement | Rear |
| ADA | Yes |
| Country Of Origin | USA |
| Manufacturer Warranty | 3 Year |
| Certifications | ASSE, UPC, ANSI |
| Approved for Commercial Use | Yes |
| CA Drought Compliant | No |
| Made in America | Yes |
| TX Drought Compliant | No |
| ANSI Certification | A112.19.6 |
| ASSE Code | 1037 |
| Color | 11 to 12-3/4 |
| Color Tone | Multi-Colored |
