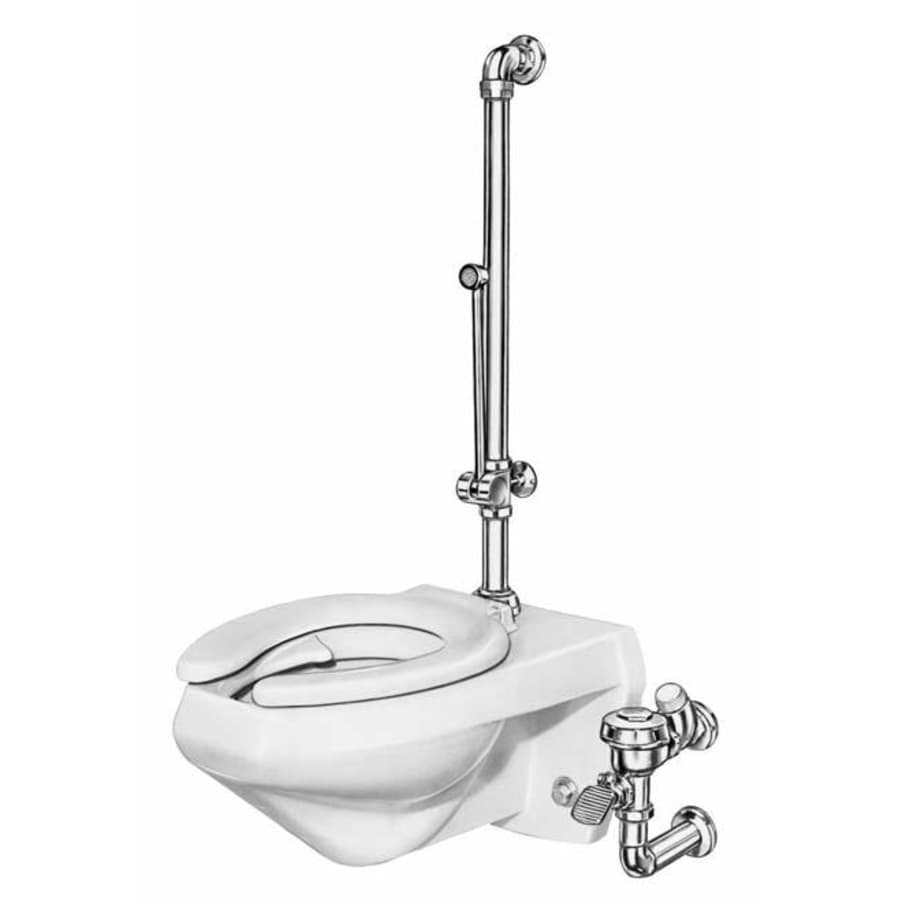

Water Saver (3.5 gpf) Royal(R) Slimline(R) Bedpan Washer Water Closet Foot Pedal Flushometer, for floor mounted or wall hung 1-1/2″ exposed top spud bowls.
Features:
Dual Filtered Bypass
Metal Non-Hold-Open Foot Pedal with Triple Seal Handle Packing
1″ I.P.S. Screwdriver Bak-Chek Straight Stop
Free Spinning Vandal Resistant Stop Cap
Ground Joint Tailpiece
1″ Female Outlet, 1″ Street Ell, Casing and Wall Flange to cover 1″ pipe
1½” Elbow Flush Connection from wall to 1½” Vacuum Breaker
High Back Pressure Vacuum Breaker Flush Connection
Spud Coupling and Flange for 1½” Exposed Top Spud
Sweat Solder Adapter w/Cover Tube & Cast Wall Flange w/Set Screw
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX rubber compound for Chloramine resistance
100% of the energy used in manufacturing is offset with Renewable Energy Sources – Wind Energy
Bedpan Washer Diverter Assembly with the following features:
Solid One-piece Body Construction
Solid Brass Spray Arm
Counter Balanced Pivot Assembly
Diverter Valve Wall Support
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037 and ANSI/ASME A112.19.2.
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Royal Collection
Specifications
| Product Weight | 18.4 lbs. |
| Gallons Per Flush | 3.5 |
| Spud Size | 1.5 in. |
| Insulation Type | Toilet |
| Configuration | Exposed |
| Control Type | Manual |
| Spud Placement | Top |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| CA Drought Compliant | No |
| Eco Friendly | No |
| TX Drought Compliant | No |
| Bedpan Attachment | Yes |
| Color | Chrome |
| Color Tone | Silver Tones |
