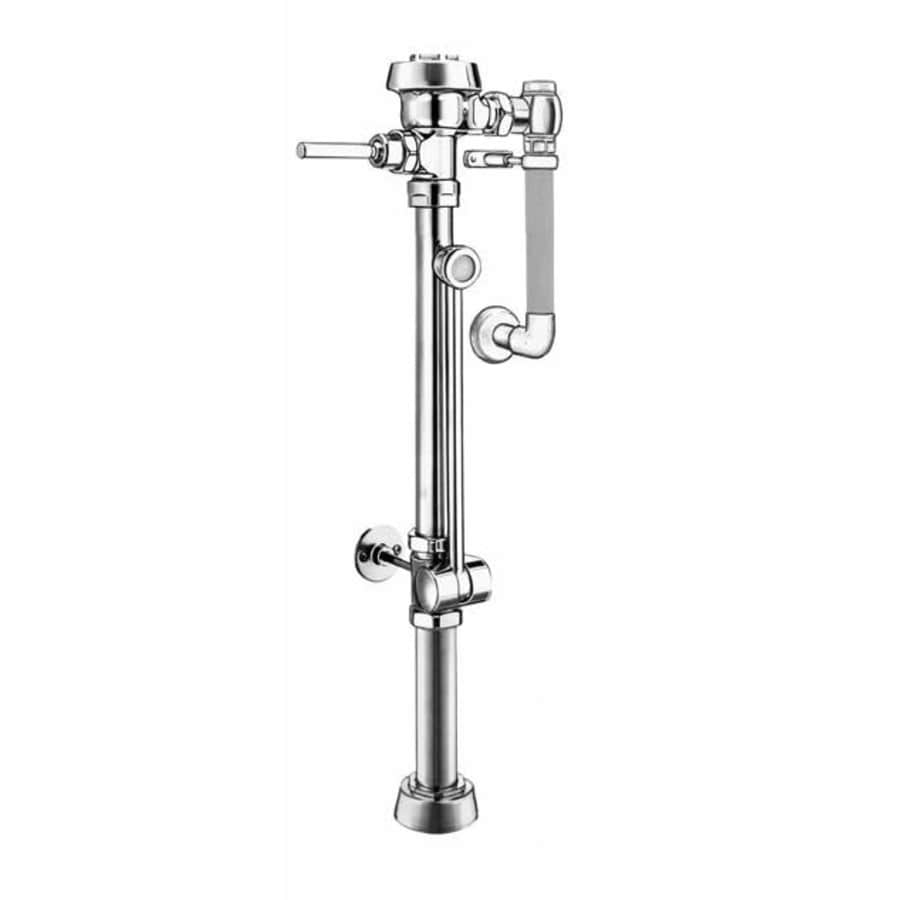

Bedpan Washer Water Closet Flushometer with Deoseptic Unit
For floor mounted or wall hung top spud bowls. Includes Elbow and Pipe Support for installation when replacing an existing Flushometer with a lower water supply rough-in height (pipe between Elbow and Angle Stop supplied by others). Installation meets ADA height requirements. Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037 and ANSI/ASME A112.19.2.
Dual Filtered Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
1″ I.P.S. Screwdriver Bak-Chek Angle Stop
1″ I.P.S. Chrome Plated Elbow and Solid Ring Pipe Support
Free Spinning Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for 1½” Top Spud
Sweat Solder Adapter w/Cover Tube & Cast Wall Flange w/Set Screw
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX rubber compound for Chloramine resistance
100% of the energy used in manufacturing is offset with Renewable Energy Sources – Wind Energy
Bedpan Washer Diverter Assembly with the following features:
Solid One-piece Body Construction
Solid Brass Spray Arm
Counter Balanced Pivot Assembly
Diverter Valve Wall Support
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Royal Collection
Specifications
| Product Weight | 10.5 lbs. |
| Gallons Per Flush | 3.5 |
| Spud Size | 1.5 in. |
| Insulation Type | Toilet |
| Configuration | Exposed |
| Control Type | Manual |
| Spud Placement | Top |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| CA Drought Compliant | No |
| Eco Friendly | No |
| TX Drought Compliant | No |
| Bedpan Attachment | Yes |
| Color | Chrome |
| Color Tone | Silver Tones |
