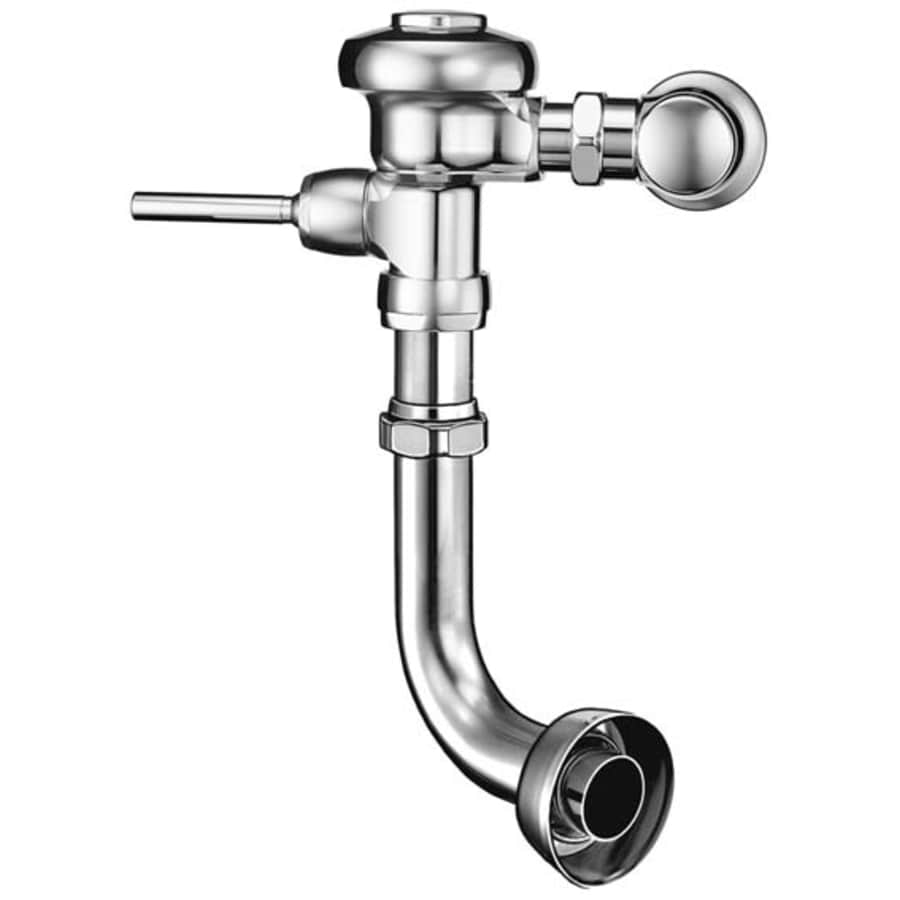

Sloan Exposed Water Closet Flushometer for floor mounted back spud bowls. Low Consumption 1.6 GPF

Exposed Water Closet Flushometer

For floor mounted or wall hung top spud bowls. Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.

PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
Aesthetically contoured Cover, Handle Socket and Flanges
1″ I.P.S. Screwdriver Bak-Chek Angle Stop
Free Spinning Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Elbow Flush Connection, Spud Coupling and Flange for 1½” Back Spud
Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set Screw
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
100% of the energy used in manufacturing is offset with Renewable Energy Sources – Wind Energy
Water Conserving 1.6gpf
