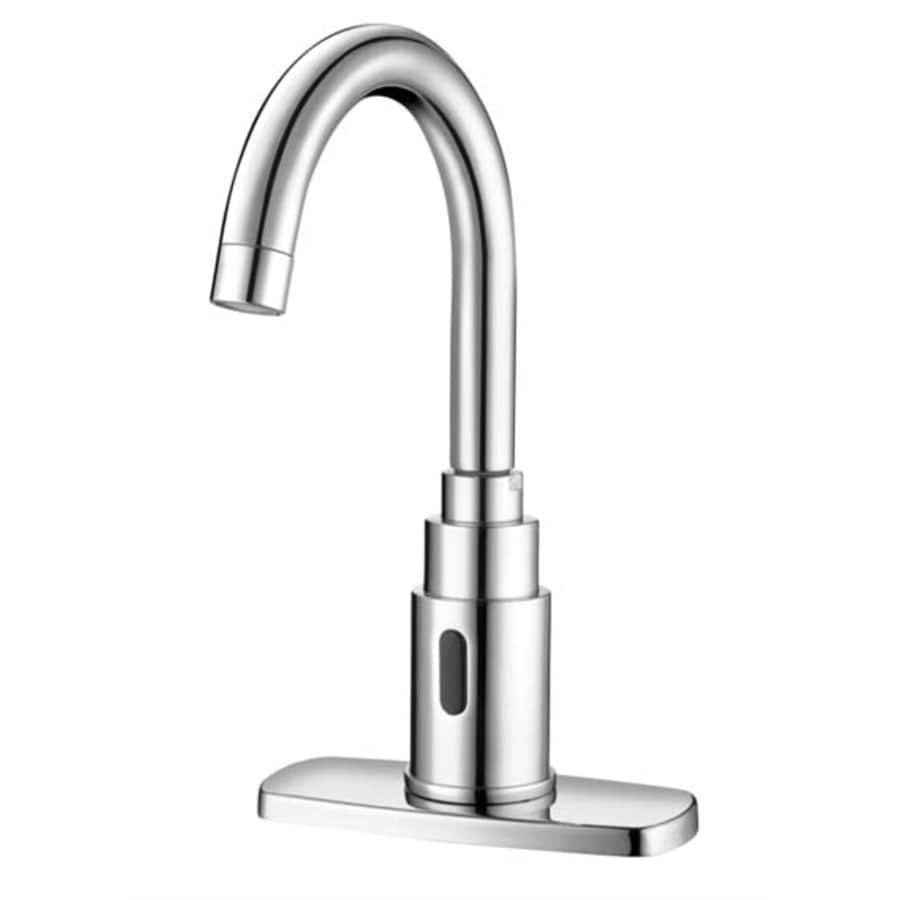

Sloan SF2250-4-BDM Features:
All chrome plated brass faucet construction
Single hole installation
Splash proof control module
No handles included – operates with an automatic IR sensor
Trim plate kit for 4″ centerset sinks included
36″ Sensor cable and 24″ flex hose
Solenoid valve with serviceable strainer filter
6 VDC Plug-in adapter (Model SF-2200 only)
Includes (4) AA-size batteries
ADA compliant
Installation hardware included
Covered under Sloan’s 3 Year Warranty
Sloan SF2250-4-BDM Technologies:
Automatic Operation: This faucet utilizes a built in infrared sensor with an effective range of 4″-7″. The Solenoid activates the water flow and tempered water flows from the faucet until the user steps away, at which point the faucet automatically shuts off.
Sloan SF2250-4-BDM Specifications:
Height: 10″ (deck to top of faucet)
Spout Height: ” (deck to spout outlet)
Spout Reach: 5-1/4″ (faucet base to spout outlet)
Flow Rate: 2.2 gallons-per-minute
Maximum Deck Thickness: 1-1/2″
Hole Size: 1-1/4″
Holes Required: 1
Trim Plate Width: 4″
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Sloan Collection
Specifications
| Height | 10 in. |
| Width | 2.13 in. |
| Product Weight | 5 lbs. |
| Length | 5.25 in. |
| Faucet Centers | 0 in. |
| Flow Rate (GPM) | 2.2 |
| Max Deck Thickness | 1.5 in. |
| Spout Height | 10 in. |
| Spout Reach | 5.25 in. |
| Overflow Height | 10 in. |
| Material | Brass |
| Thermostat | Basic |
| Faucet Holes | 1 |
| Valve Type | Solenoid |
| Spout Style | Gooseneck, High Arc |
| Mounting Type | Single Hole |
| Faucet Type | Bathroom Sink Faucet |
| Water Efficient | Yes |
| Electronic | Yes |
| Sensor Type | IR |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Low Lead Compliant | Yes |
| CA Drought Compliant | No |
| WaterSense Certified | Yes |
| Drain Assembly Included | No |
| Handshower Included | Yes |
| Valve Included | Yes |
| Escutcheon Included | Yes |
| Mixing Valve | Yes |
| Public Temperature Control | No |
| Power Source | Battery, Plug-In |
| Color | Chrome |
| Color Tone | Silver Tones |
