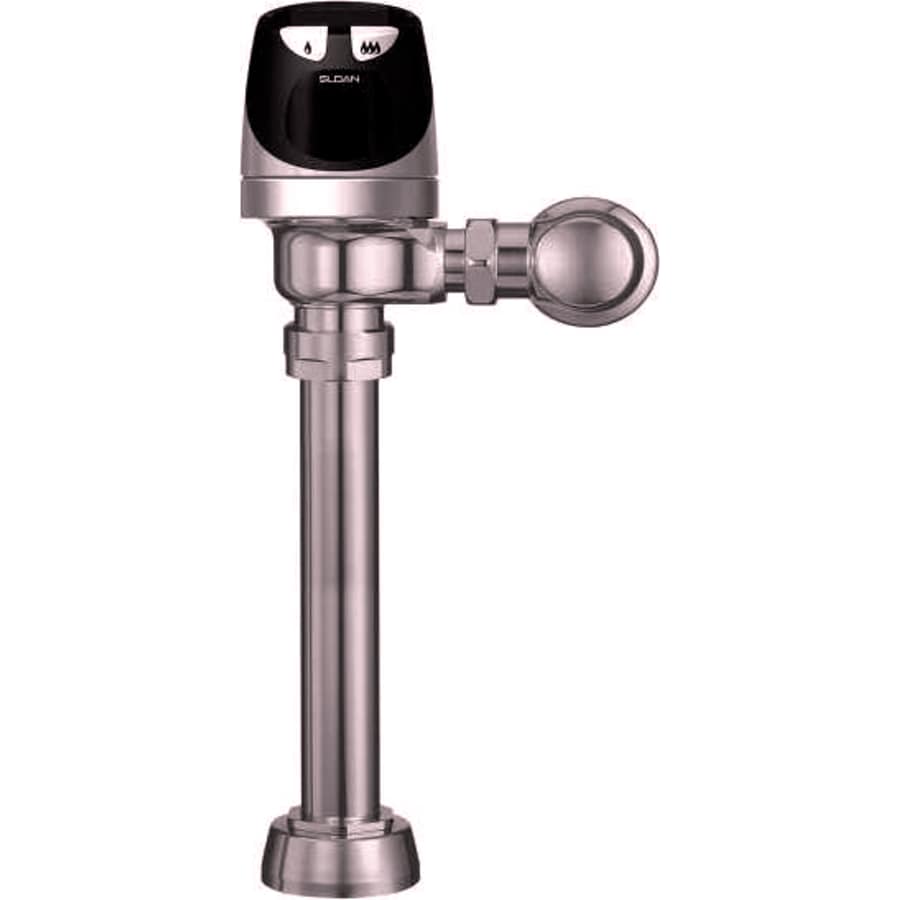

Sloan High-Efficiency – Full Flush (Large Button – 1.6 gpf) / Reduced Flush (Small Button – 1.1 gpf) Exposed, Solar Powered, Sensor Activated Sloan SOLIS® Dual Flush Water Closet Flushometer for floor mounted or wall hung 1-1/2″ top spud bowls, with Smart Sense Technology™.

High-Efficiency – Full Flush (Large Button – 1.6 gpf) / Reduced Flush (Small Button – 1.1 gpf) Exposed, Solar Powered, Sensor Activated Sloan SOLIS(R) Dual Flush Water Closet Flushometer for floor mounted or wall hung 1-1/2″ top spud bowls, with Smart Sense Technology(tm).

Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer for either left or right hand supply

Features:

Solar Powered. The sensor assembly is powered by a solar cell that will harvest power from artificial indoor light, either incandescent or fluorescent light, and use it as the energy source. The solar cell can provide approximately 100% power with 650 Illuminance (lux).
Four (4) Size AA Battery Back-up Power Source
“Low Battery” Flashing LED
If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced fl ush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full fl ush initiates (1.6 gpf/ 6.0 Lpf) eliminating solid waste and paper
Reduces water volume by up to 30% when a reduced flush occurs
PERMEX(tm) Synthetic Rubber Diaphragm with twin linear filtered bypass and vortex cleansing action
Flex Tube Diaphragm designed for improved life and reduced maintenance
ADA Compliant Sloan SOLIS(R) Electronic Dual Flush Solar Powered Infrared Sensor for automatic “No Hands” operation
Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
Latching Solenoid Operator
Engineered Metal Cover with replaceable Lens Window
User friendly three (3) second Flush Delay
Courtesy Flush(tm) Override Buttons for Full and Reduced Flush
Infrared Sensor Range Adjustment Screw
Initial Set-up Range Indicator Light (first 10 minutes)
1″ I.P.S. Screwdriver Bak-Chek(R) Angle Stop
Free Spinning, Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for 1½” Top Spud
Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID(tm) Technology
Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX(tm) Rubber Compound for Chloramine resistance

Valve Body, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037, ANSI/ASME A112.19.2. Installation conforms to ADA requirements.

Automatic Operation
Sloan SOLIS Solar powered Flushometers can also be activated via multi-lobular infrared sensor. Sloan’s SOLIS Solar powered Flushometer is a breakthrough in design and function that transforms light into power. The SOLIS Series of Flushometers provide the ultimate in conservation and performance.

Manual Operation
Sloan SOLIS Solar powered Flushometers incorporate a intuitive button design for easy manual activation. Straightforward graphics alert user to proper activation. To further educate the user, two (2) instructional wall plates are included with each Sloan Solis Flushometer.

Functional & Hygienic
Touchless, sensor operation eliminates the need for user contact to help control the spread of infectious diseases. The Sloan SOLIS Solar powered Flushometers is provided with an Override Button to allow a “courtesy flush” for individual user comfort.

For floor mounted or wall hung top spud bowls. Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer for either left or right hand supply. Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
