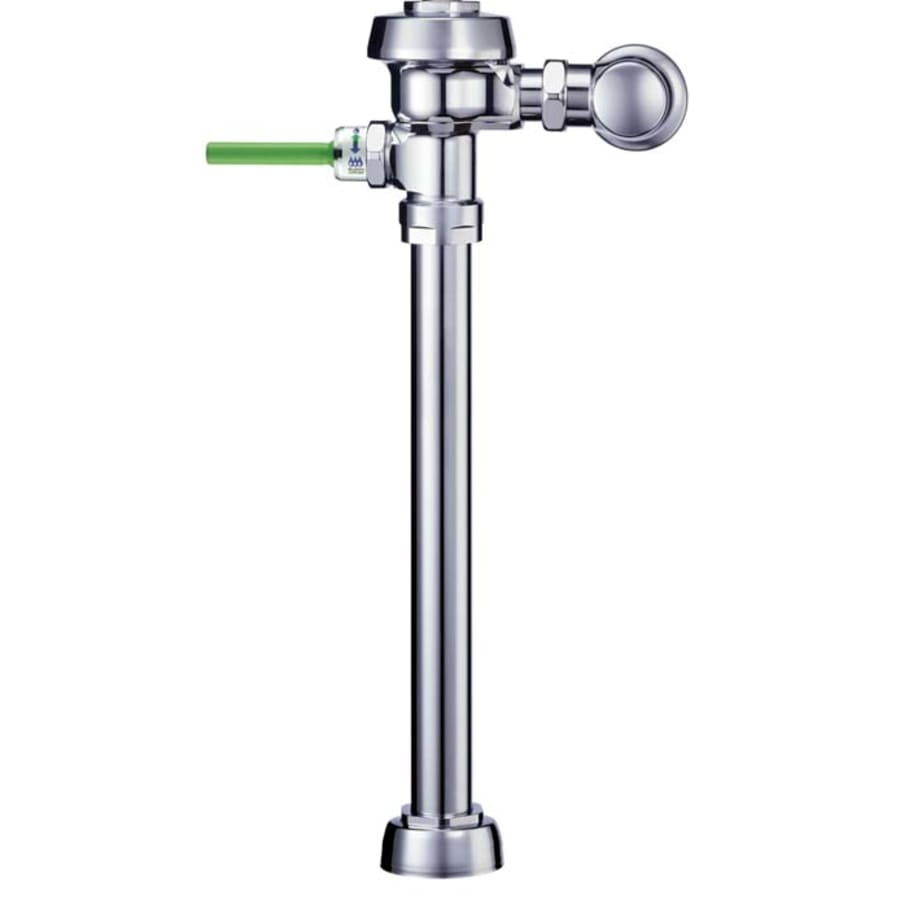

Sloan (WES-115) Dual Flush – (Down 1.6 gpf, Up 1.1 gpf) Exposed Water Closet Flushometer for floor mounted or wall hung 1-1/2″ top spud bowls.

WES-115 (Model #3720300) Dual Flush – (Down 1.6 gpf, Up 1.1 gpf) Exposed Water Closet Flushometer for floor mounted or wall hung 1-1/2″ top spud bowls.

Dual-Flush, Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer

Features:

Lifting handle UP initiates reduced flush (1.1 gpf/4.2 Lpf), eliminating liquid and paper waste, saving a ½-gallon of water
Pushing handle DOWN initiates full flush (1.6 gpf/6.0 Lpf), eliminating solid waste and paper
Reduces water volume by up to 30% when activated UPWARDS
Antimicrobial Coating on Handle protects against germs
PERMEX(tm) Synthetic Rubber Diaphragm w/Dual Filtered Fixed Bypass
Distinctive Green ADA Compliant Metal Non-Hold-Open Handle with Triple Seal Handle Packing signifies Water Conserving Device
1″ I.P.S. Screwdriver Bak-Chek(tm) Angle Stop
Free Spinning Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for 1½” Top Spud
Sweat Solder Adapter w/Cover Tube and Cast Set Screw Wall Flange
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID(tm) Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX(tm) Rubber Compound for Chloramine Resistance
Includes (2) adhesive backed Metal Wall Plates etched w/Instructions

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME A112.19.2 and Military Specification V-29193.
