Sloan 0.125 GPF Top Spud Urinal – Flushometer Included

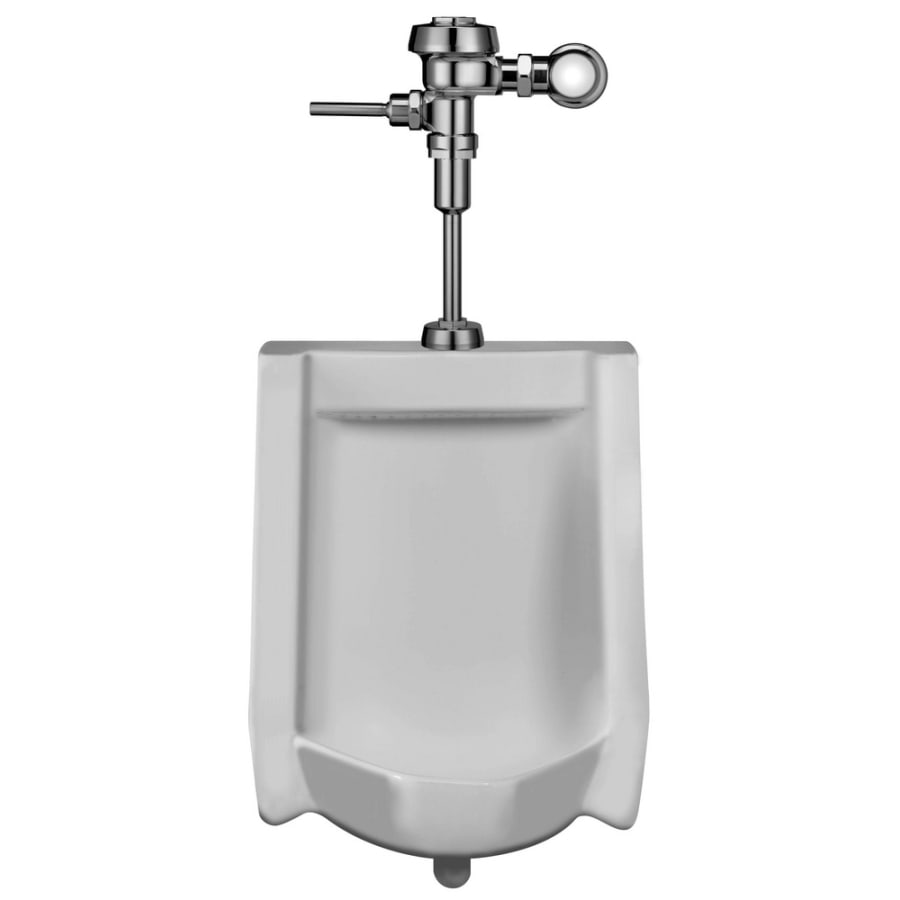

High Efficiency Urinal (0.125 gpf) Complete System with Exposed Manual Royal(R) Urinal Flushometer and Vitreous China Urinal.

The HEU systems combine the performance of both the fixture and the flush valve to ensure a true, water-efficient system. These HEU models feature a manual Royal Flushometer and a vitreous china urinal fixture.

Quiet, exposed, diaphragm type, chrome plated urinal Flushometer and vitreous china urinal.

Flushometer Features

PERMEX(R) Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
ADA compliant metal oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
3/4″ I.P.S. Screwdriver Bak-chek(R) Angle Stop
Free spinning Vandal Resistant Stop cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush connection with One-piece Bottom Hex coupling Nut
Spud coupling and Flange for 3/4″ Top Spud
Sweat Solder Adapter w/cover Tube and cast Wall Flange with Set Screw
High copper, low zinc brass castings for dezincification resistance
Non-Hold-Open Handle, Fixed Metering Bypass and no external volume adjustment to ensure
water conservation
Flush accuracy controlled by cID(R) technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX(R) rubber compound for chloramine resistance
Valve Body, cover, Tailpiece and control Stop shall be in conformance with ASTM Alloy classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ ASME A112.19.2.

Urinal Features:

Wall hung vitreous china
Washdown flushing action
3/4″ I.P.S. top spud inlet
2″ NPT outlet flange
All mounting hardware included
Integral flushing rim
100 % factory flush tested
Compatible with Jay R. Smith carrier 0636 or 0637
