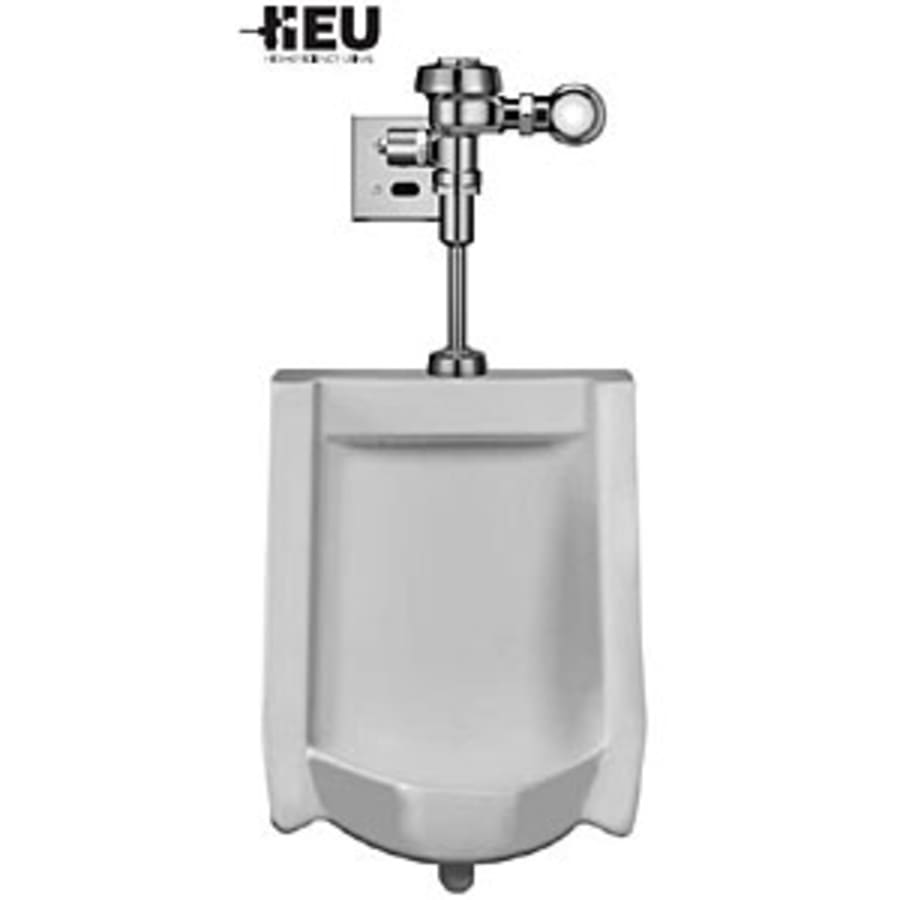

Sloan High Efficiency Urinal with Royal 186 Smooth Flushometer

High Efficiency Urinal (0.25 gpf) Complete system with exposed, sensor activated, Royal(R) OPTIMA(R) urinal Flushometer and vitreous china urinal.

Quiet, exposed, sensor operated diaphragm type, chrome plated urinal Flushometer for either left or
right hand supply and vitreous china urinal.

Flushometer Features:

PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
OPTIMA EL-1″0 Self-Adaptive Infrared Sensor with Indicator Light
Non-Hold-Open Integral Solenoid Operator
Chrome Plated Wall Cover Plate (for 2-gang Electrical Box) with Vandal Resistant Screws
3/4″ I.P.S. Screwdriver Bak-Chek Angle Stop
Free Spinning Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-Piece Bottom Hex Coupling
Nut, Spud Coupling and Flange for 3/4″ Top Spud
Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set Screw
High copper, low zinc brass castings for dezincification resistance
Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and no external volume adjustment to ensure water conservation
Flush accuracy controlled by CID technology
Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX rubber compound for chloramine resistance
Valve Body, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1.7, ANSI/ASME A1.5 and Military Specification V-291.

Urinal Features:

Wall hung vitreous china
Washdown flushing action
3/4″ I.P.S. top spud inlet
2″ I.P.S. spud outlet
All mounting hardware included
Integral flushing rim

Automatic:

Sloan OPTIMA(R) equipped Flushometers provide the ultimate in sanitary protection and automatic operation. There are no handles to trip or buttons to push. The Flushometer operates by means of an infrared sensor that adapts to its surroundings. Once the user enters the sensor’s effective range and then steps away, the Flushometer Solenoid initiates the flushing cycle to flush the fixture.

Hygienic:

User makes no physical contact with the Flushometer surface. Helps control the spread of infectious diseases. 24-hour Sentinel Flush keeps fixture fresh during periods of nonuse.

Economical:

Automatic operation and a low flush volume provide water savings over other flushing devices. Reduces
maintenance and operation costs.

Practical:

Solid state electronic circuitry assures years of dependable, trouble-free operation. The operational
components of the Flushometer are identical to a handle operated Royal(R) Flushometer, proven by
more than 100 years of experience.

Warranty:
3 year (limited)
