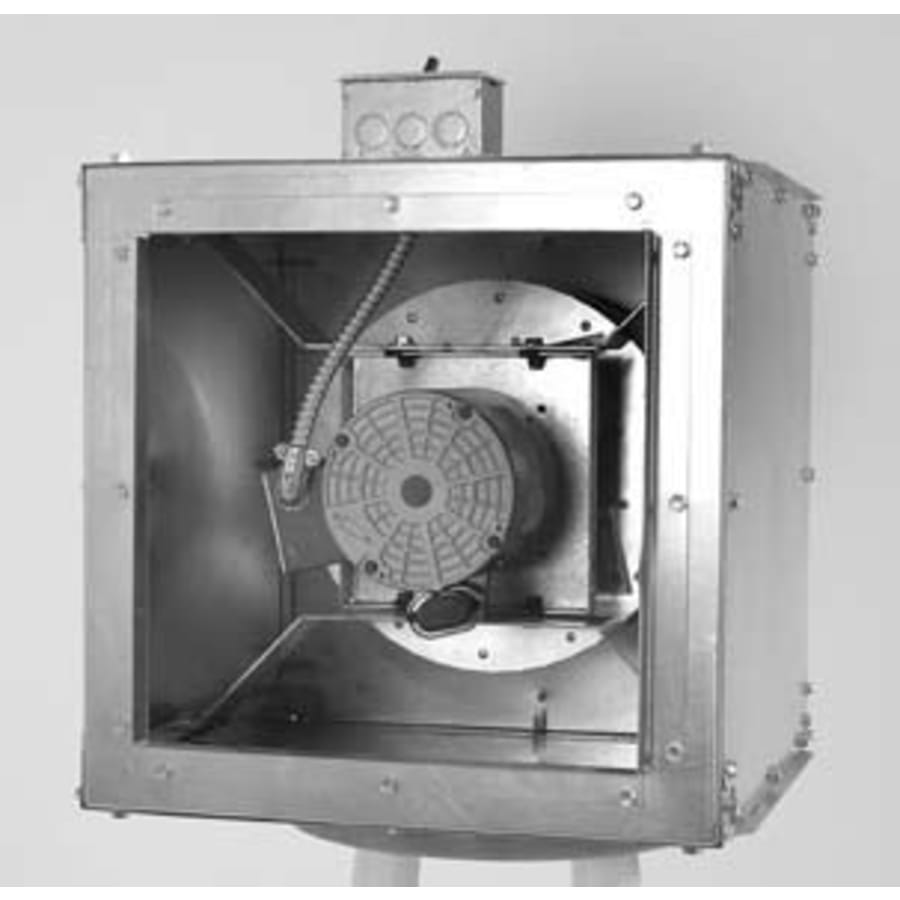

SQD Collection 1/4 Horse Power 9.7 Sones 115/1/60 Volts Square Inline Direct Drive Centrifugal Duct Fan
The Soler & Palau model SQD fans are available in sizes 6 through 15, moving up to 2,800 CFM, with static pressure capabilities to 1″. SQD units are the perfect selection for clean air applications where space is a leading consideration. The compact housing with removable access doors can be mounted in any orientation.
Features:
Exhaust Air up to 2,800 CFM in High Static Pressure Applications up to 1″ w.g.
Direct Drive Units Have Low Sound Levels and Quiet Operation
Ideal for Applications where Space is Limited
Non-Overloading Backward Inclined Wheel for Efficiency at Higher Static Pressures
AMCA Air and Sound Licensed
UL Listed
Universal Mounting – Horizontal, Vertical, or Any Angle
Soler & Palau is the world’s leading fan manufacturer. Their extensive range of residential and light commercial fans offer the ideal solution for air movement in any domestic application or office environment. Soler & Palau products can be found in virtually any commercial or residential application, ranging from innovative, quiet and reliable room ventilators to large diameter, high capacity exhaust systems designed for critical applications in some of the world’s toughest environments.
Additional Soler and Palau Links
View the Manufacturer Warranty
Browse all Soler and Palau Products
Soler and Palau SQD – Square Inline Direct Drive Duct Fan Collection
Specifications
| Width | 24 in. |
| Height | 34 in. |
| Length | 24 in. |
| Product Weight | 90 lbs. |
| CFM | 1410 |
| Approved for Commercial Use | Yes |
| ADA | No |
| Certifications | UL |
| Kitchen Approved | No |
| Configuration | Direct Drive Centrifugal Duct Fan |
| Mounting Type | In-Line |
| Humidity Sensing | No |
| Horsepower | 0.25 |
| Speeds | 1 |
| Sones | 9.7 |
| Drive Type | Direct Drive |
