Features:
Includes a single hinge in each order
Constructed of stainless steel for strength, durability, and corrosion resistance

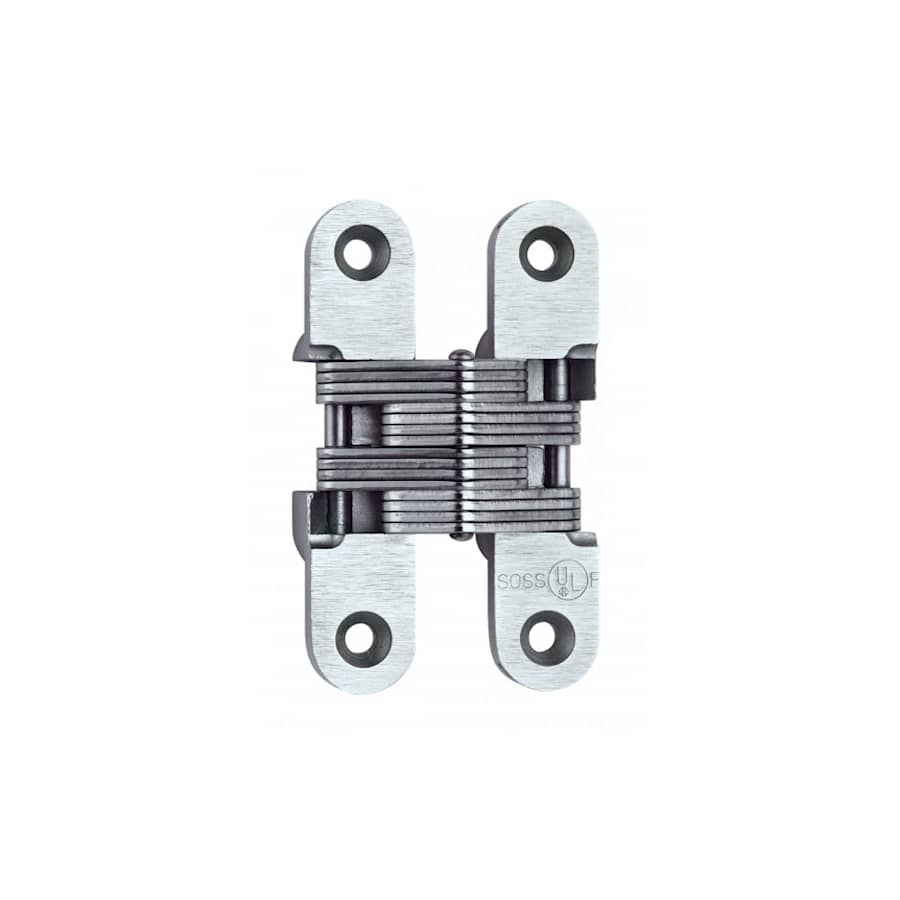

Soss’s patented invisible hinge is designed to be invisible to see when the hinge is fully opened
Can be used on hollow, sheet, tin clad, and steel composite doors to give up to a 3 hour fire rating
Usable on wood core doors and frames to give up to a 20 minute fire rating
Wood mounting screws are included, metal mounting screws must be purchased separated
Specifications:
Height: 4-5/8″ (117.48 mm)
Width: 1-3/4″ (44.05 mm)
Depth: 1-15/32″ (37.31 mm)
Door Thickness: 1-3/8″
Opening Angle: 180°
Weight Capacity: 60 Lbs
Material: Stainless Steel
Mounting Type: Mortise
Additional Soss Links
Browse all Soss Products
Specifications
Dimensions and Measurements
| Height | 4.675 in. |
| Depth | 1.469 in. |
| Width | 1.75 in. |
| Length | 2.75 in. |
| Door Thickness | 1-3/8" |
| Quantity | 1 |
| Width mm | 44.05 mm |
| Opening Angle | 180 |
| Max Capacity (Pounds) | 60 lbs. |
| Height mm | 117.48 mm |
| Depth mm | 37.31 mm |
Characteristics and Features
| Thermostat | Contemporary |
| Insulation Type | Screw |
| Material | Stainless Steel |
| Mounting Type | Mortise |
| Hinge Type | Plain Bearing |
| Hole Pattern | Template |
| Number Of Hooks | 4 |
| Number of Knuckles | 4 |
| Removable Pin | No |
| Sconce Type | Wood |
| Self Closing | No |
| Soft Close | No |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Certifications | UL |
| Usage Level | Commercial Grade |
| Color | Satin Chrome |
| Color Tone | Silver Tones |
