Speakman SEF-1800-CABOTW Faucet Features:
Covered under Speakman’s 3 year limited warranty
Faucet body constructed of brass
Brass is highly resistant to corrosion and an excellent choice to withstand high temperatures
Widespread installation – 3 hole faucet with 6-12″ centers
Dual wrist blade handles control the flow and temperature of water
Faucet includes ceramic disc rough in valve
Drain assembly not included
Low lead compliant
Speakman SEF-1800-CABOTW Eye Wash Features:
Eye wash outlets constructed of plastic
Aerated sprays with dust caps
Pull handle activates water flow
Speakman SEF-1800-CABOTW Specifications:
Height: 9″ (deck to top of faucet)
Spout Height: 5-1/4″ (deck to spout outlet)
Spout Reach: 5-1/2″ (faucet base to spout outlet)
Eye Wash Flow Rate: 2.8 gallons-per-minute
Faucet Flow Rate: .5 gallons-per-minute
Faucet Centers: 6-12″ (distance between centers of outside faucet holes)
Maximum Deck Thickness: 2″
Hole Size: 1″
Holes Required: 3
Connection Size: 1/2″
Connection Type: NPT, NPSM
Product Variations:
SEF-1800-CA: Widespread Faucet with Integrated Eye Wash
SEF-1800-CA-BO: .5 GPM Vandal Resistant Widespread Faucet with Integrated Eye Wash
SEF-1800-CABOTWÂ (This Model): .5 GPM Vandal Resistant Widespread Faucet with Integrated Eye Wash with Thermostatic Mixing Valve
About This Product:

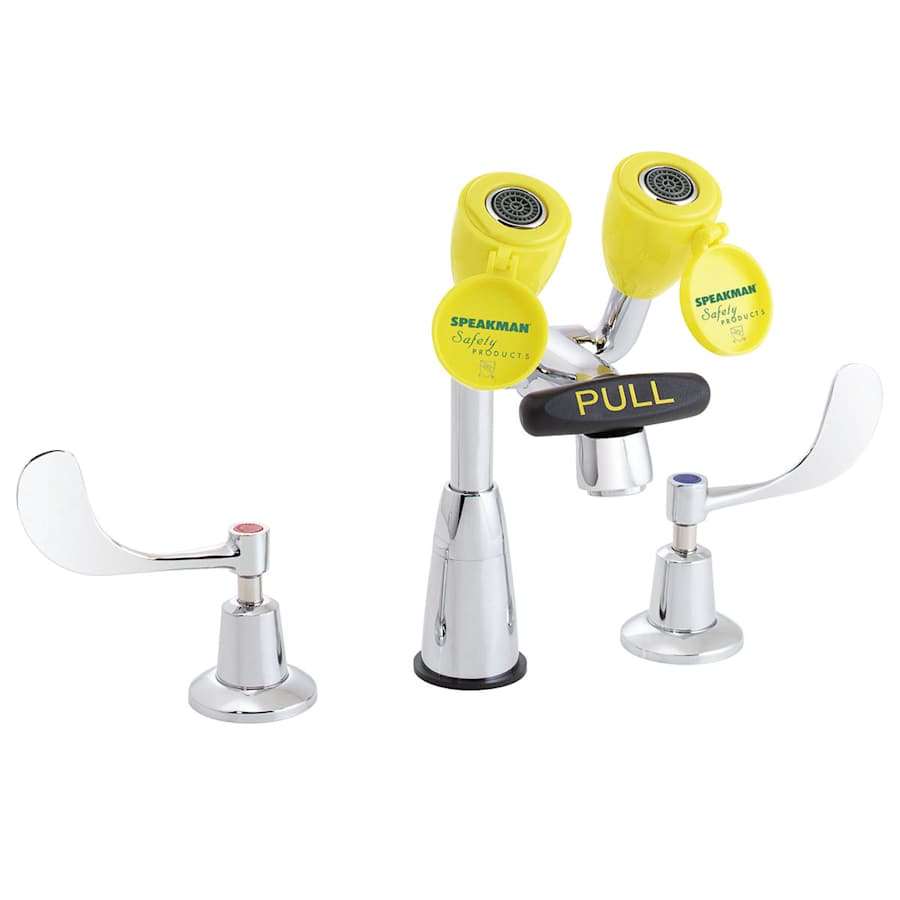

The Speakman Eyesaver Classic Eyewash Faucet features a revolutionary, exclusive design that combines a fully functional gooseneck faucet with an independently operated eyewash. This patented design incorporates two separate water channels in the faucet body, one for the eyewash and the other for the faucet. The intuitive pull activation delivers safe, tepid water to the eyes. The faucet can function independently and simultaneously from the eyewash. The SEF-1800-CABOTW is compliant to the ANSI/ISEA Z358.1, ASME A112.18.1/CSA B 125.1, NSF 61 & NSF 372 standards.
Additional Speakman Links
View the Manufacturer Warranty
Browse all Speakman Products
Speakman Eyesaver Collection
Specifications
| Height | 9 in. |
| Flow Rate (GPM) | 2.8, .5 |
| Water Connection | 1/2" |
| Spout Reach | 5.5 in. |
| Faucet Centers | 12, 10, 7, 9, 6, 8, 11 in. |
| Spout Height | 5.25 in. |
| Faucet Hole Size | 1 in. |
| Max Deck Thickness | 2 in. |
| Material | Brass |
| Electronic | No |
| Handle Style | Wrist Blade |
| Water Connection Type | NPSM, NPT |
| Spout Type | Fixed |
| Valve Type | Ceramic Disc, Thermostatic |
| Insulation Type | Deck Mounted |
| Mounting Type | Widespread |
| Faucet Holes | 3 |
| Number Of Handles | 3 |
| Waterfall Faucet | No |
| ADA | No |
| Certifications | NSF, UPC, ANSI, ASME, CSA |
| Collection | Eyesaver |
| Country Of Origin | Taiwan |
| Manufacturer Warranty | 3 Year Limited |
| Approved for Commercial Use | Yes |
| Low Lead Compliant | Yes |
| CSA Code | B125 |
| CA Drought Compliant | No |
| ASSE Code | A112.18.1 |
| Drain Assembly Included | No |
| Escutcheon Included | No |
| Pop-Up Included | No |
| Valve Included | Yes |
| Handshower Included | Yes |
| Color | Polished Chrome |
| Color Tone | Silver Tones |
