Summit’s selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines.

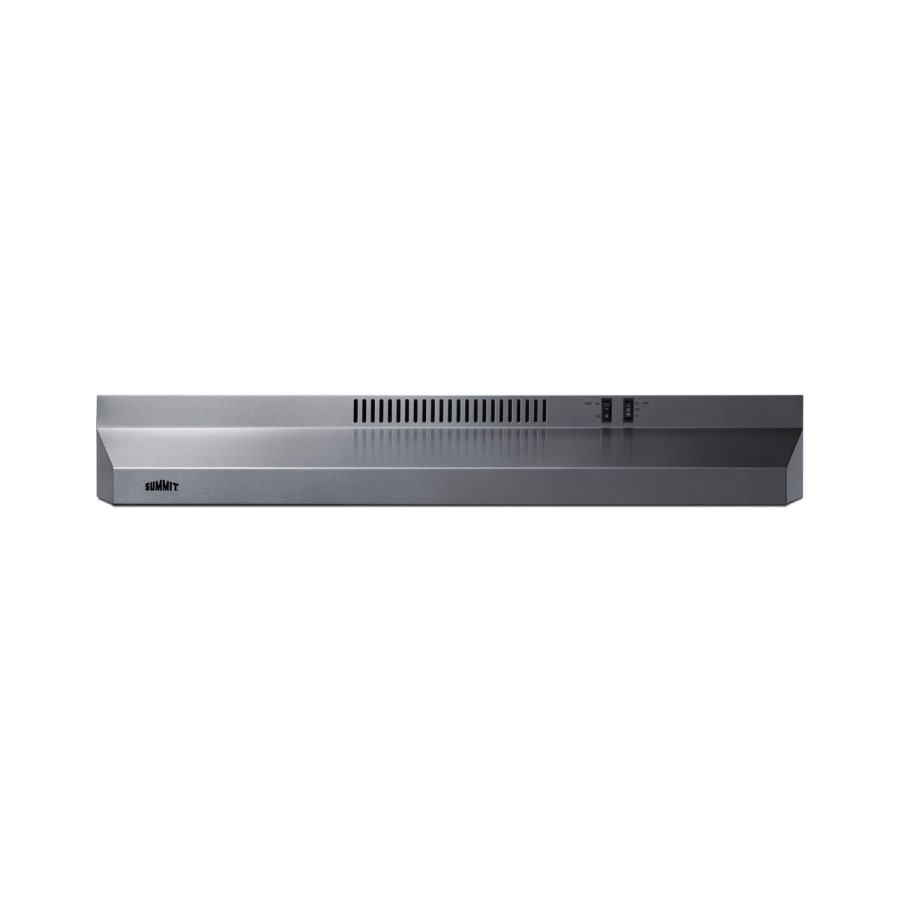

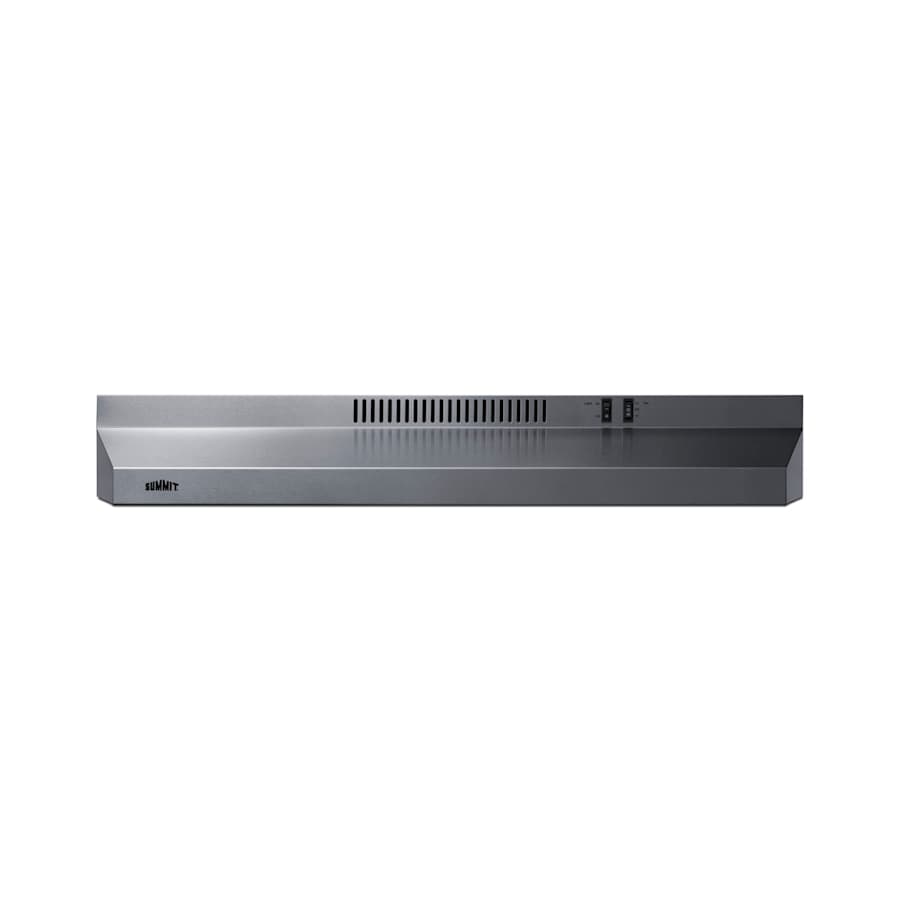

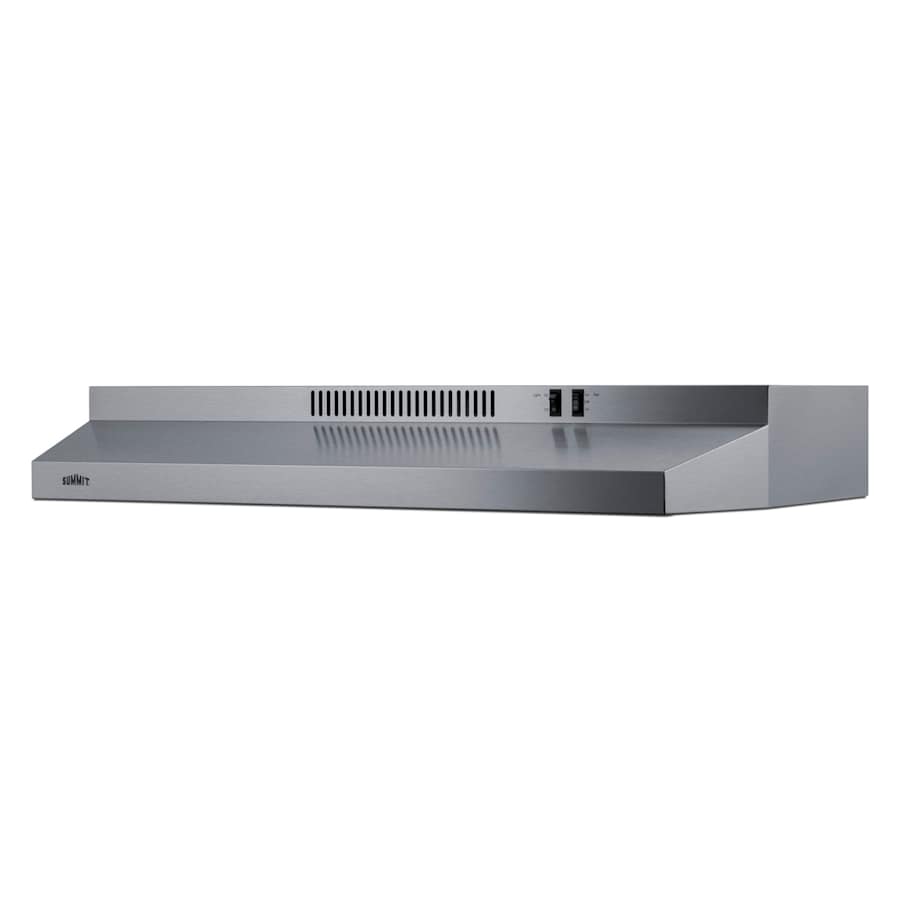

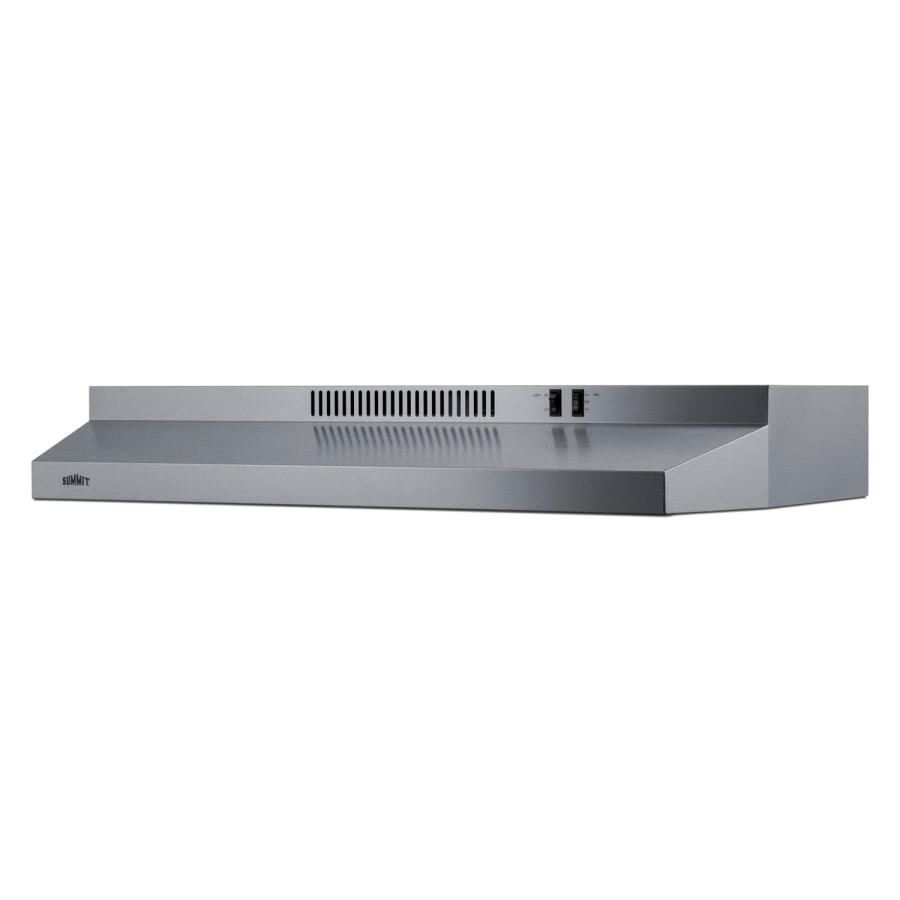

This model is a 36″ wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces. Included is a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The 2-speed fan is easily managed by a rocker switch with a high and low ventilation setting.

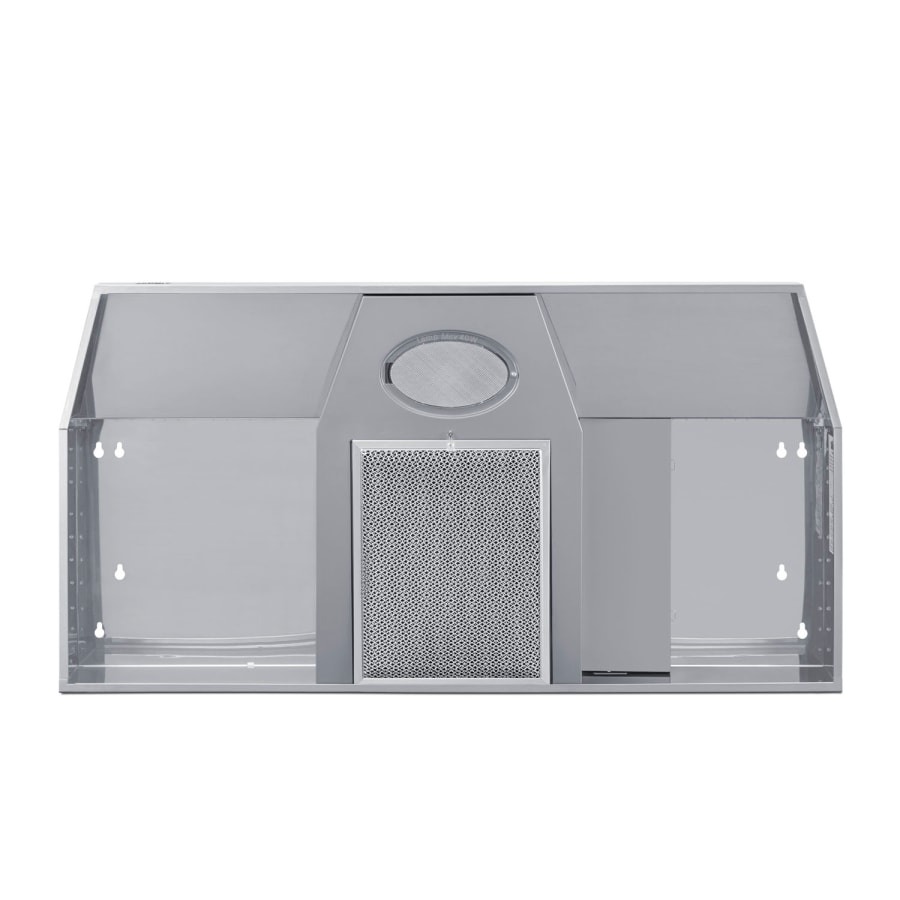

This hood is convertible for horizontal or vertical ducted ventilation or ductless/recirculating ventilation where no exhaust connection to the outside is available. It ships ready for standard 3 1/4″ x 10″ rectangular ducting, but it can be used with a round 6″ or 7″ duct with the addition of a transition (not included). Comes with a metal mesh filter to catch grease and a charcoal filter to absorb smoke and odors when using in recirculating applications. This unit does not include a power cord and is designed to be hard-wired by a licensed professional.
Features:
Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines

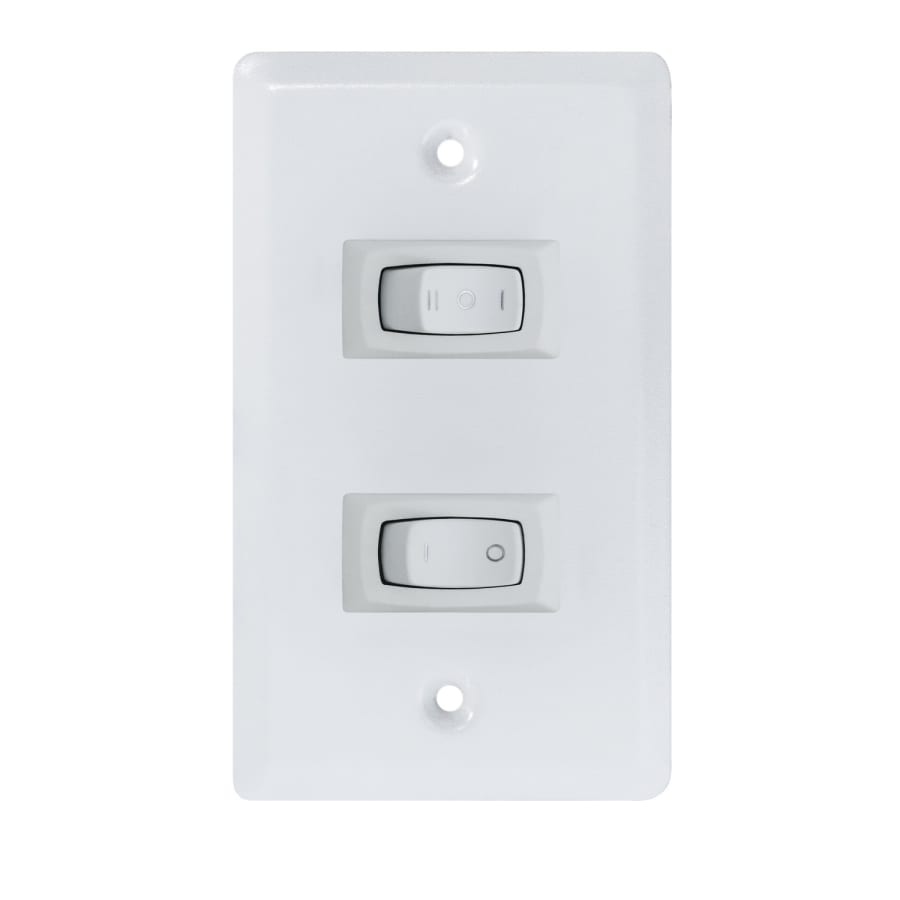

Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included
Low profile design offers a classic way to finish your kitchen
Sized for use over 36 inch cooking surfaces (additional sizes available)
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute
Ships for standard 3 1/4″ x 10″ vertical or horizontal exterior venting and convertible to a 6″ or 7″ round vertical venting with a transition (not included)
Durable construction in an attractive style with a horizontal grain
High and low setting to allow proper ventilation of your kitchen as needed
Covered under a 1 year parts and labor manufacturer warranty
Specifications:
Nominal Width: 36″
Width: 35-7/8″
Height: 5-1/8″
Depth: 18-5/8″
Duct Size: 3-1/4″ x 10″
Height Above Cooktop: 24″ to 30″
Voltage: 115V
Additional Summit Links
View the Manufacturer Warranty
Browse all Summit Products
Specifications
| Material | Stainless Steel |
| Insulation Type | Full Installation |
| Number of Bulbs | 1 |
| Bubbler Type | Incandescent |
| Panel Ready | No |
| Smart Home | No |
| Control Type | Knob |
| Blower Type | Internal |
| Fingerprint Resistant | No |
| Duct Discharge | Horizontal, Vertical |
| Filter Type | Carbon Filters, Mesh Filters |
| ADA | Yes |
| Approved for Commercial Use | No |
| Manufacturer Warranty | 1 Year Parts and Labor |
| Country Of Origin | China |
| Certifications | ETL |
| Outdoor Approved | No |
| Title 20 Compliant | Yes |
| Energy Star | No |
| Height | 5.13 in. |
| Depth | 18.63 in. |
| Width | 35.88 in. |
| Product Weight | 13 lbs. |
| Nominal Width | 36 in. |
| Duct Size | 3-1/4" x 10" |
| Height Above Cooktop | 24" to 30" |
| Height Above Cooktop (Max) | 30 in. |
| Height Above Cooktop (Min) | 24 in. |
| Bulb Included | No |
| Light Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | Yes |
| Includes Remote | Yes |
| Voltage | 115 |
| Frequency | 60 Hertz |
| Speeds | 2 |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
