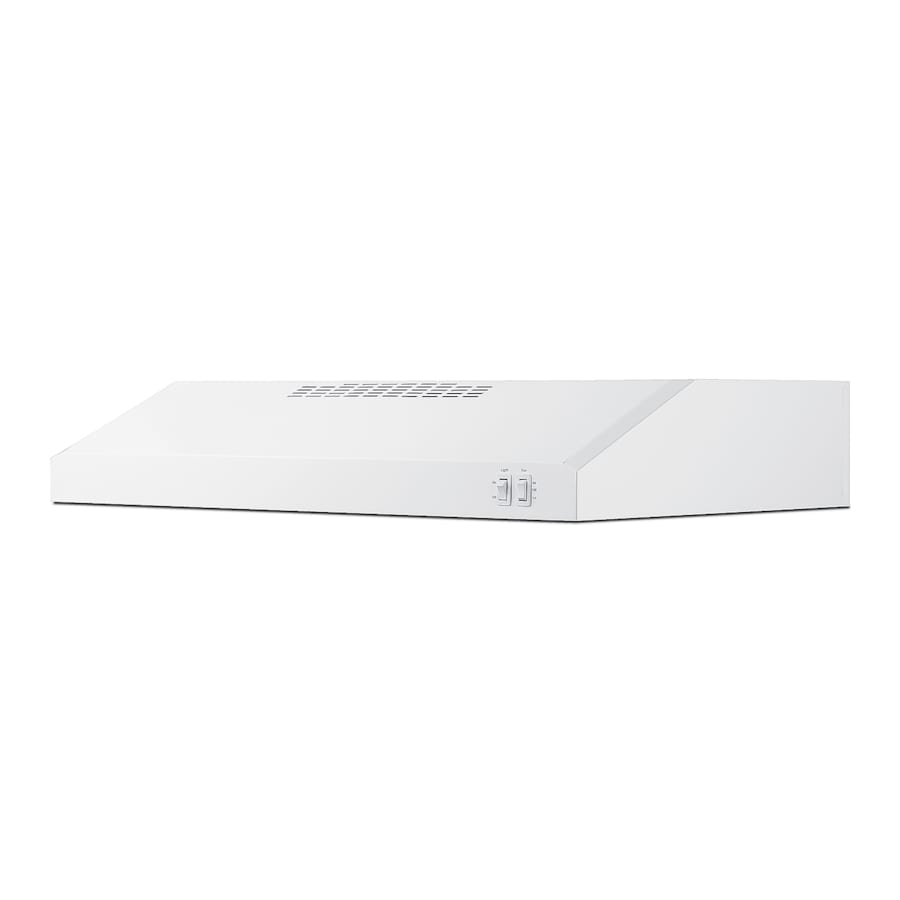

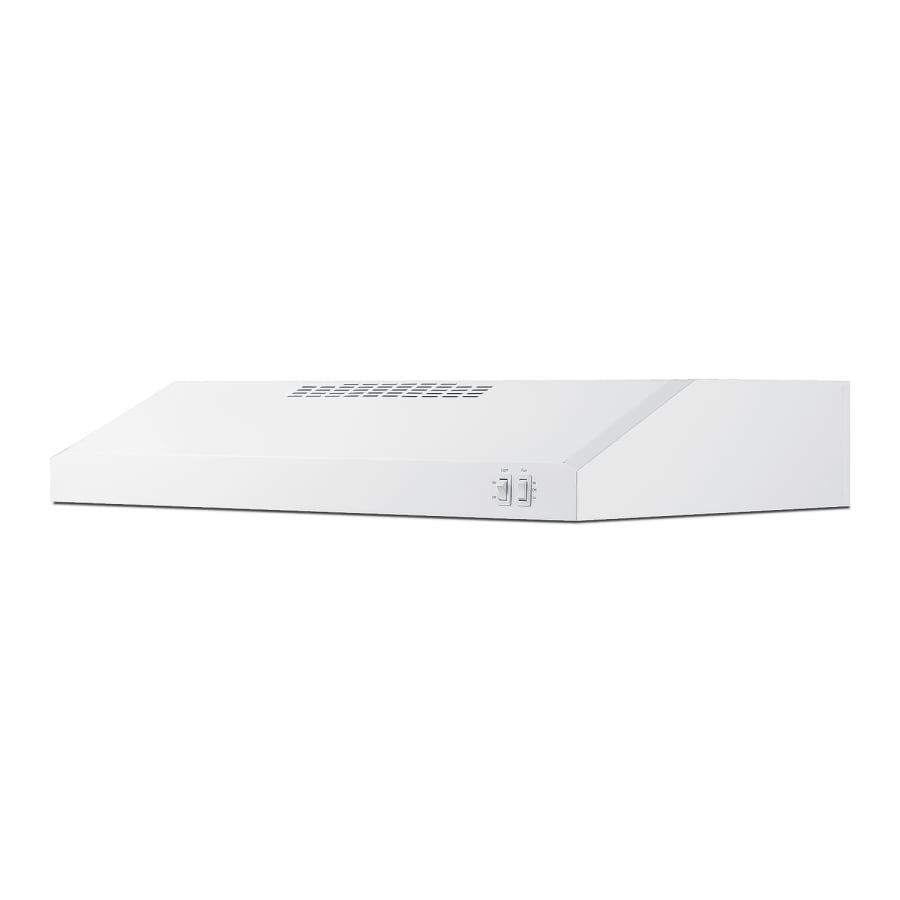

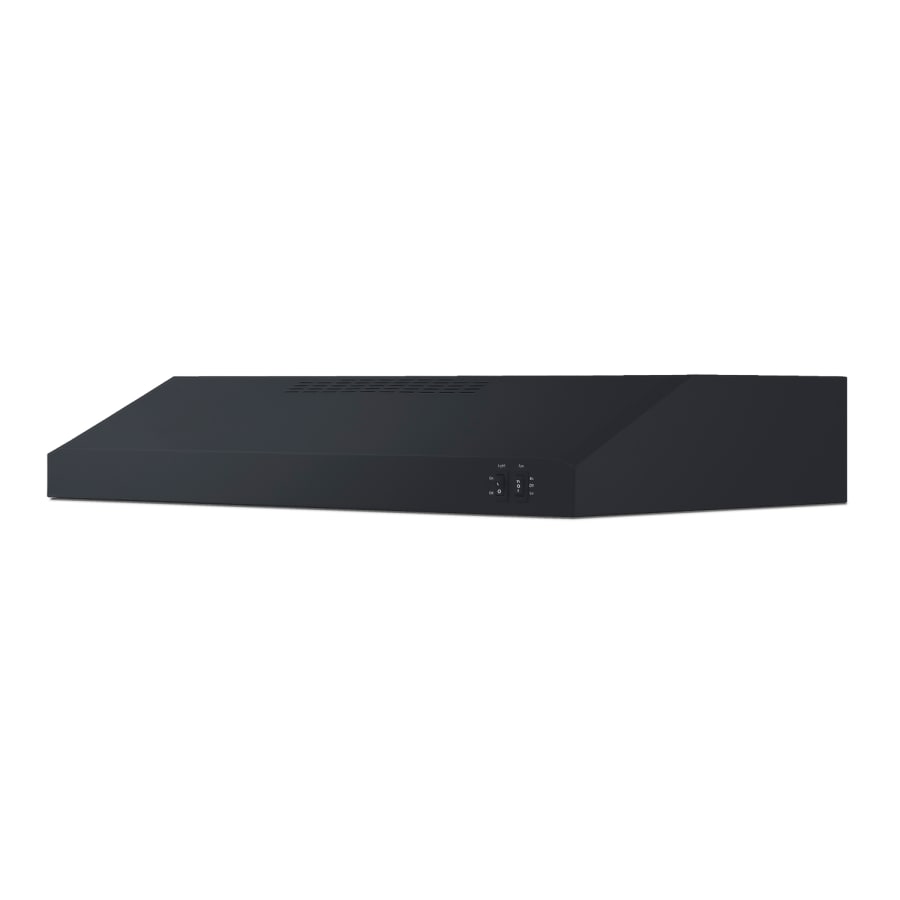

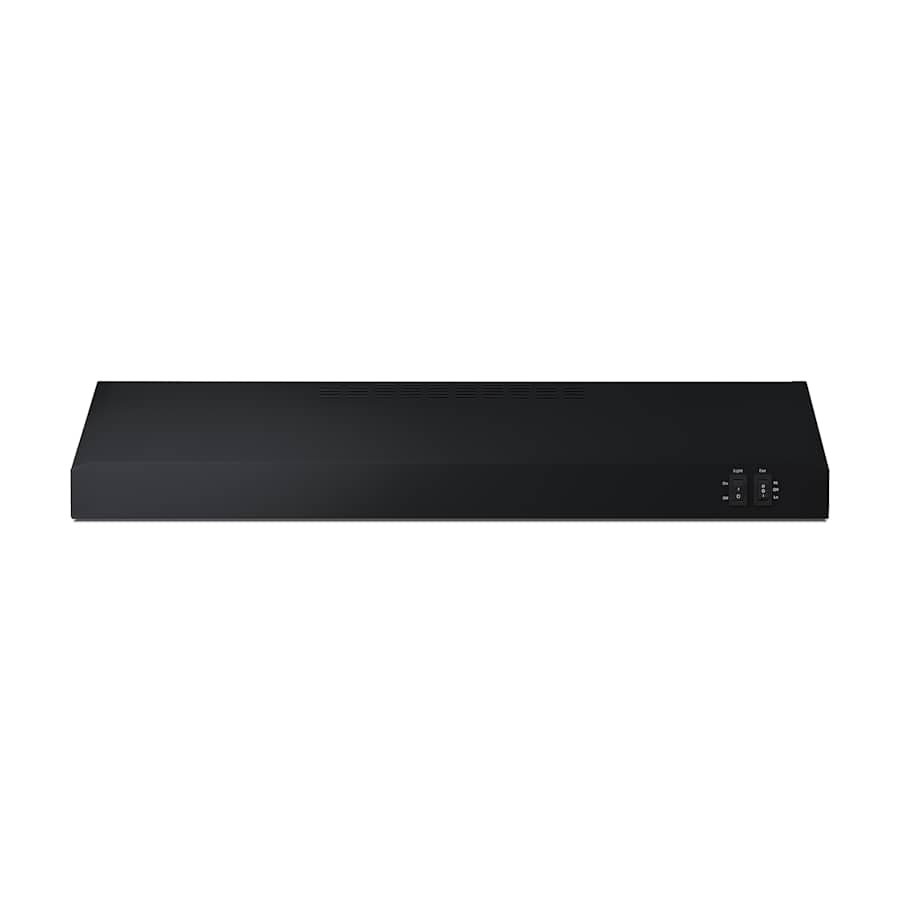

Made in North America, Summit’s HC series under cabinet convertible range hoods offer versatile ventilation solutions for every kitchen space.

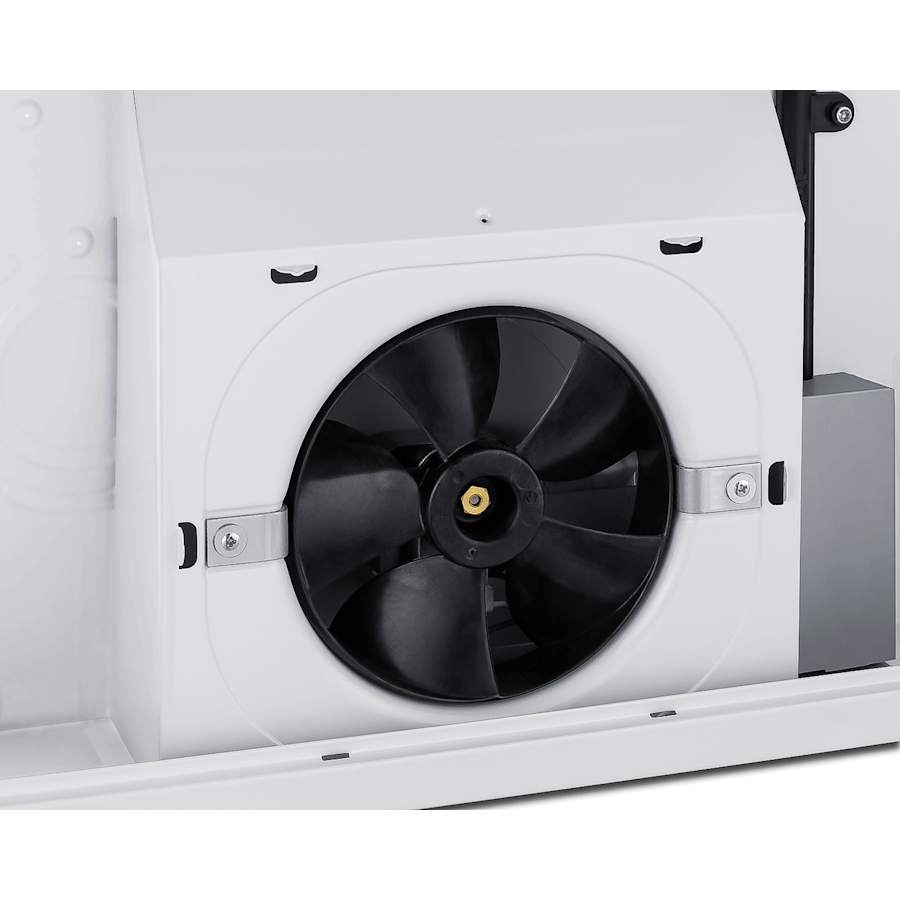

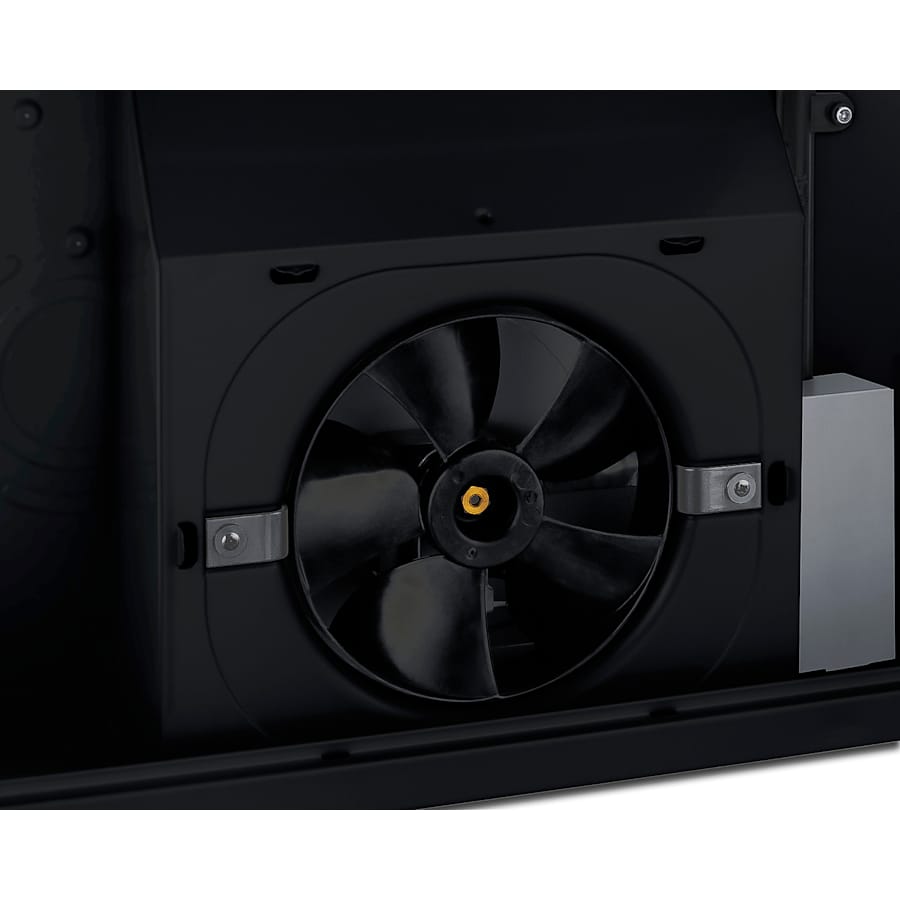

This model is a 30″ wide range hood ideal. The powerful 2-speed fan is easily managed by a rocker switch with a high and low setting. This unit can operate at 300 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won’t blow towards the home chef.

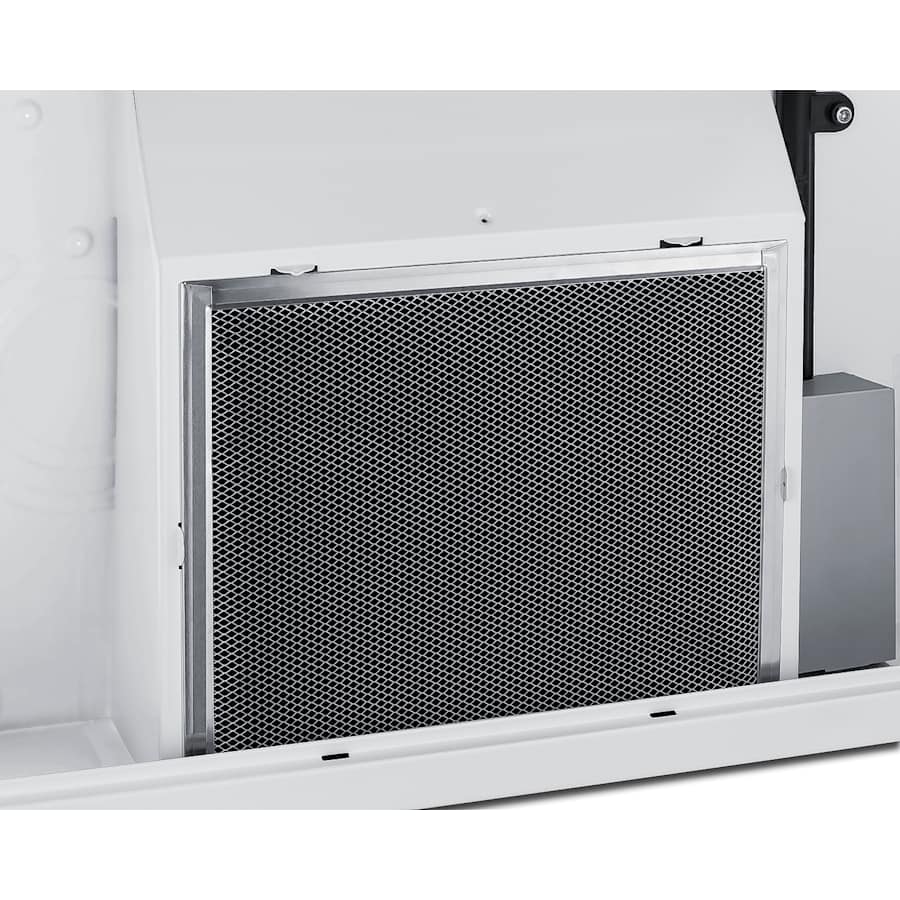

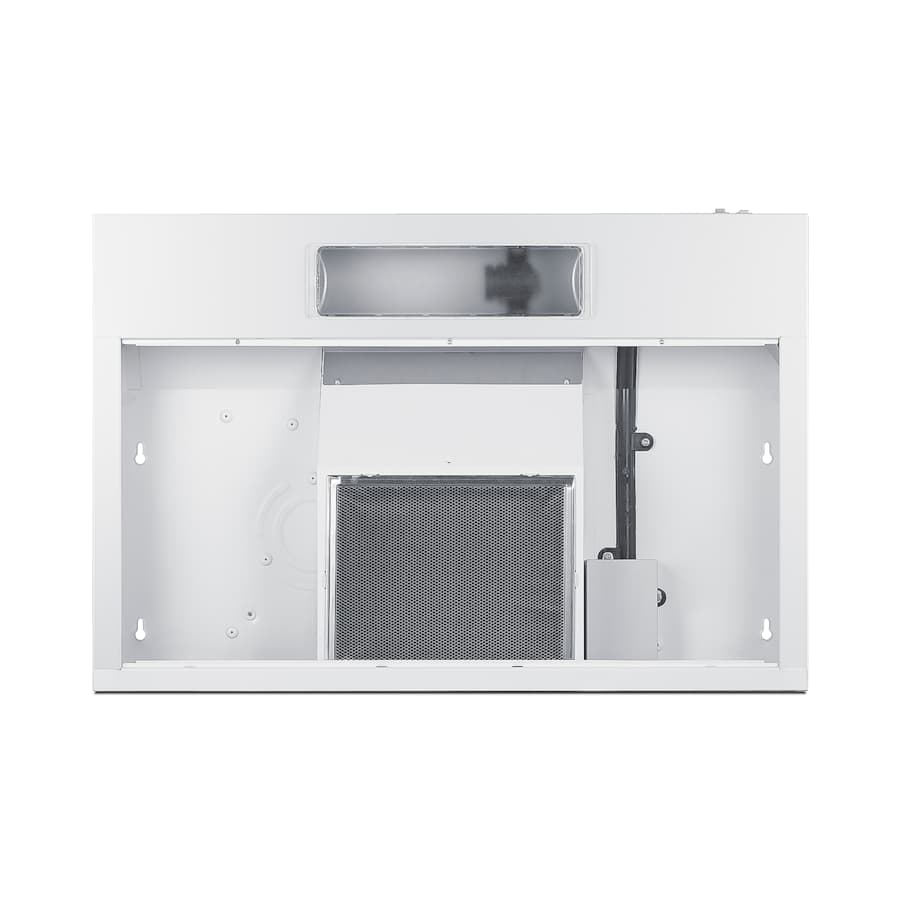

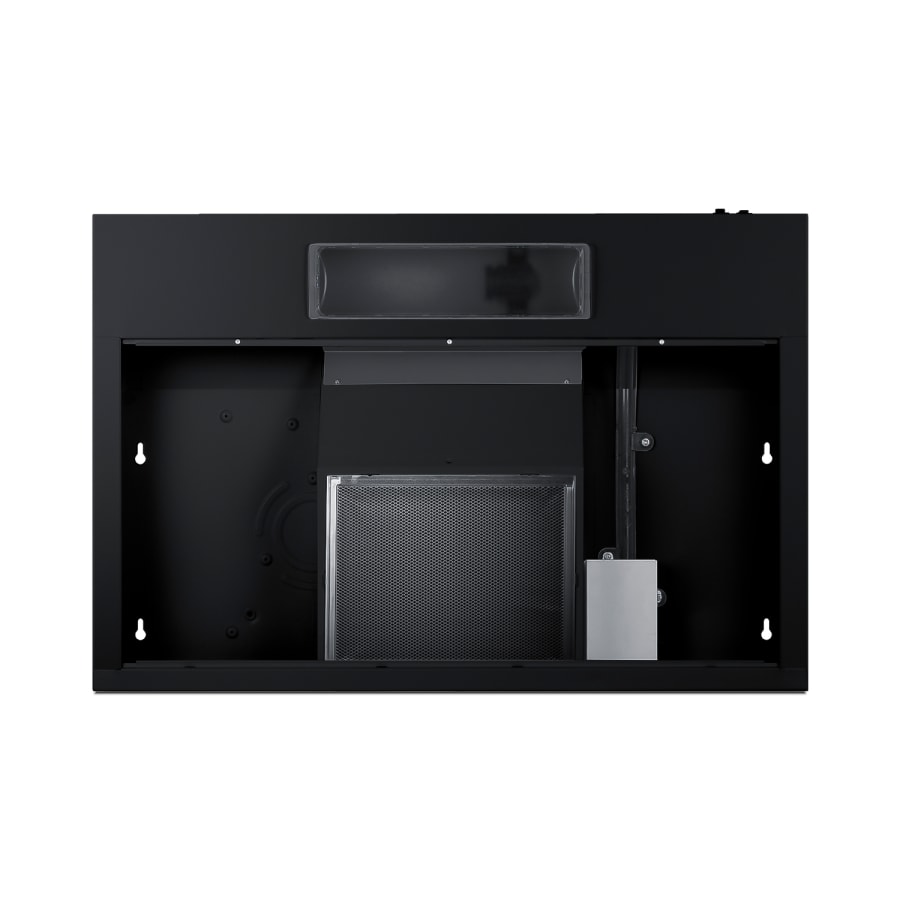

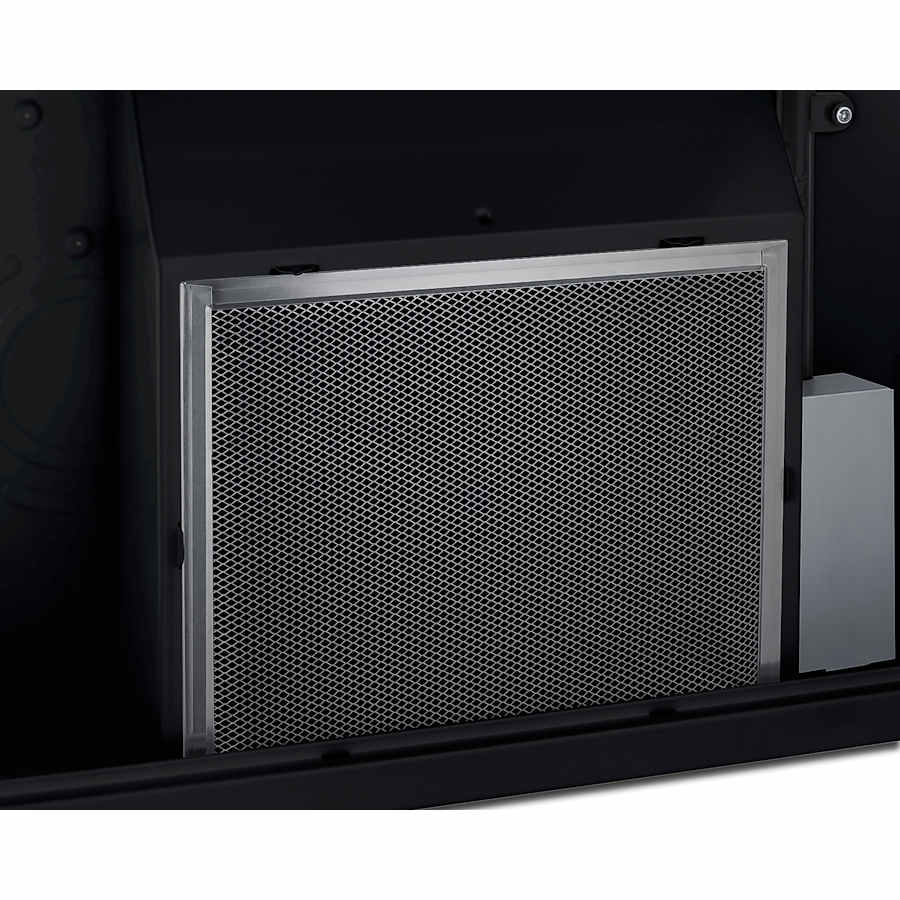

This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4″ x 10″ rectangular ducting or 7″ round, transition required). Comes with a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional.
Features:
Low profile design offers classic style to finish your kitchen
Sized for use over 30 inch cooking surfaces (additional sizes available)
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
Can operate at 300 CFM to ensure thorough ventilation of your cooking surface
Ships pre-set for recirculating mode but can be converted in a few simple steps

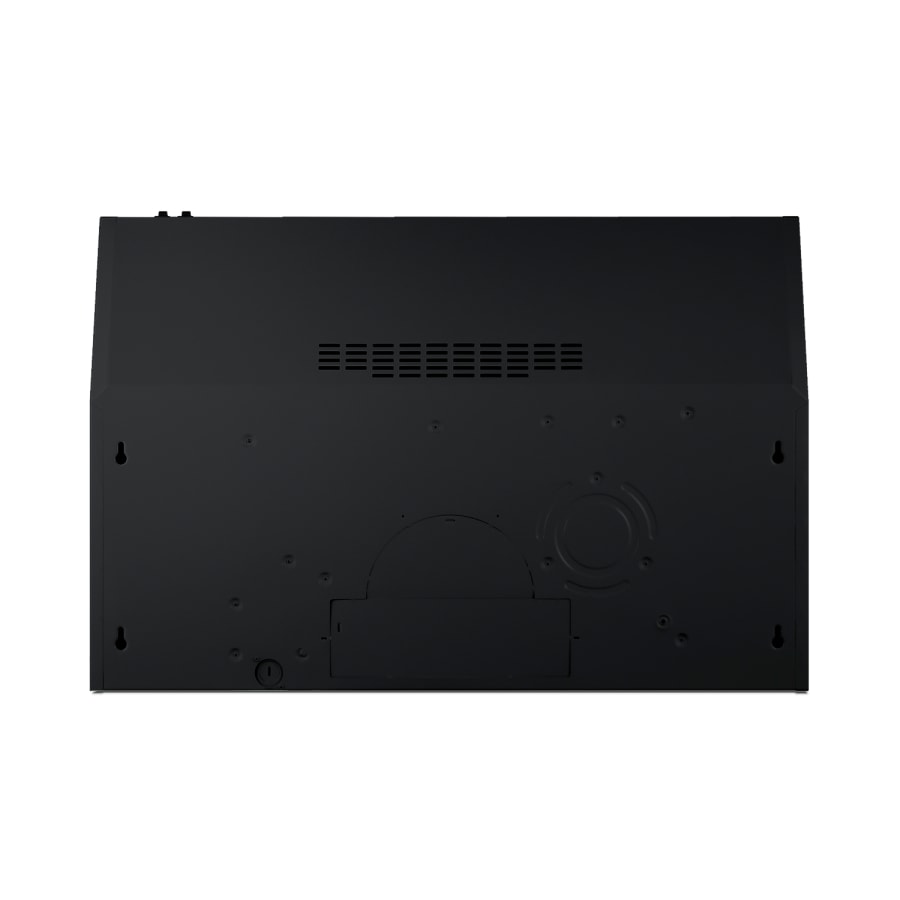

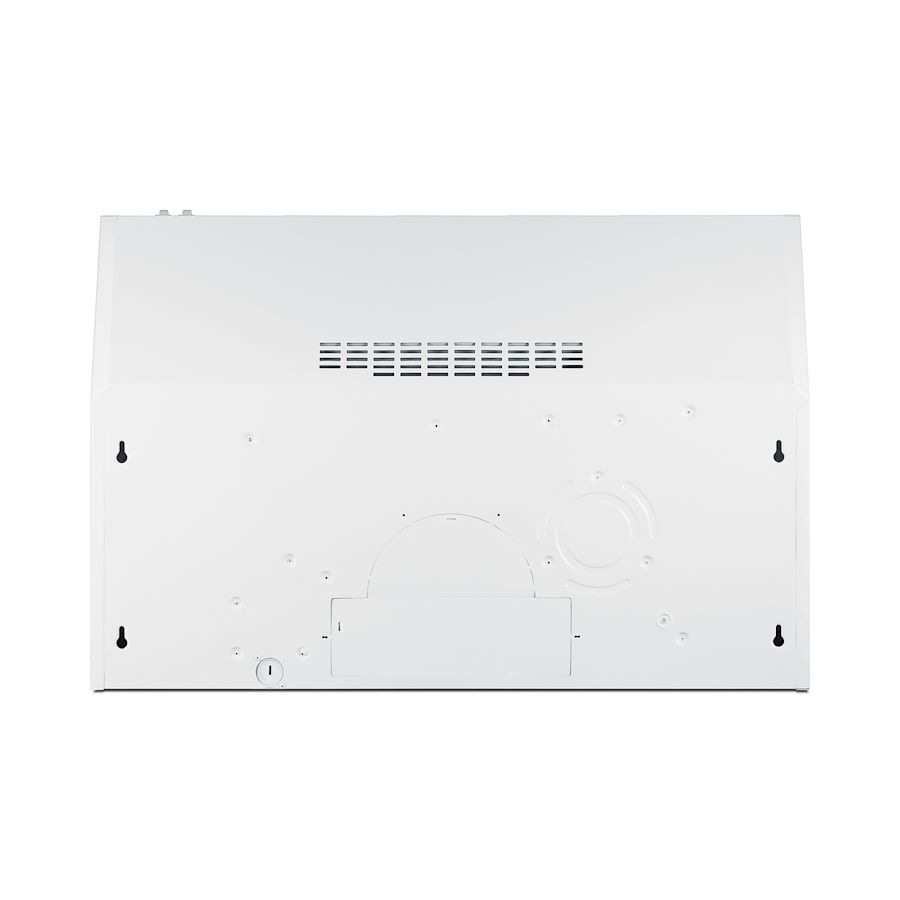

Can be connected to 3 1/4″ x 10″ vertical or horizontal exterior venting or 7″ round vertical (transition required for both)
Powder-coated finish over steel that’s 53% heavier gauge than most of the industry’s undercabinet hoods
Vents are set at a slight upwards angle, ensuring smoke and odors won’t be directed towards the user
Covered under a 1 year parts and labor manufacturer warranty
Specifications:
CFM: 300
Sones: 6
Nominal Width: 30″
Width: 29-7/8″
Height: 5-1/2″
Depth: 20″
Duct Size: 3-1/4″ x 10″
Height Above Cooktop: 24″ to 30″
Amperage: 1.7A
Voltage: 115V
Additional Summit Links
View the Manufacturer Warranty
Browse all Summit Products
Specifications
| Height | 5.5 in. |
| Width | 29.88 in. |
| Nominal Width | 30 in. |
| Depth | 20 in. |
| Product Weight | 13 lbs. |
| Duct Size | 3-1/4" x 10" |
| CFM | 300 |
| Height Above Cooktop | 24" to 30" |
| Height Above Cooktop (Min) | 24 in. |
| Height Above Cooktop (Max) | 30 in. |
| Certifications | UL |
| Approved for Commercial Use | No |
| ADA | No |
| Country Of Origin | Mexico |
| Energy Star | No |
| Manufacturer Warranty | 1 Year Parts and Labor |
| Outdoor Approved | No |
| Title 20 Compliant | Yes |
| Bulb Included | No |
| Light Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | Yes |
| Includes Remote | No |
| Number of Bulbs | 1 |
| Insulation Type | Full Installation |
| Material | Metal |
| Smart Home | No |
| Bubbler Type | Incandescent |
| Control Type | Knob |
| Blower Type | Internal |
| Duct Discharge | Horizontal, Vertical |
| Filter Type | Carbon Filters, Mesh Filters |
| Panel Ready | No |
| Fingerprint Resistant | No |
| Amperage | 1.7 |
| Voltage | 115 |
| Speeds | 2 |
| Frequency | 60 Hertz |
| Sones | 6 |
| Color | Black, White |
