Please note: product image shows right hand door swing but will ship with left hand door swing

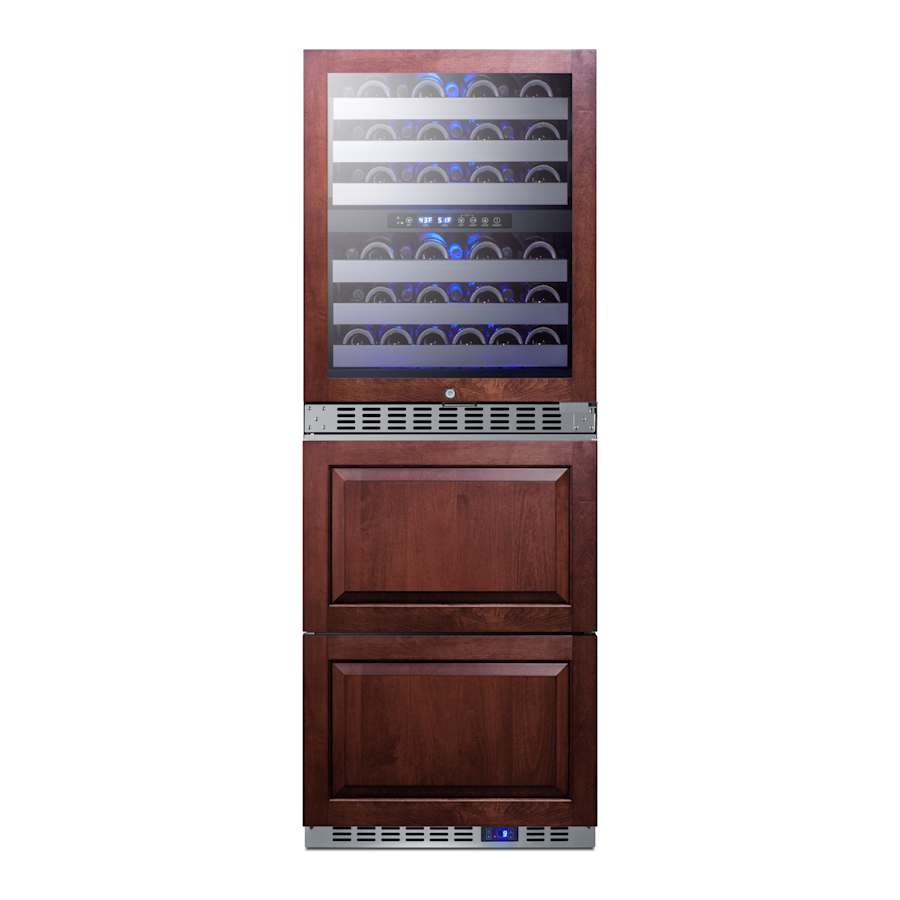

Summit brings an innovative, elegant solution to store wine and food with its combination two-zone wine cellar and two-drawer freezer – the perfect entertainment station for the home.
Sized at just under 24″ wide, the SWCDAF24PNR combines the 46 bottle capacity two-zone wine cellar (model ALWC532PNR)with the 3.4 cu. ft. two-drawer freezer (model SCFF532D) into one complete refrigeration station. The front-breathing design allows built-in installation, while the stainless steel cabinet affords freestanding use in a durable design. The sealed back offers added space savings when placing the unit, while the included 6′ Y-shaped NEMA 5-15P cord with a 3-prong right angle plug allows users to operate both units from one outlet without added depth. The wine cellar door frame and freezer drawer fronts can be customized with overlay panels to match or accent an existing cabinetry design. Users provide their own handles to complete the look. An anti-tip bracket is included and recommended for use to avoid forward tipping. For user convenience, this model ships fully assembled.
The upper two-zone wine cellar has double-pane tempered glass door featuring a seamless stainless steel door for a modern look, while a factory-installed lock offers security as needed. Inside, automatic defrost operation ensures minimal user maintenance. It is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper-temperature zone between 41°F and 50ºF for white wine, while the lower zone is designed to store red wine between 50°F and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for convenient loading. Both zones include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.
The bottom two-drawer freezer features complete stainless steel construction inside and out for long-lasting durability in an easy-to-clean design. The digital thermostat makes it simple to manage the interior temperature. An internal fan ensures both drawers are evenly cooled. Two adjustable dividers allow you to separate the drawer compartments into two or four zones to accommodate a variety of sizes. A sliding chrome basket offers additional storage convenience as needed, while the LED lighting makes it easy to view interior contents when loading or unloading both drawers. Additional features include a high-temperature alarm and an open drawer alarm for added peace of mind. Sabbath Mode disables certain electrical features during periods of religious observance, while a temperature memory function helps to recover all settings in the event of power loss.
Offering complete refrigeration convenience in a slim-fitting design, the SWCDAF24PNR is ideal for home bars, kitchens, and similar residential settings seeking to store wine, beverages, and food in a modern style.
Note: Panels are not included. The images provided are meant only to be suggestive of what the product with wood panels installed could look like. Users must supply their own wood panels.
Features:
Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar and two-drawer freezer, perfect for home bars, kitchens, and similar residential spaces
Flexible design allows built-in or freestanding use in 24″ wide spaces
Panel-ready door trim & drawer fronts can accept overly panels for a truly customizable look
Store and display up to 46 bottles of your favorite wine in two distinct temperature zones
Freezer has complete stainless steel construction for luxury built to last
Specifications:
Bottle Capacity: 46
Total Capacity: 3.4 Cu. Ft.
Number of Shelves: 6
Number of Cooling Zones: 3
Shelf Material: Wire
Installation Type: Built-In, Free Standing
Leveling Legs: No
Door Lock: Yes
Product Weight: 229 lbs.
Depth: 23-1/2″
Height: 65-5/8″
Width: 23-5/8″
Additional Summit Links
View the Manufacturer Warranty
Browse all Summit Products
Specifications
| Height | 65.63 in. |
| Nominal Height | 66 in. |
| Width | 23.63 in. |
| Depth | 23.5 in. |
| Nominal Width | 24 in. |
| Product Weight | 229 lbs. |
| Nominal Depth | 24 in. |
| Total Capacity | 3.4 cu. ft. |
| Depth with Door Open | 45.75 in. |
| Depth without Handles | 25.5 in. |
| Voltage | 115 |
| Wattage | 235.75 |
| Amperage | 2.05 |
| Frequency | 60 Hertz |
| Temperature (Max) | 64 °F |
| Temperature (Min) | 41 °F |
| Annual Energy Consumption (kWh) | 405 |
| Number of Zones | 3 |
| ADA | No |
| Country Of Origin | China |
| Manufacturer Warranty | 1 Year Parts and Labor |
| Outdoor Approved | No |
| Approved for Commercial Use | No |
| Certifications | ETL, CSA |
| Title 20 Compliant | Yes |
| Annual Operation Cost | 52 US Dollars |
| Bubbler Type | LED |
| Insulation Type | Built-In, Free Standing |
| Smart Home | No |
| Number Of Shelves | 6 |
| Panel Ready | Yes |
| Door Features | Door Alarm, Door Lock, Glass Door |
| Leveling Legs | No |
| Sabbath Mode | Yes |
| Counter Depth | No |
| Defrost Type | Automatic |
| Door Swing | Left |
| Shell Material | Wire |
| Control Type | Compressor |
| Refrigerant | R-600A |
| Adjustable Shelves | No |
| Automatic Door Closer | No |
| Removable Shelves | No |
| Temperature Display | Yes |
| Wine Bottle Capacity (750 ml) | 46 |
| With Casters | No |
| Light Included | Yes |
| Humidity Control | No |
| Glass Doors | Yes |
| Color | Panel Ready |
| Color Tone | Whites |
