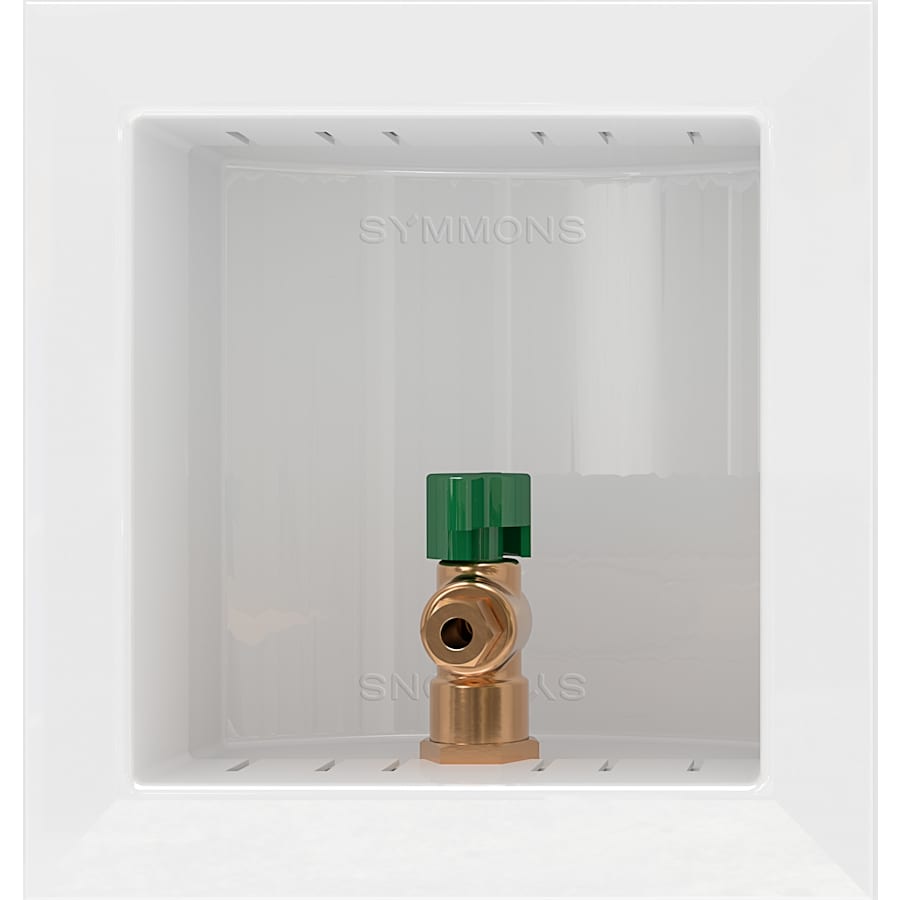

Symmons IceMate Supply Box with Valve

The Symmons IceMate ice maker box was designed to supply water to most refrigerators with ice makers and water dispensers. The IceMate box can be installed within a 16 inch stud bay with the heavy duty metal mounting straps or direct mounted to studs. The supply box is made of PVC with a paintable faceplate that accommodates up to two layers of 5/8 inch drywall. The quarter turn ball valve has a ½ inch sweat inlet and a ¼ inch compression outlet. The IceMate ice maker box is backed by the Symmons limited lifetime consumer warranty and 10 year warranty for commercial use.

Symmons IM600 Features:

Ice maker supply box with brass valve
Installation straps for 16 inch on center stud mounting or direct to stud mounting
Valve can be installed as bottom or top supply
Accommodates up to two layers of 5/8 inch drywall
½ inch copper sweat inlet with ¼ inch compression outlet
Quarter turn ball valve with lever shutoff
