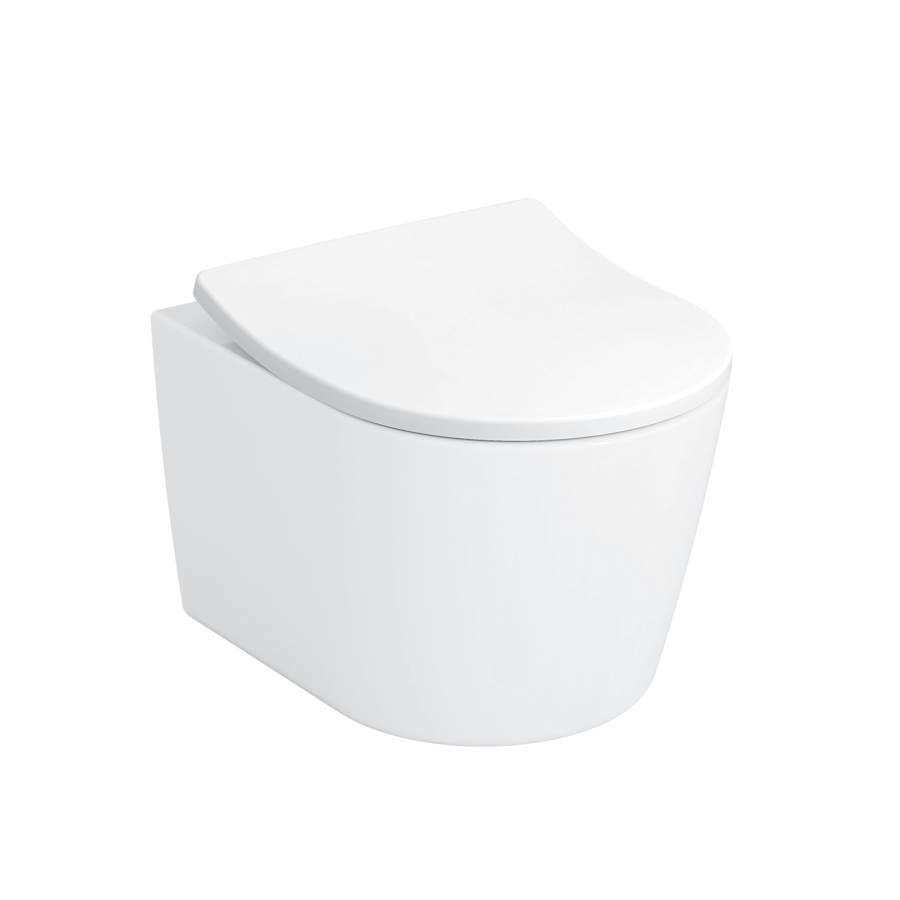

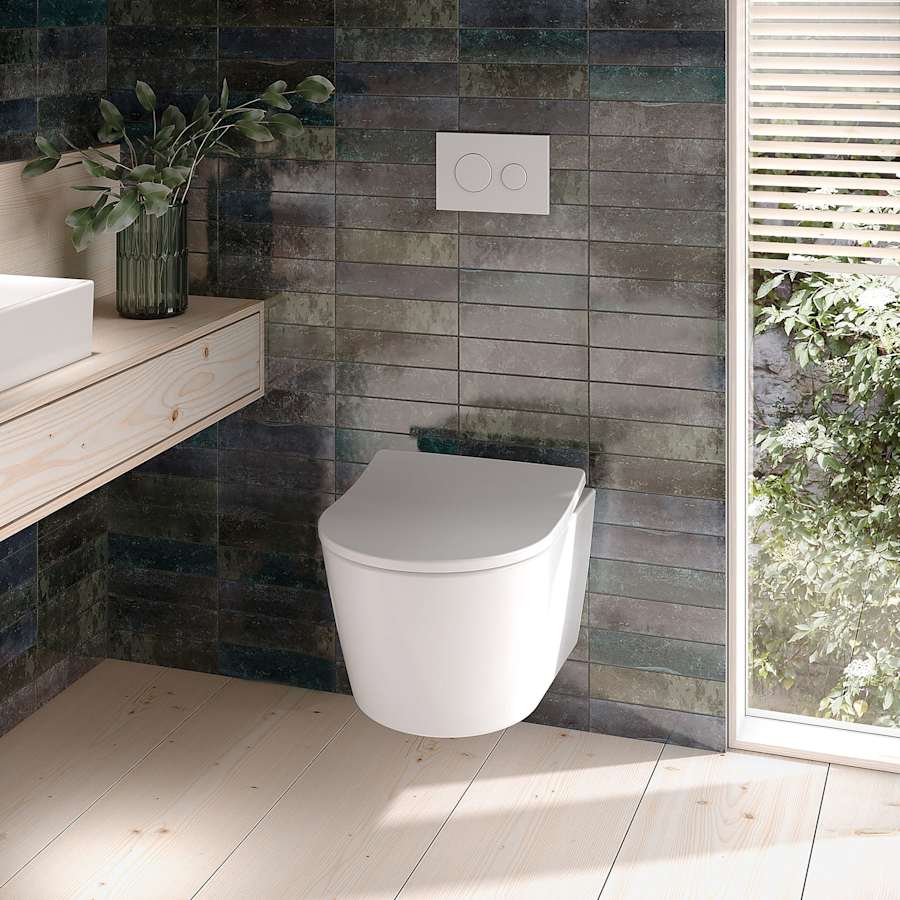

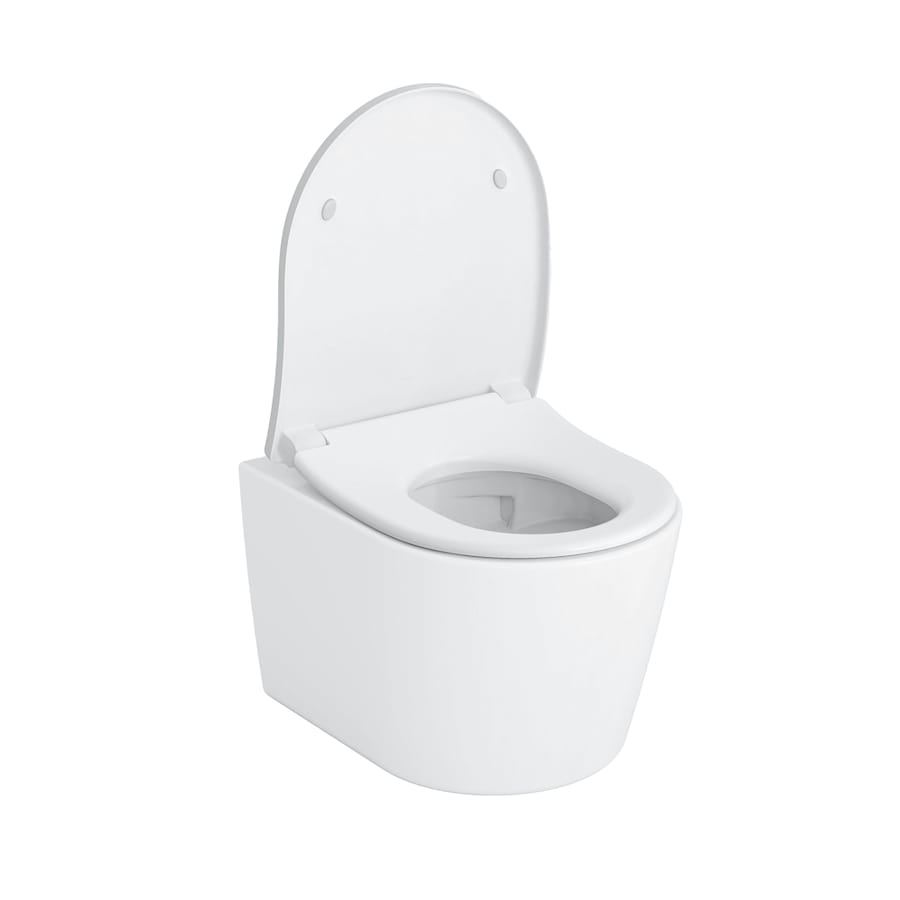

The TOTO RP Compact Wall-Hung D-Shape Toilet and DuoFit in-wall 0.9 and 1.6 GPF Tank System with Copper Supply line is a complete toilet system designed for luxury within tight spaces. The in-wall system provides you with the opportunity to save up to 9 inches of valuable floor space within your bathroom. The compact D-Shape design of the RP bowl allows for extra space savings without compromising the comfort of a traditional elongated seat. The RP Compact bowl features a skirted design that is not only easier to clean but provides a sleek and modern aesthetic. The DuoFit in wall tank system help makes conservation easy by providing a dual flush system with TOTO’s highly efficient DYNAMAX TORNADO FLUSH. The DYNAMAX TORNADO FLUSH has a hole-free rim design that generates a centrifugal, cyclonic rinsing action with the option of 0.9 or 1.28 gallons of water. The RP bowl is coated with TOTO’s CEFIONTECT ceramic glaze that creates a slick surface to help prevent waste from sticking and keep the bowl cleaner for longer. This feature, coupled with the DYNAMAX TORNADO FLUSH, assists to reduce the frequency of toilet cleanings, minimizing the usage of water, harsh chemicals, and time required for cleaning. The DuoFit harness allows you to select a mounting height of 15 to 19 inches. This provides the opportunity for you to establish a comfortable bowl height for a wide array of individuals. The in-wall unit can support up to 880lbs when installed properly. The kit arrives ready to be installed within a 2” x 6” stud setting. If you require installation within a 2” x 4” setting, you will need to additionally purchase TOTO’s 2” x 4” PVC outlet kit (THU343). This comes with a copper supply and a 2” x 6” polyethylene waste outlet. Included parts: DuoFit in-wall tank, RP bowl, Slim Softclose seat, and white push plate.
Details:
Compact design creates space savings without compromising comfort or style
Fully integrated in-wall toilet and tank system
TOTO’s extraordinarily smooth CEFIONTECT bowl glaze coating helps prevent waste from sticking to the bowl
High-Efficiency DYNAMAX TORNADO dual flushing system
Dual-Max flush promotes water conservation with a 0.9 or 1.28 GPF option
Skirted bowl design for easier cleaning
Additional TOTO Links
View the Manufacturer Warranty
Browse all TOTO Products
Specifications
| Depth | 19.25 in. |
| Height | 53.25 in. |
| Width | 25.4 in. |
| Product Weight | 110 lbs. |
| Bowl Height | 12.75 in. |
| Gallons Per Flush | 0.9, 1.28 |
| Trapway | 2.125 in. |
| Material | Vitreous China |
| Insulation Type | Wall Mounted |
| Bowl Shape | Elongated |
| Design Features | Dual Flush, Concealed Trapway, Soft Close |
| Trip Lever Placement | Wall |
| Water Efficient | Yes |
| Approved for Commercial Use | No |
| Collection | RP Wall Hung |
| CA Drought Compliant | Yes |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| TX Drought Compliant | Yes |
| WaterSense Certified | Yes |
| Color | Cotton White, Matte Silver |
