Toto MS814224CEFG Features:
One-piece elongated configuration provides a uniform look and simplifies installation
Elongated bowl provides extra comfort, extending out an extra 1-1/2″ compared to a round configuration
Covered under Toto’s 1 year limited warranty
Made from vitreous china
Floor mounted installation
ADA Compliant
WaterSense certified – toilet uses 20% less water than the current standard while maintaining superior performance
Toto MS814224CEFG Technologies / Benefits:
CeFiONtect™: TOTO’s extraordinarily smooth CeFiONtect™ glaze prevents particulates from adhering to porous, ceramic surfaces. The ion-barrier in CeFiONtect™ keeps everything cleaner, longer. Less cleaning means fewer chemicals in the environment and less water used for cleaning.
Tornado Flush™: The Tornado Flush™ features two powerful nozzles that create a centrifugal, cyclonic rinsing action which reduces waste buildup and keeps the bowl cleaner. Using only 1.28 gallons per flush, this high-efficiency system is more effective in one flush than most toilets are with multiple flushes. The modern hole-free rim design means that it performs more consistently and is easy to clean.
Toto MS814224CEFG Specifications:
Overall Height: 29-1/4″ (bottom of the base to the highest point on the toilet)
Overall Depth: 28.5″ (back of the tank to the front of the rim)
Overall Width: 16-1/4″ (furthest point on the left to the furthest on the right)
Bowl Height: 16-1/4″ (bottom of the base to the rim)
Flow Rate: 1.28
Water Area: 9″ x 6-3/4″ (inner rim dimensions length X width)
Tank Width: 16-1/4″ (left most to right most points on tank)
Trapway (Discharge Passageway) Size: 2-1/8″
Rough-In: 12″
Additional TOTO Links
View the Manufacturer Warranty
Browse all TOTO Products
TOTO Promenade II Collection
Specifications
| Manufacturer Warranty | 1 Year Limited |
| Approved for Commercial Use | No |
| Collection | Promenade II |
| Certifications | UPC, ASME, CSA |
| ADA | Yes |
| CA Drought Compliant | Yes |
| WaterSense Certified | Yes |
| ASSE Code | A112.19.2 |
| CSA Code | B45.1 |
| TX Drought Compliant | Yes |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Width | 16.25 in. |
| Depth | 28.5 in. |
| Height | 29.25 in. |
| Flush Valve Size | 2.125 in. |
| Gallons Per Flush | 1.28 |
| Rough In | 12 in. |
| Bowl Height | 16.25 in. |
| Water Area | 9 x 6.75 |
| Thermostat | Traditional |
| Insulation Type | Floor Mounted |
| Configuration | One Piece |
| Flush Type | Gravity Flush |
| Trip Lever Finish | Chrome |
| Trip Lever Placement | Left |
| Bowl Shape | Elongated |
| Design Features | Glazed Trapway, Soft Close, Chair Height |
| Seat Front | Closed |
| Branded Surface Treatment | CeFiONtect™ Glaze |
| Seat Included | Yes |

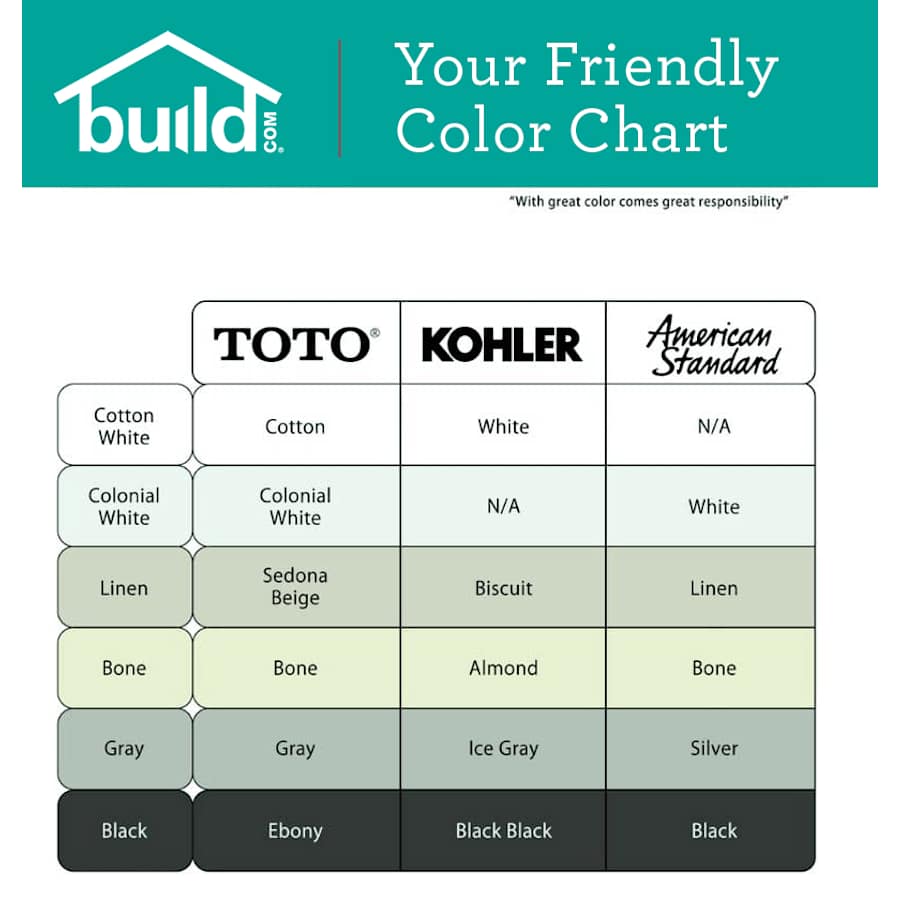

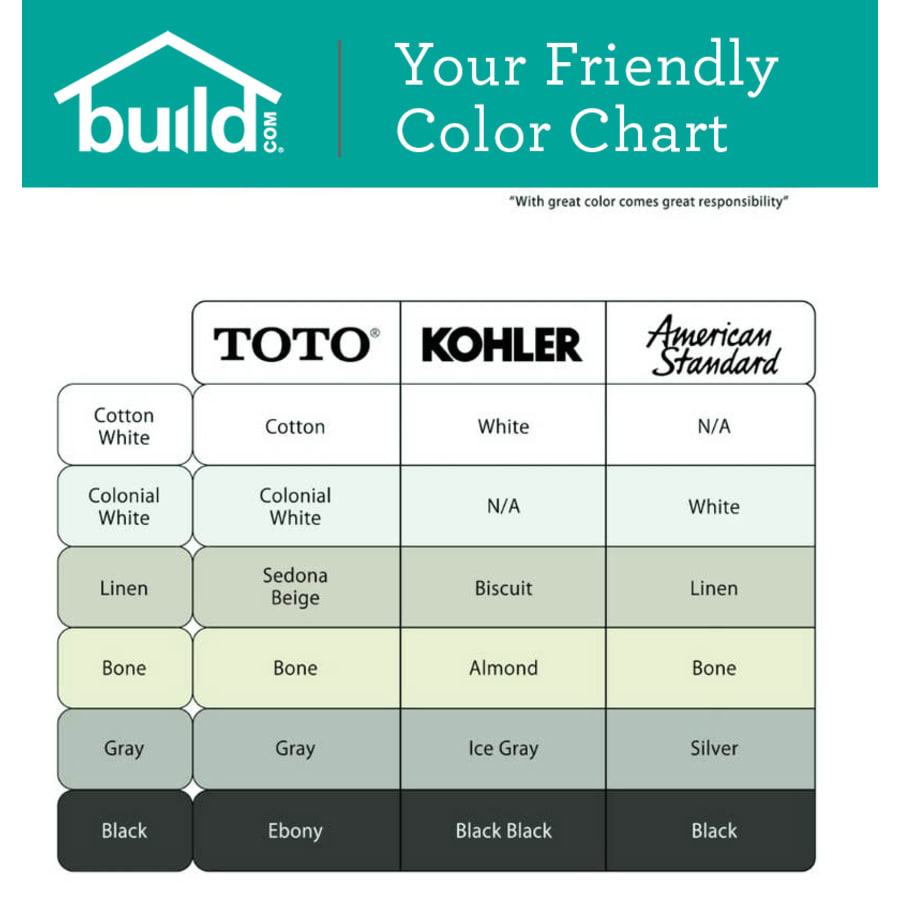

| Color | Bone, Colonial White, Cotton, Sedona Beige |
