Toto MS854114 Features:
One-piece configuration provides a uniform look and simplifies installation
Elongated bowl provides extra comfort, extending out an extra 1-1/2″ compared to a round configuration
Covered under Toto’s 1 year limited warranty
Made from vitreous china
Floor mounted installation
The Ultimate Suite: Matching toilets and lavatories
Power Gravity: A powerful and quiet flush, every time
Complete with SoftClose seat
Fast Flush: Wide 3″ flush valve is 125% larger than conventional 2″ flush valves
Wider, 2 1/8″ computer designed, fully glazed trapway
Large water surface area
Toto MS854114 Specifications:
Overall Height: 27-3/16″ (bottom of the base to the highest point on the toilet)
Overall Depth: 28-1/8″ (back of the tank to the front of the rim)
Overall Width: 16-5/8″ (furthest point on the left to the furthest on the right)
Bowl Height: 14-9/16″ (bottom of the base to the rim)
Flow Rate: 1.6 gallons-per-flush
Water Area: 10-1/4″ x 8-1/4″ (inner rim dimensions length X width)
Water Depth: 5-7/8″
Tank Width: 16-5/8″ (left most to right most points on tank)
Tank Depth: 6-3/16″ (back most to front most points on tank)
Trapway (Discharge Passageway) Size: 2-1/8″
Rough-In: 12″
Distance Between Toilet Seat Installation Holes: 5-1/2″
Toto MS854114 Varitations:
MS854114 – This model
MS854113 – This model with round bowl
Additional TOTO Links
View the Manufacturer Warranty
Browse all TOTO Products
TOTO Ultimate Collection
Specifications
| Height | 27.1875 in. |
| Width | 16.625 in. |
| Depth | 28.125 in. |
| Hinge Center to Center | 5.5 in. |
| Product Weight | 91.00 lbs. |
| Gallons Per Flush | 1.6 |
| Bowl Height | 14.5625 in. |
| Flush Valve Size | 3 in. |
| Rough In | 12 in. |
| Trapway | 2.13 in. |
| Thermostat | Basic |
| Bowl Shape | Elongated |
| Design Features | Glazed Trapway, Soft Close |
| Material | Vitreous China |
| Seat Front | Closed |
| Insulation Type | Floor Mounted |
| Configuration | One Piece |
| Flush Type | Gravity Flush |

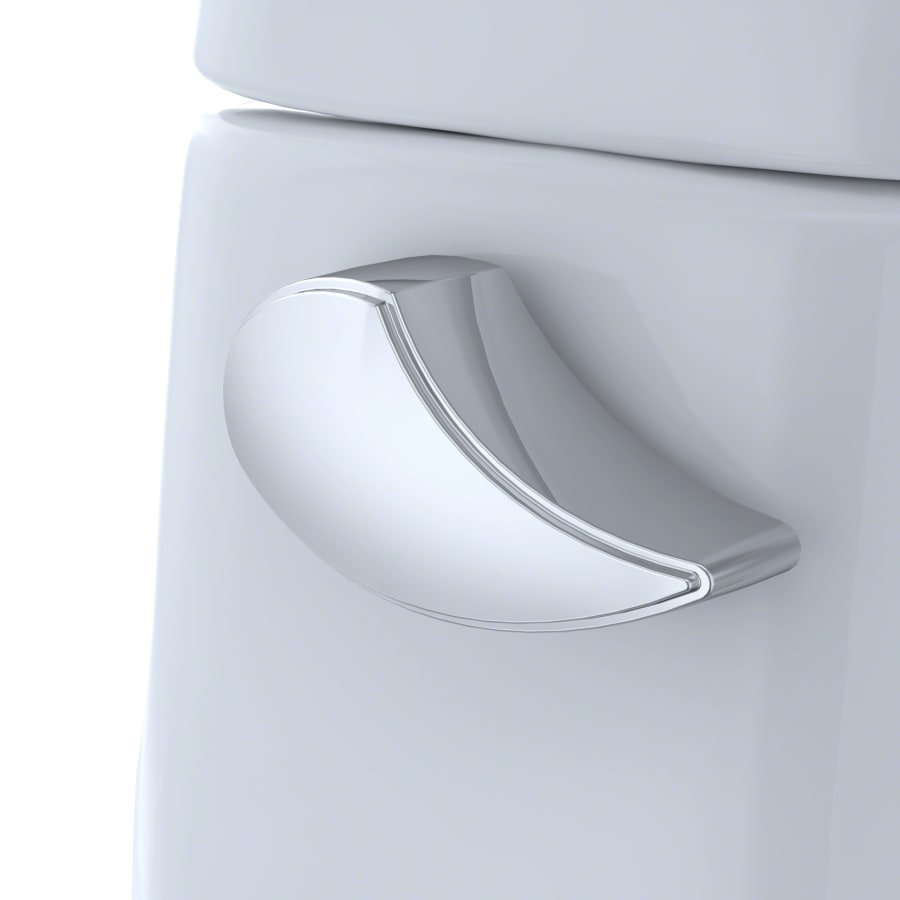

| Trip Lever Placement | Left |
| Trip Lever Finish | Chrome |
| Approved for Commercial Use | No |
| Collection | Ulitmate |
| Manufacturer Warranty | 1 Year Limited |
| ADA | No |
| ASSE Code | A112.19.2 |
| Certifications | UPC, ASME, CSA |
| CSA Code | B45.1 |
| CA Drought Compliant | No |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| TX Drought Compliant | No |
| Seat Included | Yes |
| Angle Supply Included | No |

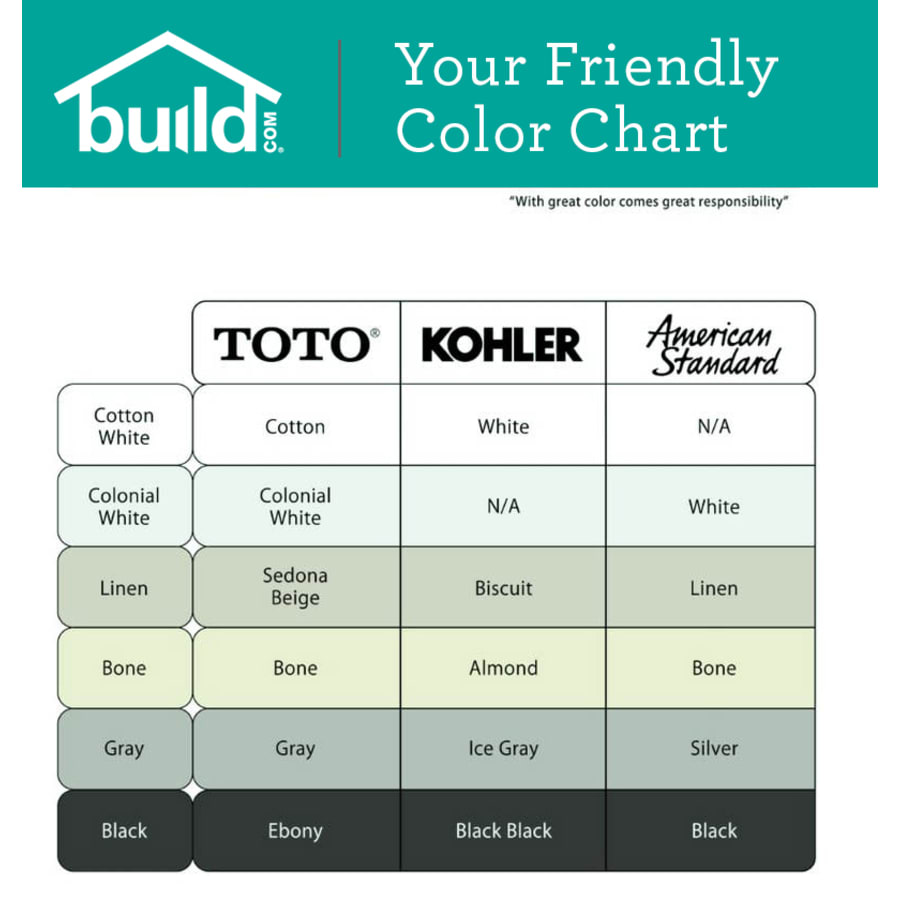

| Color | Bone, Colonial White, Cotton, Ebony, Gray, Sedona Beige |
| Color Tone | Greys, Neutrals, Whites |
