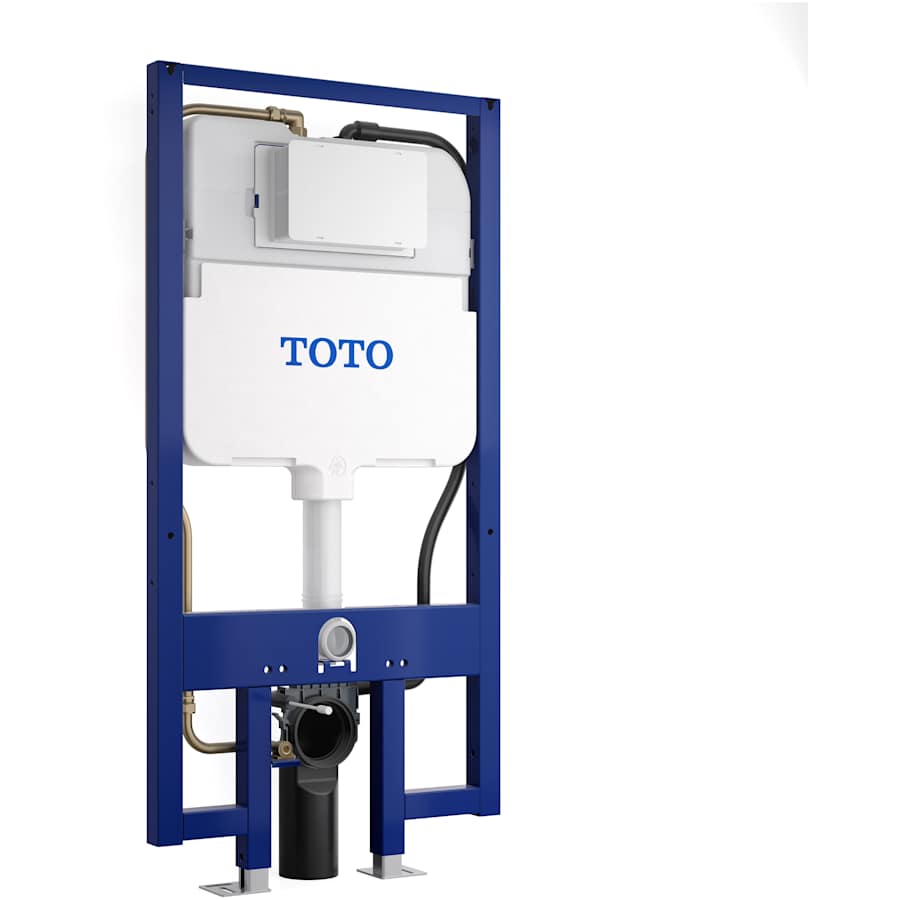

The TOTO NEOREST 1.2 or 0.8 GPF Dual Flush In-Wall Tank Unit is designed for use with the NEOREST WX1 or WX2 wall-hung toilet and top unit. The in-wall unit provides you with the opportunity to save up to 9 inches of floor space within your bathroom. The NEOREST in-wall tank unit is auto flush capable and provides a dual flush option for the right amount of flush for the required job. You can select between a 0.8 or a 1.2 gallons per flush with a push of a button. The harness of the NEOREST in-wall tank unit allows you to select a mounting height of 15 to 19 inches. This provides the opportunity for you to establish a comfortable bowl height for a wide array of individuals. The in-wall unit can support up to 880lbs when installed properly. The kit includes a copper water supply line and a 2” x 6” polyethylene waste outlet for installation within a 2” x 6” stud setting. If you require installation within a 2” x 4” setting, you have the option to purchase TOTO’s 2” x 4” PVC outlet kit. The NEOREST toilet bowl, top unit, and push button plate are sold separately.
TOTO WT175MA Features:
Covered under TOTO’s 1 year limited warranty
Coordinates with products from the Neorest line seamlessly
Tank only configuration
Saves up to 9 inches of floor space within your bathroom
Adjustable toilet bowl mounting height of 15 to 19 inches
In-wall installation
Constructed of stainless steel ensuring durability and dependability
Premier finishing process – finishes will resist corrosion and tarnishing through everyday use
All hardware required for installation is included
TOTO WT175MA Specifications:
Overall Height (Adjustable): 45-11/16″ – 50-3/8″ (bottom of the base to the highest point on the toilet)
Overall Depth: 3-1/2″ (furthest point back to front of toilet)
Overall Width: 22-7/8″ (furthest point left to furthest point right)
Flow Rate: 0.8 / 1.2 gallons-per-flush
Additional TOTO Links
View the Manufacturer Warranty
Browse all TOTO Products
TOTO Neorest Collection
Specifications
| Depth | 3.5 in. |
| Height | 45.6875, 46, 47, 48, 49, 50, 50.375 in. |
| Width | 22.875 in. |
| Gallons Per Flush | 0.8, 1.2 |
| Material | Stainless Steel |
| Thermostat | Modern |
| Configuration | Tank Only |
| Water Efficient | Yes |
| Flush Type | Gravity Flush |
| Collection | Neorest |
| Approved for Commercial Use | Yes |
| Certifications | ASME, ASSE, CSA |
| Manufacturer Warranty | 1 Year Limited |
| Commercial Warranty | 1 Year Limited |
| ASSE Code | A112.6.2 |
| CA Drought Compliant | Yes |
| CSA Code | B125.3 |
| TX Drought Compliant | Yes |
