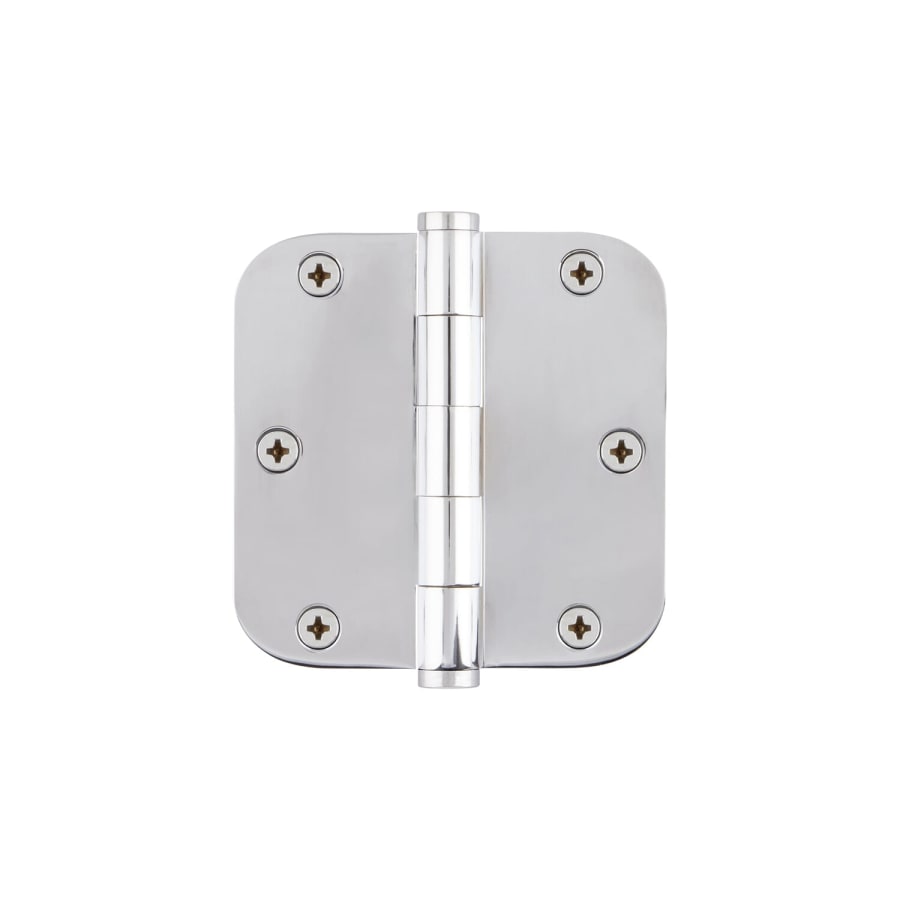

Viaggio 3.5″ x 3.5″ Solid Brass 5/8″ Radius Corner Residential Mortise Butt Hinge with 6 Hole Arc Pattern and Button Tips

Designed to support the weight of your door, our Viaggio Solid Brass Door Hinges with Button tips are made with solid, forged brass giving you a modern look without compromising durability. The button tips add a touch of sleek and help modernize any home. Available in 5 finishes, making it easy to match any of your Viaggio door hardware.

Features:

Sold as Single Hinge with loose removable hinge pin and screws for easy installation
Lifetime mechanical warranty
Solid forged brass
Butt style hinge
Residential strength
Removable Pin: Yes
Wood Screws Included
5/8″ Radius Corners
Arc Hole Pattern (6 hole)

Specifications:

3.5 Inch Height
3.5 Inch Width
Made from Solid Brass
Mount: Mortise
Gauge: 0.086″ (Thickness of Hinge Brass)
5 Knuckles
6 Screw Holes

Product Technologies:

Plain Bearing Hinge: Plain bearing hinges feature knuckles that are machined to a smooth surface, allowing them to move against one another without bearings. Plain bearing hinges are not recommended for heavy use on high traffic entrance ways, but meet the need of a standard residential door.
Material – Solid Brass: Solid brass is made from copper and zinc and is prized for its resilience, durability, and beauty. Solid brass can always be polished back to its original sheen and is highly resistant to rusting. Solid brass is often available in finishes that other hinge materials are not.
Mounting: The standard corners for mortised door hinges are 1/4″ radius, 5/8″ radius and square corner. It is recommended that three hinges be used on doors up to and including 7.5 feet with one additional hinge for each additional 2.5 feet. Make sure you check your current hinges before making a purchase.
