Viaggio hardware is made in Europe and hand-assembled in the US. Each piece is created from solid-forged brass, and then precision polished for the sleekest looks. All Viaggio Hardware comes standard with luxury concealed screw mechanism for a clean installation, leaving no visible fasteners.

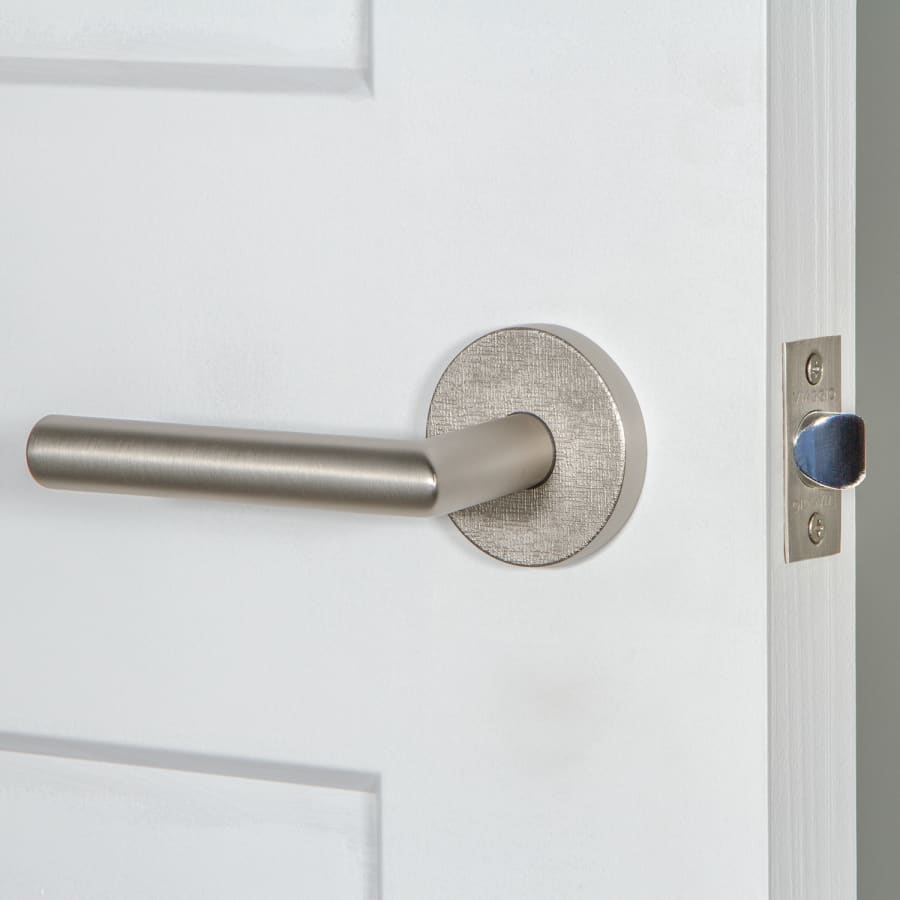

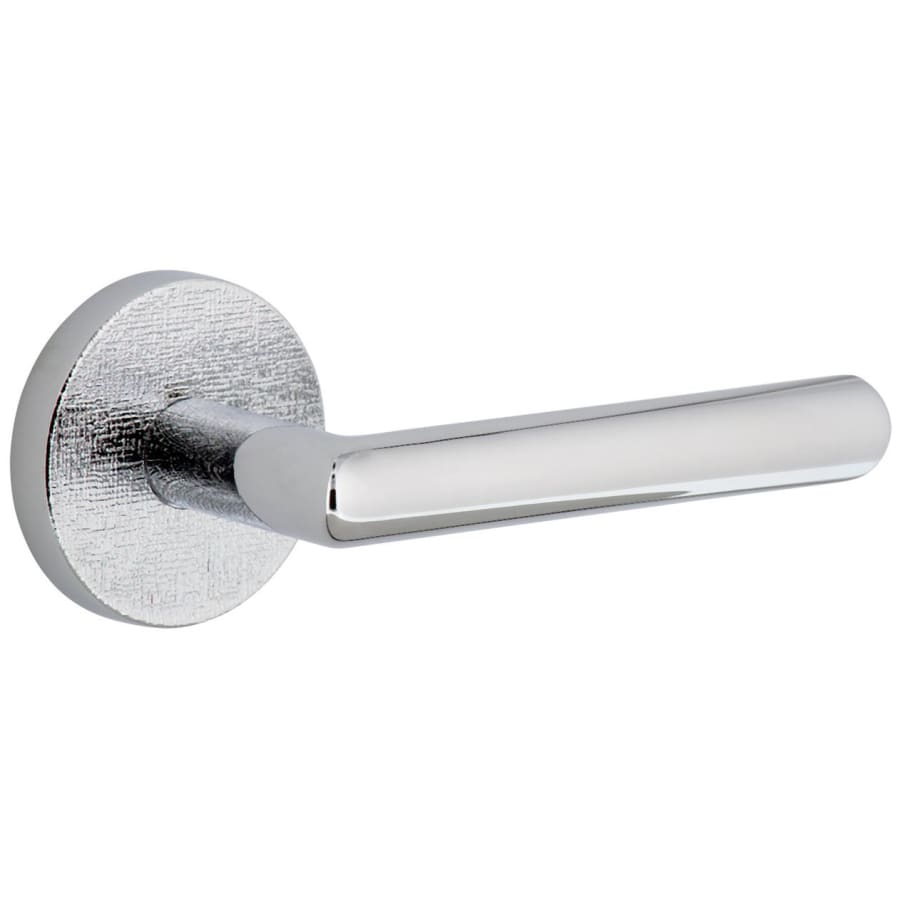

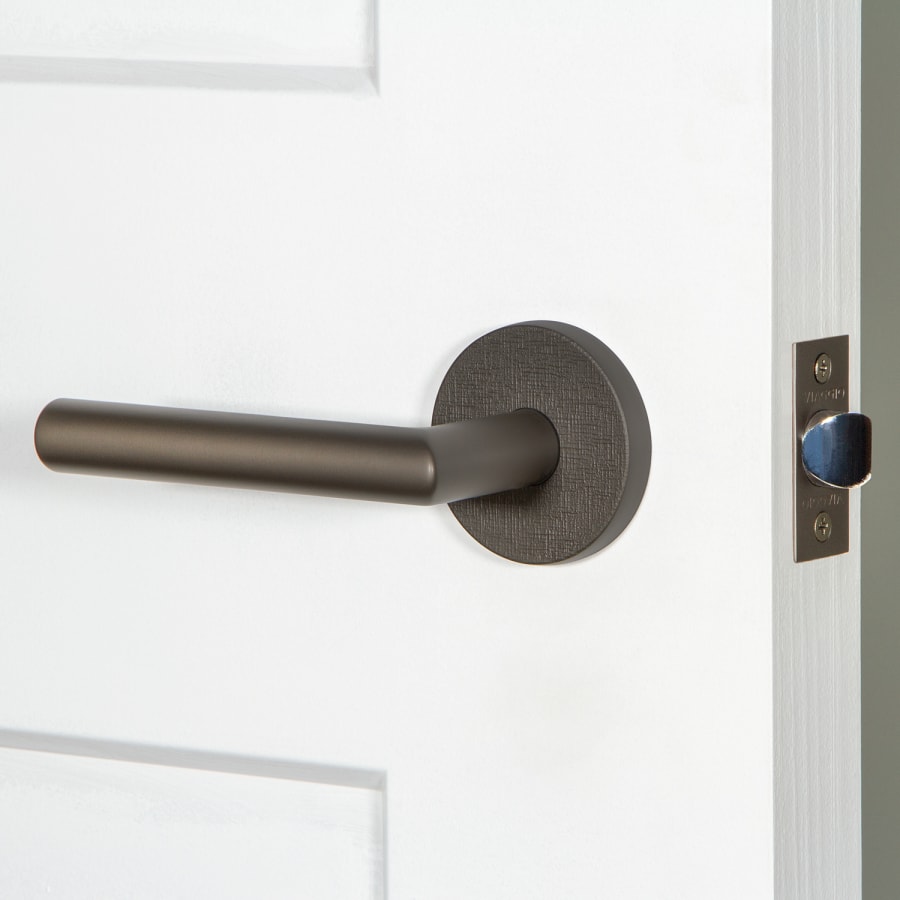

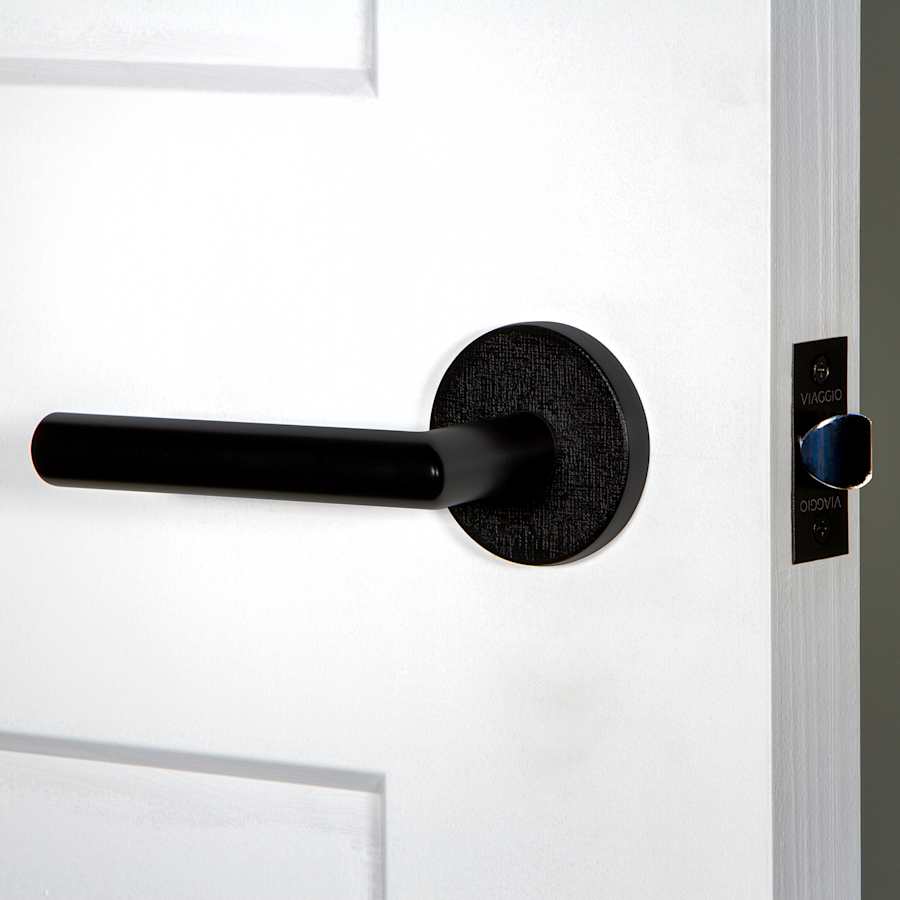

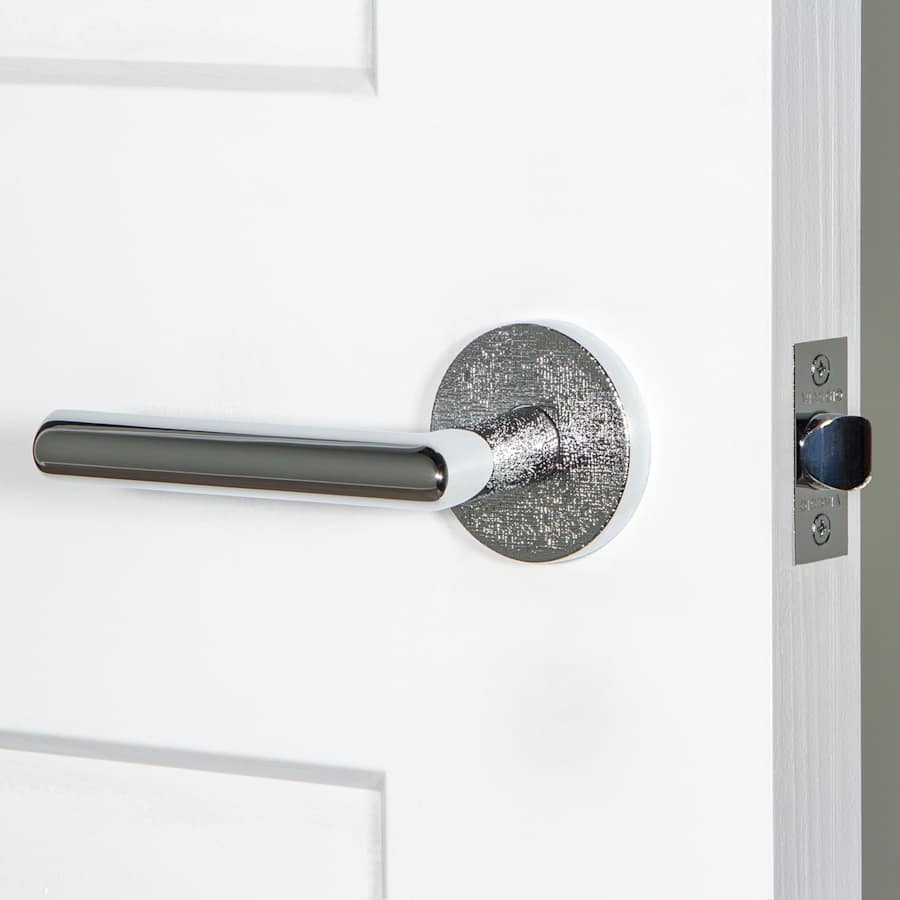

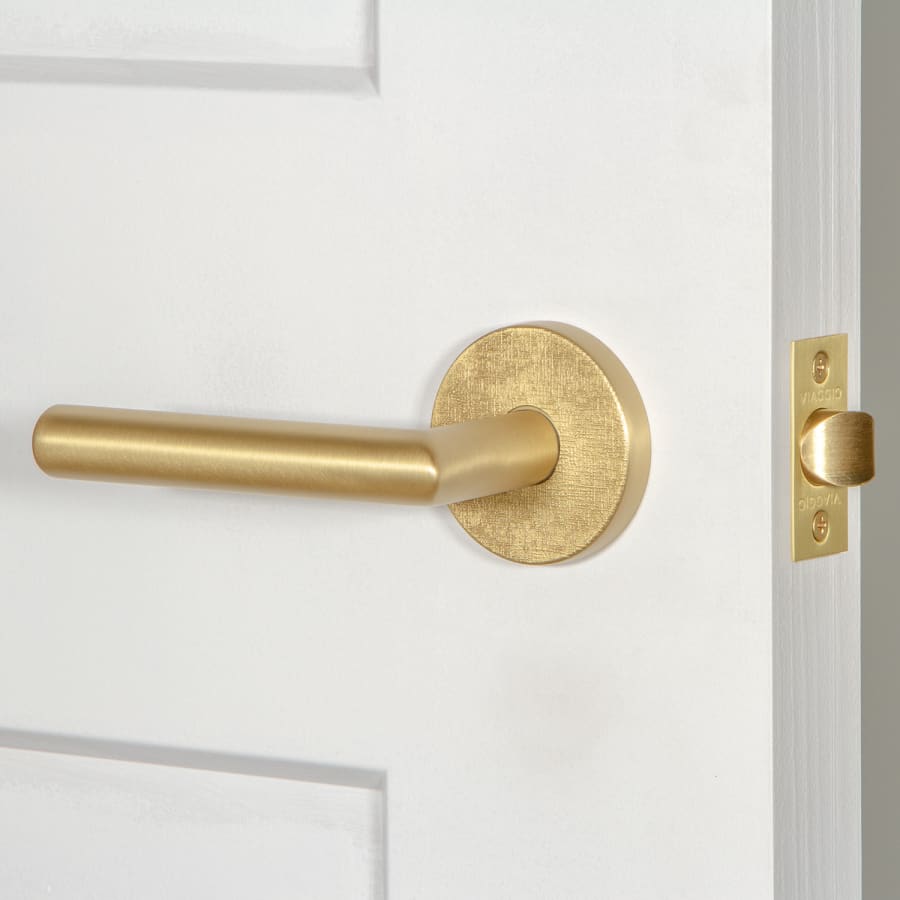

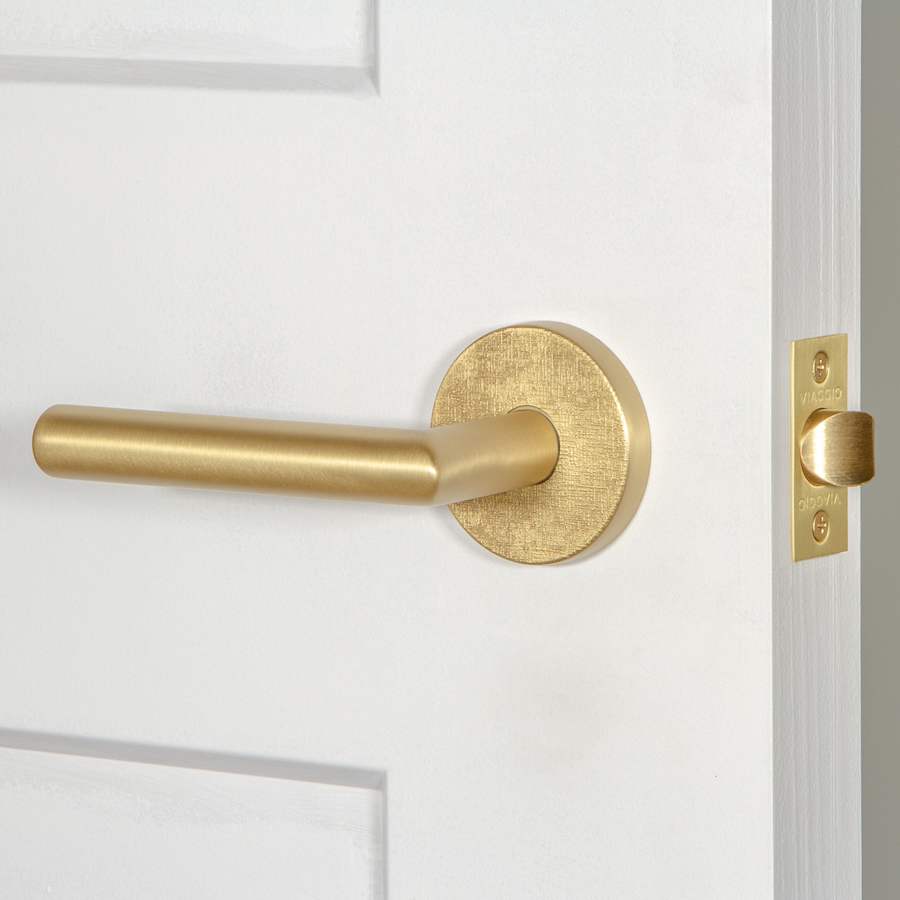

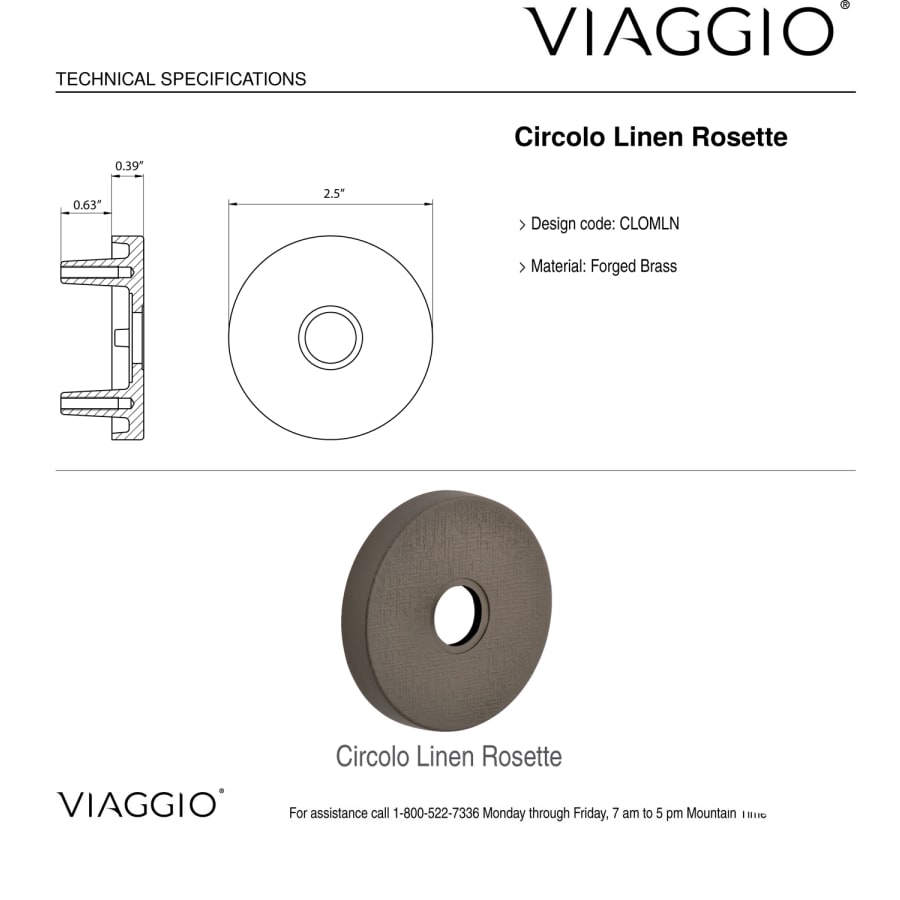

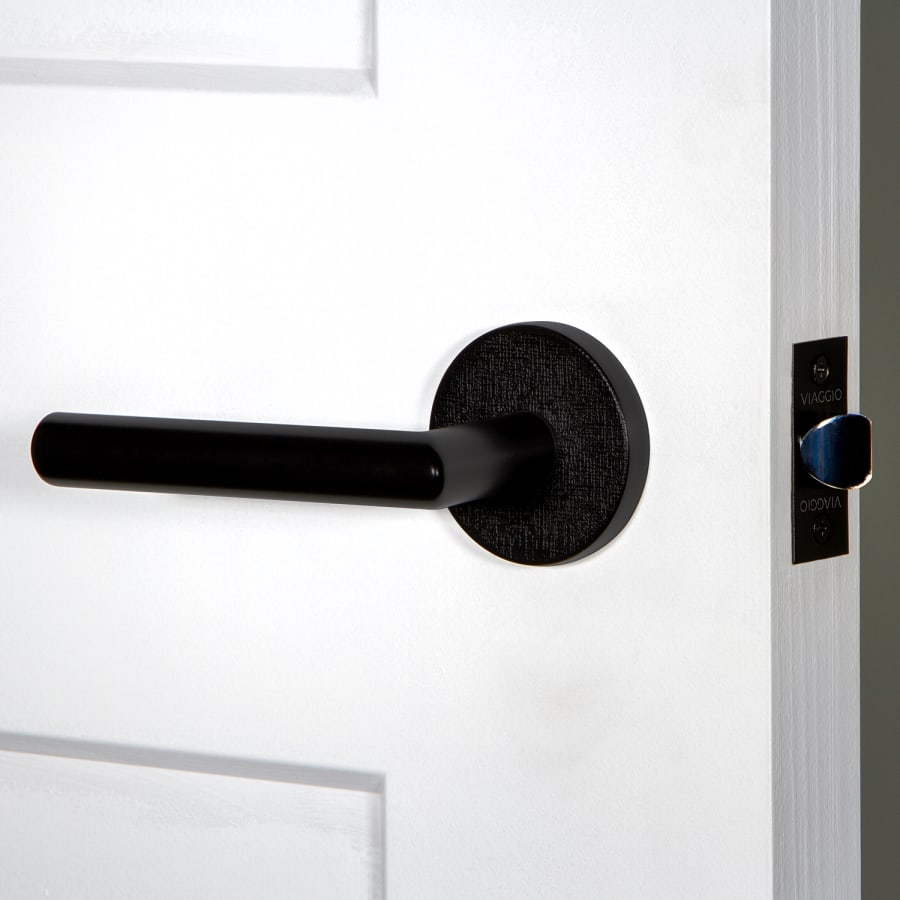

The Circolo Rosette’s soft geometry offers a stunning look with cultured elegance. The bold curves and circular shape add class to contemporary settings. The linen texture recollects a fabric favored by travelers for over a century, as well as an artist’s canvas. Add the purity and classic tubular design of the Moderno lever to convey simplicity and efficiency in any environment. All Viaggio products are made with longevity and durability in mind so they can be enjoyed for generations to come.
Privacy: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.
Features:
Made from solid forged brass and precision polished for superior quality
Features concealed screw mechanism (CSM) for clean, uncomplicated style with no visible screws
Includes a complete set for both sides of one door
Easy to install and works with modern pre-drilled doors
Lifetime mechanical warranty
Comes with all necessary mounting hardware
Includes:
Knob and plate assemblies
One (1) strike plate with two (2) wood screws
One (1) square corner faceplate
One (1) latch
One (1) plastic anti-rotation block
One (1) CSM sub plate
One (1) CSM spindle
One (1) plastic brass bushing
One (1) bushing tool
One (1) nylon washer
One (1) hex wrench
One (1) privacy release key
One (1) privacy pin and extender
Mounting hardware
Specifications:
Backset: 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-5/8″
Handing: Right
Handle Length: 5-1/8″
Handle Projection: 2-1/8″
Trim Width: 2-1/2″
Trim Height: 2-1/2″
Product Weight: 4.25 lbs
Latch Faceplate: Square Corner
Additional Viaggio Links
View the Manufacturer Warranty
Browse all Viaggio Products
Viaggio Motivo Collection
Specifications
| Product Weight | 4.25 lbs. |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8" |
| Backset | 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 5.125 in. |
| Handle Projection | 2.12 in. |
| Trim Height | 2.5 in. |
| Trim Width | 2.5 in. |
| Material | Brass |
| Thermostat | Modern |
| Handshower | Right |
| Function | Privacy |
| Handle Style | Lever |
| Handle Material | Brass |
| Concealed Screws | Yes |
| Latch Faceplate | Square Corner |
| Lever Shape | Straight |
| Rosette Shape | Round |
| Locking Mechanism | Trim Lock |
| Solid Construction | Solid Brass |
| Trim Design | Circolo Linen |
| Handle Design | Moderno Lever |
| Collection | Motivo |
| Approved for Commercial Use | No |
| Country Of Origin | USA |
| Fire Rated | No |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| Series | Circolo Linen |
| Made in America | Yes |
| Color | Bright Chrome, Satin Black, Satin Brass, Satin Nickel, Titanium Gray |
| Color Tone | Blacks, Brass Tones, Greys, Nickel Tones, Silver Tones |
