Viaggio hardware is made in Europe and hand-assembled in the US. Each piece is created from solid-forged brass, and then precision polished for the sleekest looks. All Viaggio Hardware comes standard with luxury concealed screw mechanism for a clean installation, leaving no visible fasteners.

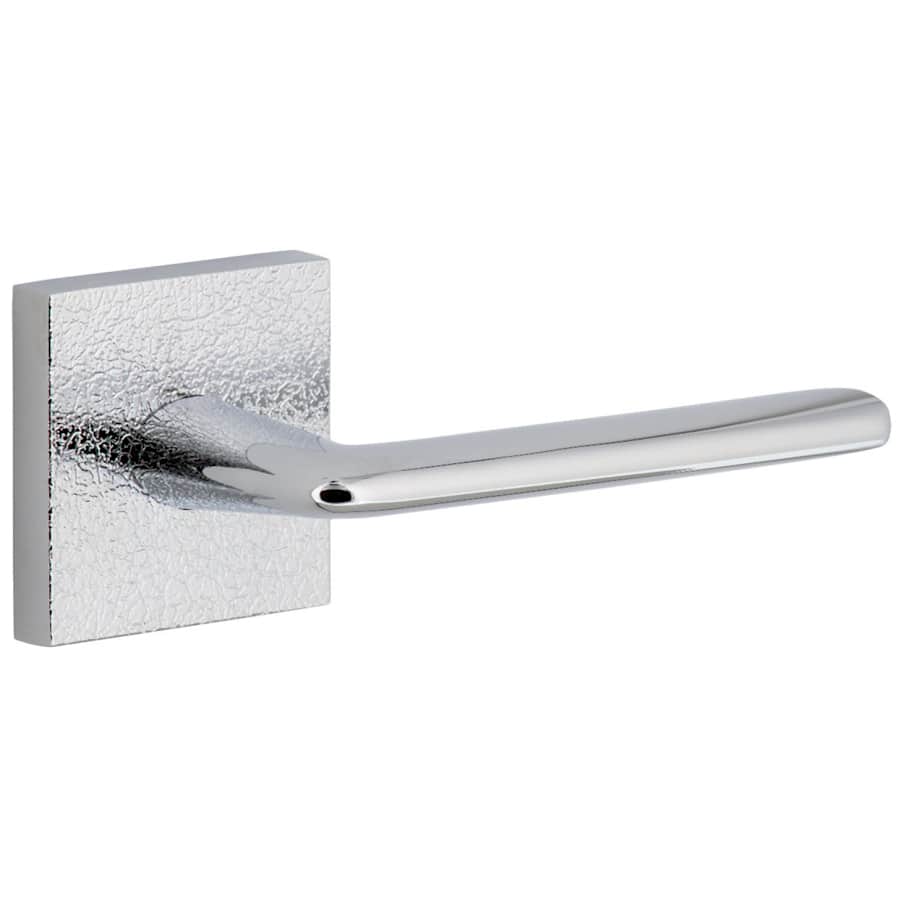

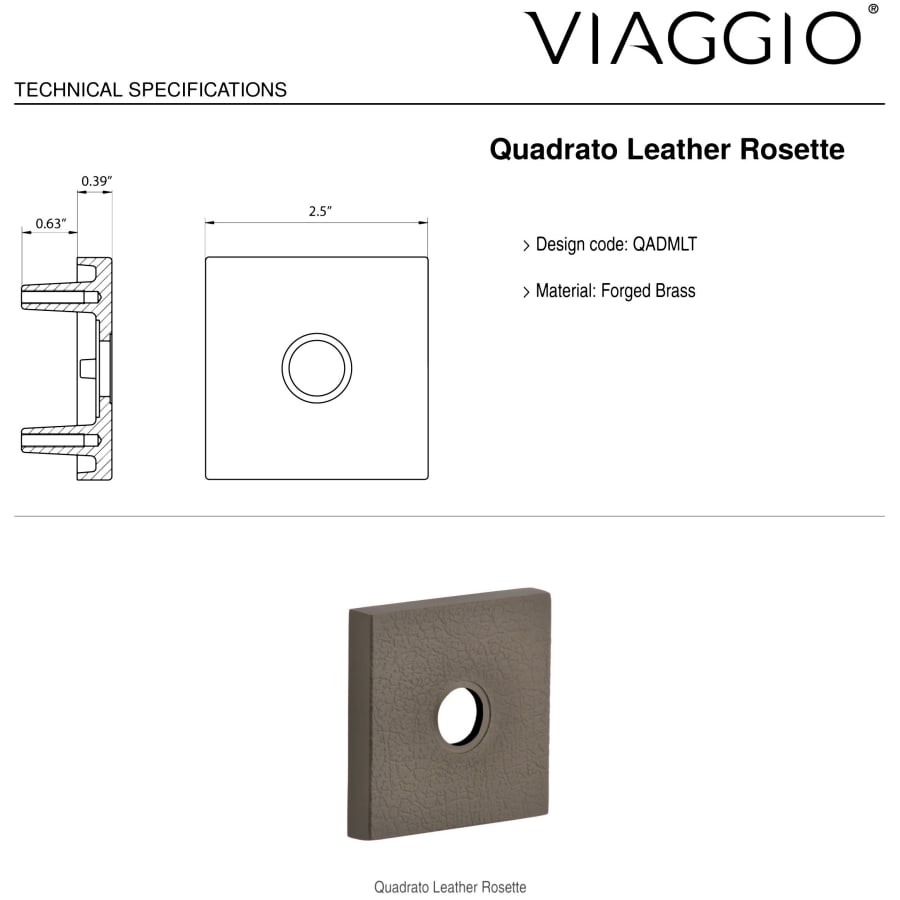

The precise lines of the Quadrato Rosette provide a crisp display of modern simplicity. With meticulous corners and mathematical symmetry, this square rosette gains depth and subtle flair from its organic leather texture. Add visual as well as tactile interest with the Brezza lever, which has a shape similar to an airplane wing. All Viaggio products are made with longevity and durability in mind so they can be enjoyed for generations to come.
Passage: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Features:
Made from solid forged brass and precision polished for superior quality
Features concealed screw mechanism (CSM) for clean, uncomplicated style with no visible screws
Includes a complete set for both sides of one door
Easy to install and works with modern pre-drilled doors
Lifetime mechanical warranty
Comes with all necessary mounting hardware
Includes:
Knob and plate assemblies
One (1) strike plate with two (2) wood screws
One (1) faceplate
One (1) latch
One (1) plastic anti-rotation block
One (1) CSM subplate
One (1) CSM spindle
One (1) plastic brass bushing
One (1) bushing tool
One (1) nylon washer
One (1) hex wrench
Mounting hardware

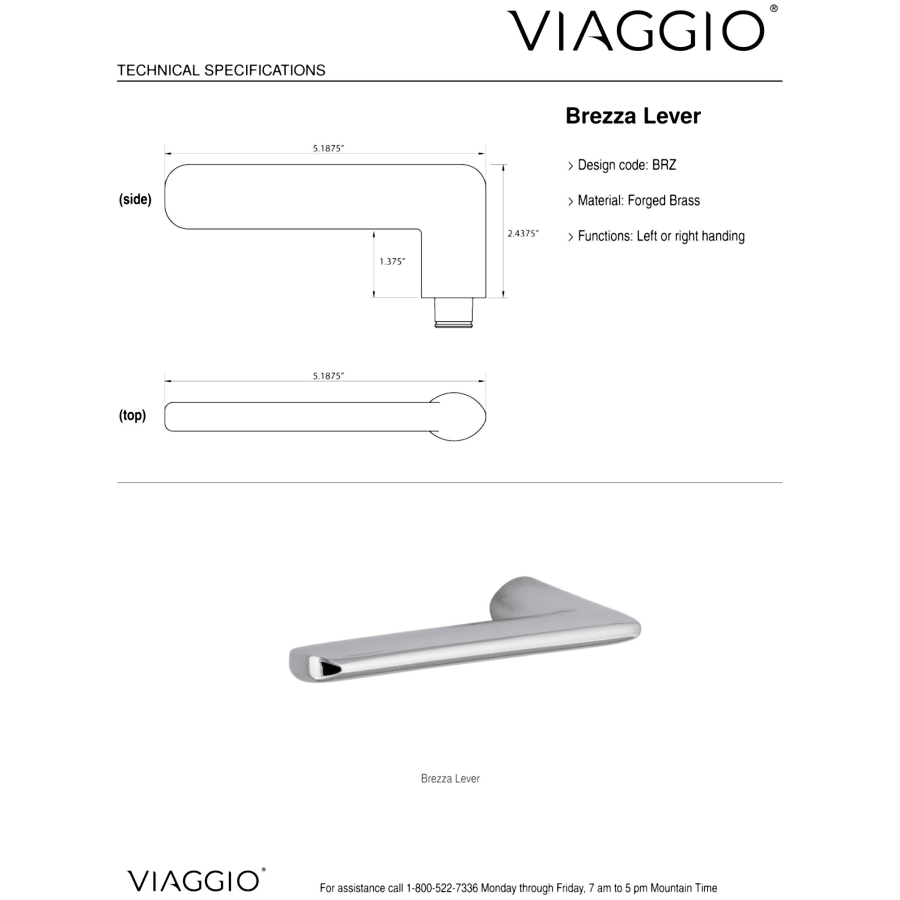

Specifications:
Backset: 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Right
Handle Length: 5-3/16″
Handle Projection: 2-7/16″
Trim Width: 2-1/2″
Trim Height: 2-1/2″
Product Weight: 4.25 lbs
Latch Faceplate: Square Corner
Additional Viaggio Links
View the Manufacturer Warranty
Browse all Viaggio Products
Viaggio Motivo Collection
Specifications
| Characteristics | Leather |
| Thermostat | Modern |
| Function | Passage |
| Material | Brass |
| Handshower | Right |
| Handle Style | Lever |
| Concealed Screws | Yes |
| Handle Material | Metal |
| Handle Design | Brezza |
| Latch Faceplate | Square Corner |
| Trim Design | Quadrato Leather |
| Solid Construction | Solid Brass |
| Rosette Shape | Square |
| Lever Shape | Straight |
| Collection | Quadrato Leather |
| Series | Motivo |
| Approved for Commercial Use | No |
| ADA | No |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime |
| Made in America | Yes |
| Fire Rated | No |
| Product Weight | 4.25 lbs. |
| Backset | 2-3/4", 2-3/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.4375 in. |
| Trim Height | 2.5 in. |
| Trim Width | 2.5 in. |
| Handle Length | 5.1875 in. |
| Color | Bright Chrome |
| Color Tone | Silver Tones |
