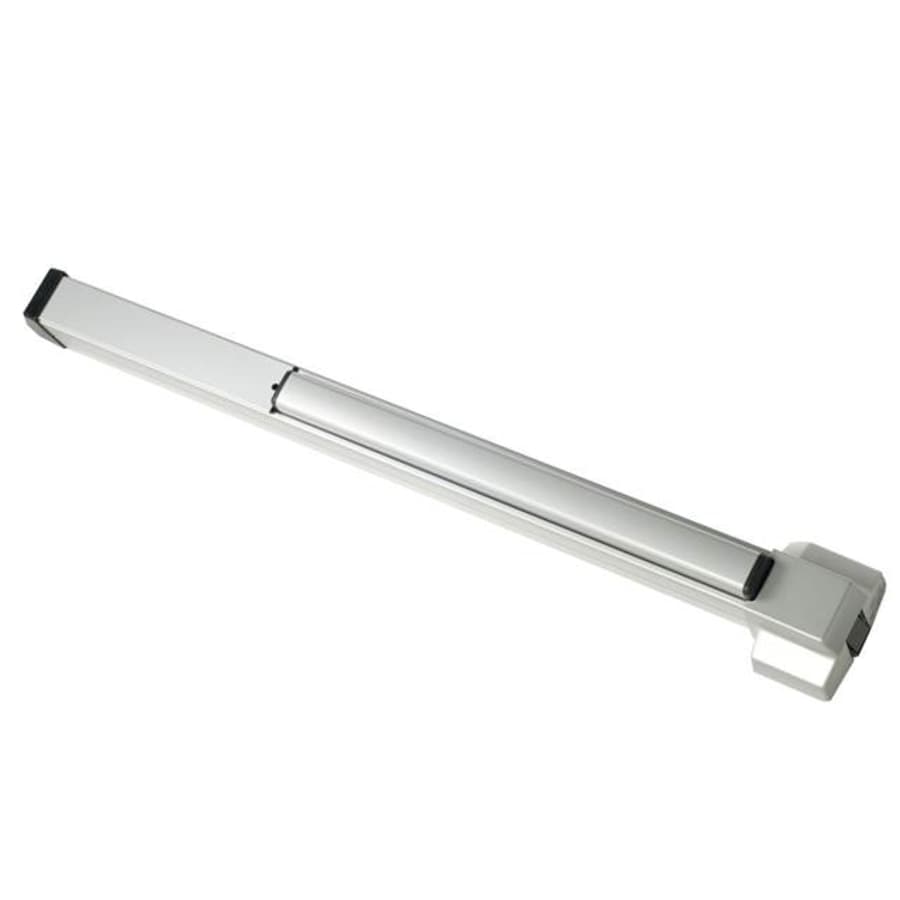

Rim Mounted Exit Device from the 22 Series
Add both security and convenience to your workplace, school or other facility with Von Duprin’s top of the line exit devices. Exit devices are a critical part of the Fire and Life Safety egress system and will provide safe and reliable service when properly applied and maintained. Series 22 exit devices are the economical alternative, incorporating a modern touchbar styling for a variety of doors. The 22EO is a rim device for all types of single and double doors that include a mullion.
Over the years, Von Duprin has been an innovator in many new concepts to the industry. Currently, Von Duprin manufactures the widest range of exit devices and outside trim operations, all designed to meet the needs of architects and building owners.
UL listed for accident hazard installations
ANSI A156.3, 2001, Grade 1
Non-handed for your convenience
Fits door stiles as narrow as 3-5/8″ (97mm)
Field sizable
5/8″ throw latch bolt
Available in 3′ (this model) and 4′ (22EO4) lengths
Neutral Touchbar Projection: 3-3/4″
Depressed Touchbar Projection: 3″
Hex key dogging
Includes strike set for installation
Additional Von Duprin Links
Browse all Von Duprin Products
Von Duprin 22 Collection
Specifications
| Height | 4.25 in. |
| Depth | 3.75 in. |
| Width | 33.5 in. |
| Door Thickness | 1-3/4" |
| ADA | Yes |
| Certifications | UL |
| Approved for Commercial Use | Yes |
| Fire Rated | No |
| BHMA Certification | Grade 1 |
| Handshower | Left, Reversible, Right |
| Panic Proof | Yes |
| Exit Trim Function | Exit Only |
| Exit Device Type | Rim Device |
| Color | Lacquer Sprayed Aluminum, Sprayed Duranodic |
| Color Tone | Neutrals |
