Features:

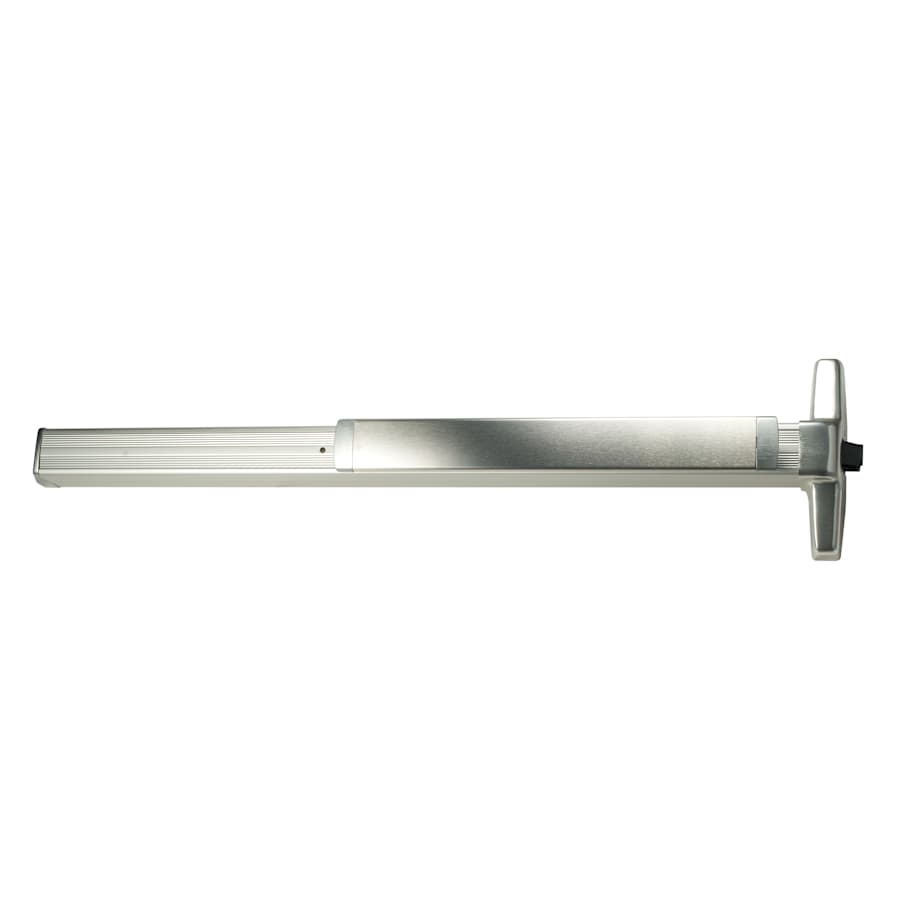

Rim Device for Single and Double Doors with Mullion Applications
UL Listed for Panic Exit Hardware
33A Series Devices Have Grooved Case
Rim Device is Non-Handed Except when Single Switch Option is Used
Ships with 1439 Roller Strike Standard
Fits Door Styles as Narrow as 1-3/4″
Product Specifications:
Device Length: 4′
For Use on 2’10” to 4′ Sized Doors
Center Case Dimensions: 8-3/16″ x 1-9/16″ x 2-13/32″
Mechanism Case Dimensions: 2-1/4″ x 2-1/4″
Push bar Neutral Projection: 3-13/16″
Push bar Depressed Projection: 3-1/16″
Latch Bolt: Deadlocking 3/4″ Throw
Includes: Screw Pack for 1-3/4 to 2-1/4″ Thick Metal or Wood Doors
ANSI A156.3-2001 Grade 1
Additional Von Duprin Links
Browse all Von Duprin Products
Von Duprin 33A Collection
Specifications
Dimensions and Measurements
| Width | 8.1875 in. |
| Length | 48 in. |
| Door Thickness | 1-3/4" |
| Projection | 3.8125 in. |
| Max Door Width | 48 in. |
Warranty and Product Information
| ADA | Yes |
| Collection | 33A |
| Approved for Commercial Use | Yes |
| Certifications | ANSI, UL |
| ANSI Certification | A156.3 |
| BHMA Certification | Grade 1 |
| Fire Rated | No |
Characteristics and Features
| Handshower | Left, Reversible, Right |
| Panic Proof | Yes |
| Exit Device Type | Rim Device |
| Exit Trim Function | Exit Only |
| Color | Satin Chrome |
| Color Tone | Silver Tones |
