Product Features:
BHMA Grade 1 rated exit device

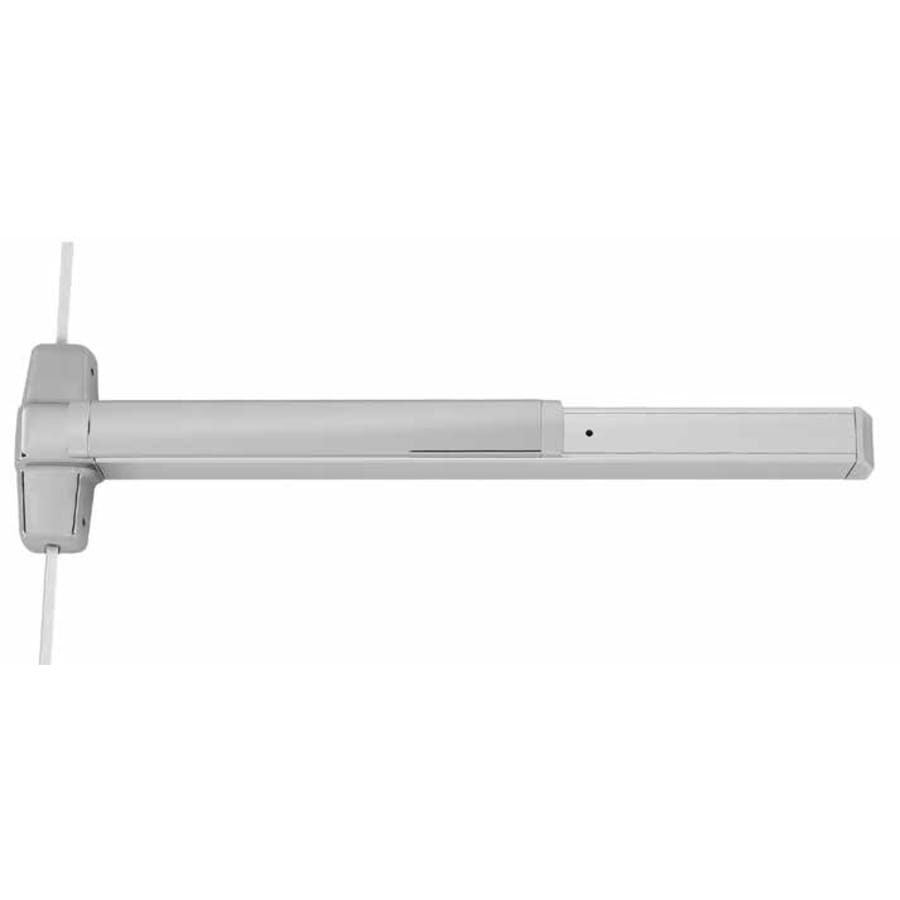

4′ exit device
Covered under manufacturer’s 3 year limited warranty
1-1/2 or 3 hour fire rating (depending on installation)
Exit only function – Exterior trim sold separately
Product Specifications:
ANSI Certification: A156.3
BHMA Certification: Grade 1
Cylinder Type: Single Cylinder

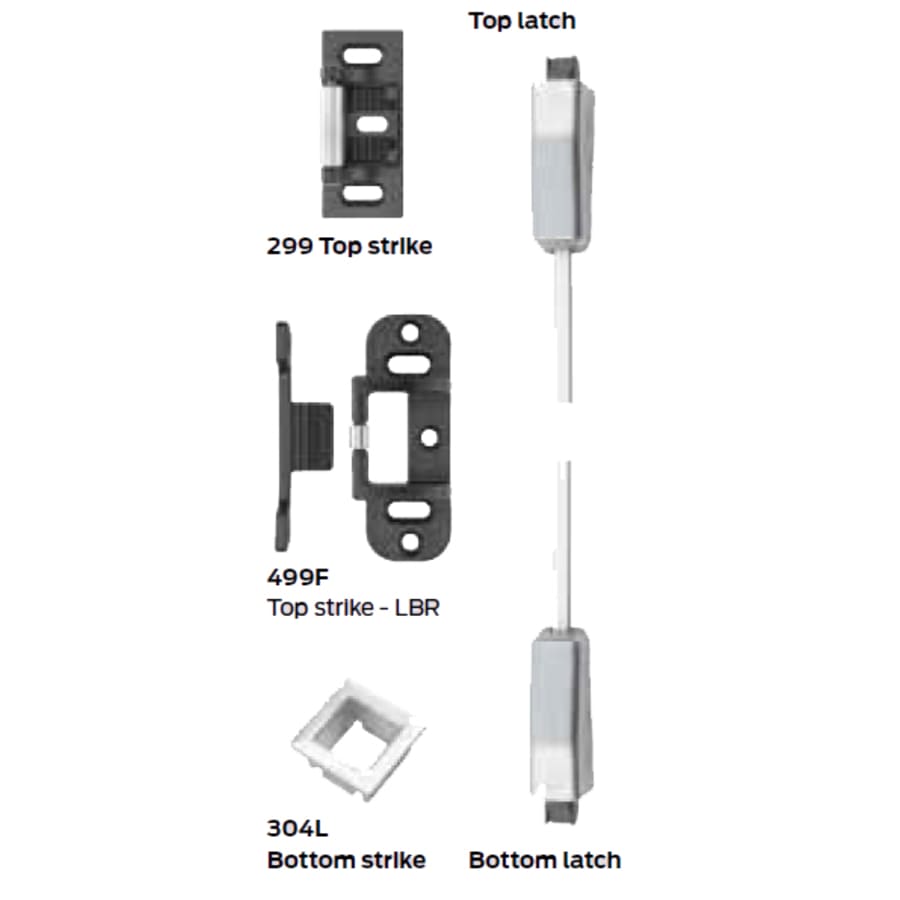

Exit Device Type: Vertical Rod Device
Exit Trim Function: Exit Only
Fire Rated: Yes
Handing: Reversible
Projection: 3-13/16″
UL Listed: Yes
Width: 4′
Additional Von Duprin Links
Browse all Von Duprin Products
Von Duprin 98 Collection
Specifications
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Series | 98 |
| ADA | Yes |
| Manufacturer Warranty | 3 Year Limited |
| ANSI Certification | A156.3 |
| Certifications | ANSI, UL |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
Dimensions and Measurements
| Height | 8 in. |
| Width | 48 in. |
| Depth | 3.8125 in. |
| Door Thickness | 1-3/4" |
| Projection | 3.8125 in. |
Characteristics and Features
| Handshower | Left, Reversible, Right |
| Cylinder Type | Single Cylinder |
| Panic Proof | Yes |
| Exit Device Type | Vertical Rod Device |
| Exit Trim Function | Exit Only |
| Dogging | No Dogging |
| Color | Aged Bronze, Anodized Aluminum, Black, Bright Brass, Bright Chrome, Dark Bronze, Non Lacquered Bright Brass, Non Lacquered Satin Brass, Satin Brass, Satin Bronze, Satin Chrome, Satin Stainless Steel, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Neutrals, Nickel Tones, Silver Tones, Stainless Steel |
