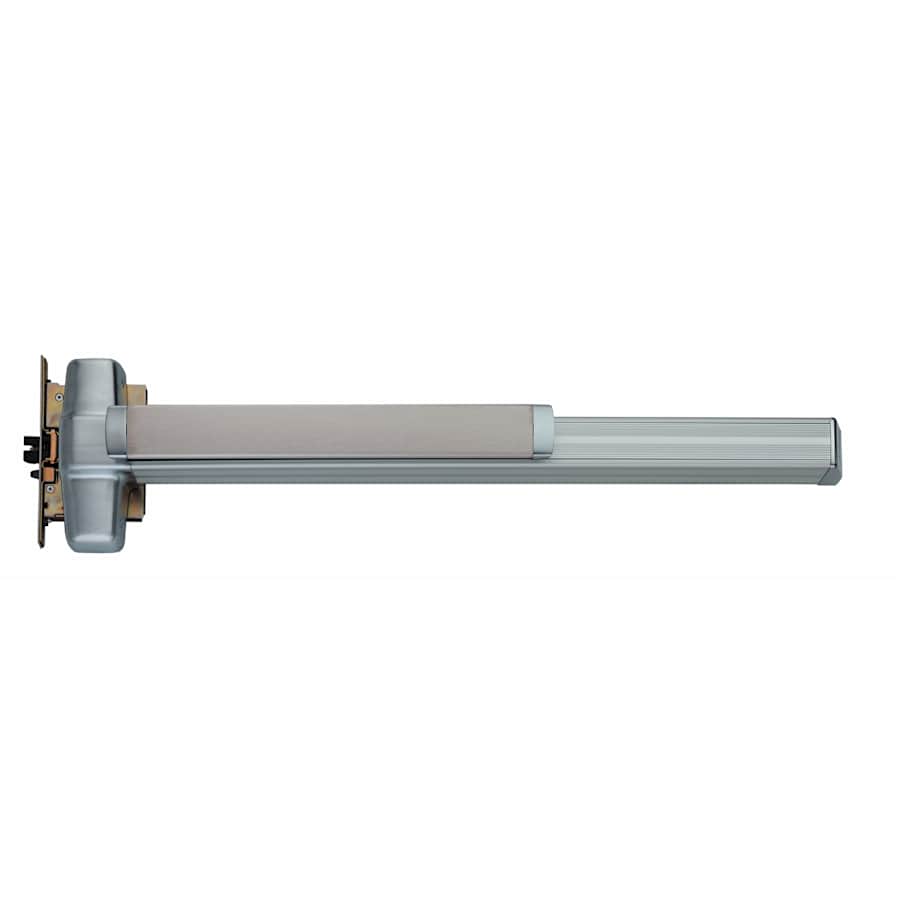

3′ Mortise Lock Exit Device from the 98 Series
Add both security and convenience to your workplace, school or other facility with Von Duprin’s top of the line exit devices. Exit devices are a critical part of the Fire and Life Safety egress system and will provide safe and reliable service when properly applied and maintained. 9975EO mortise lock devices can be installed on all types of single and double doors. They are compatible with the 7500 mortise lock, which is equipped with a 3/4″ anti-friction which is field reversible without removing the lock from the door. It has a nonhanded auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.
Over the years, Von Duprin has been an innovator in many new concepts to the industry. Currently, Von Duprin manufactures the widest range of exit devices and outside trim operations, all designed to meet the needs of architects and building owners.
For single and double doors
3′ device length
UL listed for Panic Exit Hardware
Fits door stiles as narrow as 4-3/4″ (121mm)
Hex key dogging
Comes with strike set and fasteners
Nonhanded
Features a grooved mechanism case
Available in several finishes
Additional Von Duprin Links
Browse all Von Duprin Products
Von Duprin 9975 Collection
Specifications
| Height | 8 in. |
| Width | 33 in. |
| Depth | 3.8125 in. |
| Door Thickness | 1-3/4" |
| Projection | 3.8125 in. |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Certifications | UL |
| BHMA Certification | Grade 1 |
| Fire Rated | No |
| Panic Proof | Yes |
| Exit Device Type | Mortise Lock Device |
| Exit Trim Function | Exit Only |
| Color | Anodized Duranodic, Polished Brass, Satin Aluminum, Satin Brass, Satin Bronze, Satin Chrome, Polished Chrome |
| Color Tone | Brass Tones, Bronze Tones, Neutrals, Silver Tones |
