Product Features:
BHMA Grade 1 rated exit device
3′ exit device
Covered under manufacturer’s 3 year limited warranty
3 hour fire rating

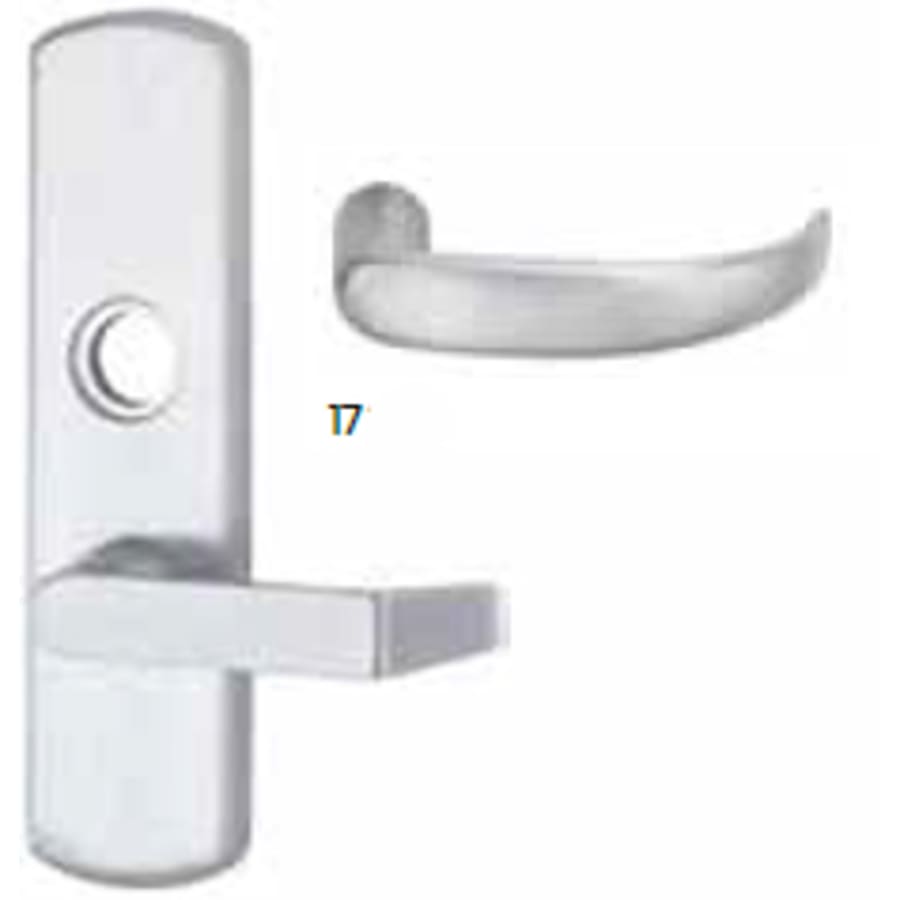

Includes keyed entry fail secure 17 electrified breakaway lever exterior trim
This device is ADA compliant and requires no more than 5 lbs of force to operate
Electrical fail secure enables latching when power is removed
Breakaway lever feature engages when the device is locked and more than 35 lbs of force is applied
Product Specifications:
Accessible Device: Yes
ANSI Certification: A156.3
BHMA Certification: Grade 1
Cylinder Type: Single Cylinder
Exit Device Type: Rim Device
Exit Trim Function: Night Latch
Fire Rated: Yes
Handing: Left Hand Reverse
Projection: 3-13/16″
UL Listed: Yes
Width: 3′
Additional Von Duprin Links
Browse all Von Duprin Products
Von Duprin 98 Collection
Specifications
| Width | 36 in. |
| Projection | 3.8125 in. |
| ADA | Yes |
| Certifications | ANSI, UL |
| Manufacturer Warranty | 3 Year Limited |
| Approved for Commercial Use | Yes |
| Series | 98 |
| ANSI Certification | A156.3 |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
| Handshower | Left Hand Reverse |
| Cylinder Type | Single Cylinder |
| Dogging | No Dogging |
| Exit Device Type | Rim Device |
| Exit Trim Function | Keyed Entry |
| Accessible Device | Yes |
| Color | Satin Chrome |
