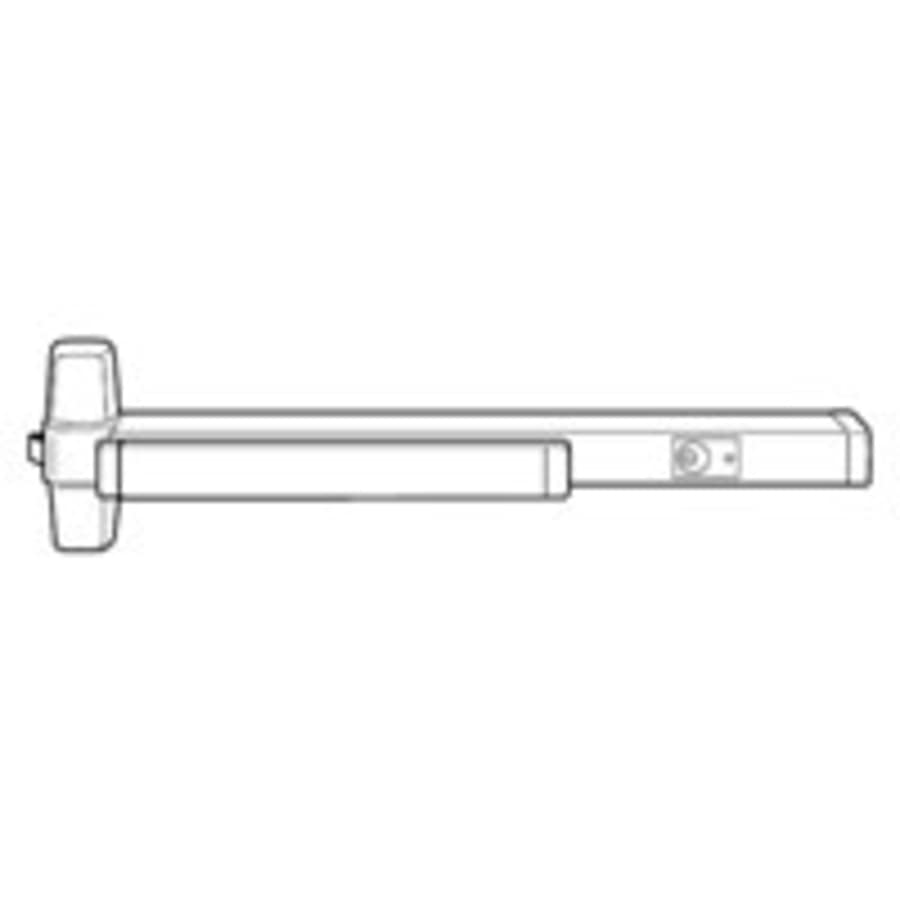

Von Duprin 3ft. Concealed Rim Exit Device from the Chexit Series

3′ Concealed Rim Exit Device from the Chexit Series

Add both security and convenience to your workplace, school or other facility with Von Duprin’s top of the line exit devices. Chexit controlled exit devices are a critical part of an access system and will provide safe and reliable service when properly applied and maintained. When a Chexit is located in a public area, it can be desirable to limit false alarms. If the Nuisance Audible and Nuisance Delay options are set to off, the device will go into alarm as soon as the push pad is touched (when armed). Turning the Nuisance Delay on will require the push pad to be pressed for 2 seconds before the Chexit goes into alarm. If the Nuisance Audible and Nuisance Delay are both on, the alarm will sound as soon as the push pad is pressed, but the alarm sequence will stop unless the push pad is held for 2 seconds or more.

Over the years, Von Duprin has been an innovator in many new concepts to the industry. Currently, Von Duprin manufactures the widest range of exit devices and outside trim operations, all designed to meet the needs of architects and building owners.

For single and double doors
3′ device length
Includes request to exit (RX) switch
Field reversible
Adjustable top rod
Comes with strike set and fasteners
Internal horn
Includes 5/8″ (16mm) throw latch bolt
Latch bolt deadlocking
Features a grooved mechanism case
Nonhanded
Fire Alarm Input disables the Chexit immediately upon a fire alarm
Includes Indicator Lamp to determine the status of the device
